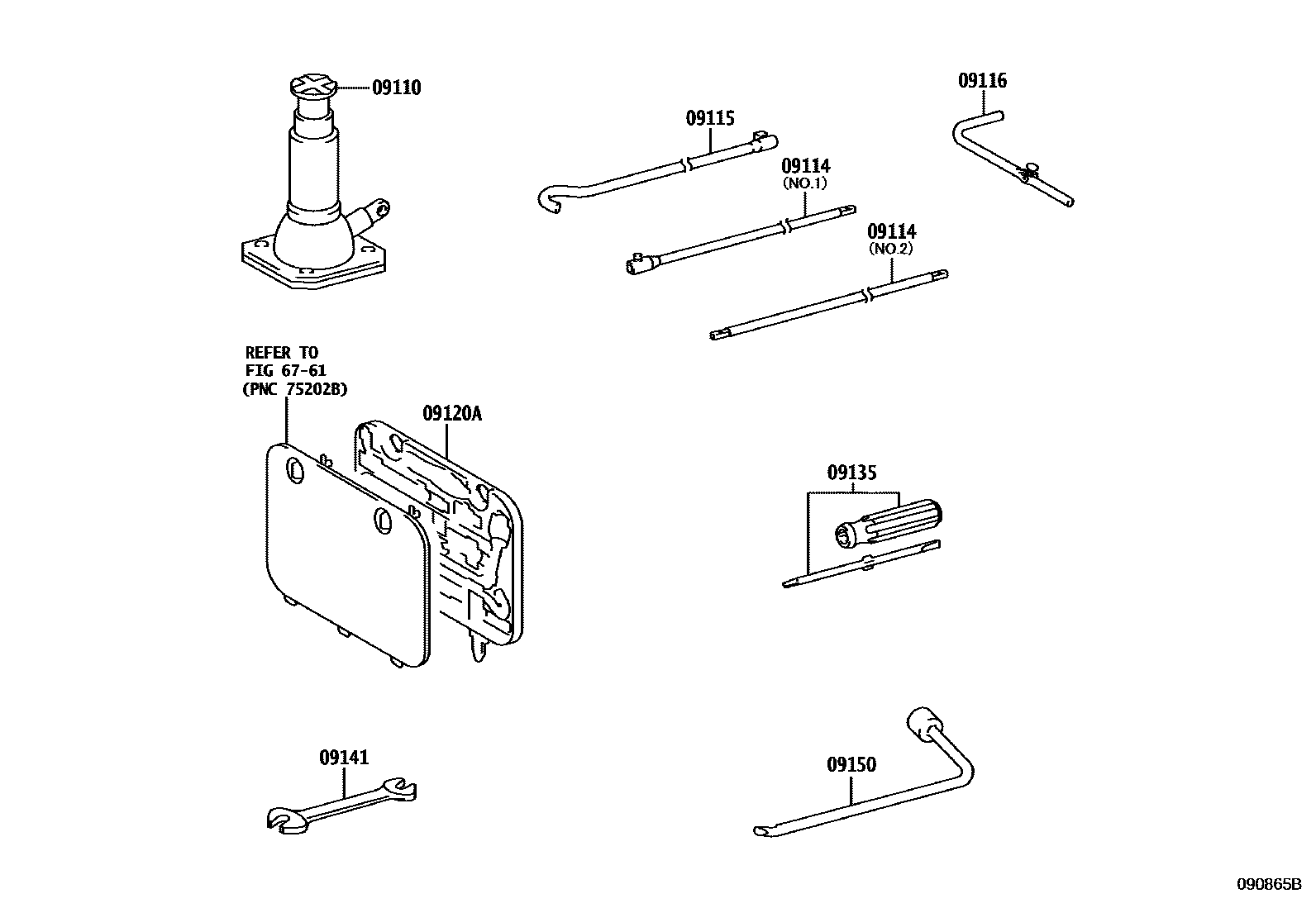

STANDARD TOOL

09110JACK ASSY

main09111-60131iGDJ150,GRJ150,KDJ150,LJ150,TRJ15#201708-202108

main09111-60132iGDJ150,GRJ150,LJ150,TRJ15#202109-202312

09114EXTENSION SUB-ASSY, JACK HANDLE

main09114-35040iGDJ150,GRJ150,KDJ150,LJ150,TRJ15#201708-202312

NO.2

main09114-35050iGDJ150,GRJ150,KDJ150,LJ150,TRJ15#201708-202312

NO.1

09115ROD SUB-ASSY, JACK HANDLE

main09115-35110iGDJ150,GRJ150,KDJ150,LJ150,TRJ15#201708-202312

09116LEVER, JACK HANDLE

main09116-35080iGDJ150,GRJ150,KDJ150,LJ150,TRJ15#201708-201709

main09116-60020iGDJ150,GRJ150,KDJ150,LJ150,TRJ15#201709-202208

09120ACASE, TOOL

main09120-60220iGDJ150,GRJ150,KDJ150,LJ150,TRJ15#201708-202312

09135DRIVER, SCREW

main09135-50060iGDJ150,GRJ150,KDJ150,LJ150,TRJ15#201708-202312

09141SPANNER

main99914-11214iGDJ150,GRJ150,KDJ150,TRJ150..GCC201708-202312

12 X 14

09150WRENCH, HUB NUT BOX

main09150-60040iGDJ150,GRJ150,KDJ150,LJ150,TRJ15#201708-202208

TOOL(PLANT INSTALL)-WITHOUT,TYPE A:REFER ILLUST.

6761

9 parts on this diagram · 1 diagram in section
