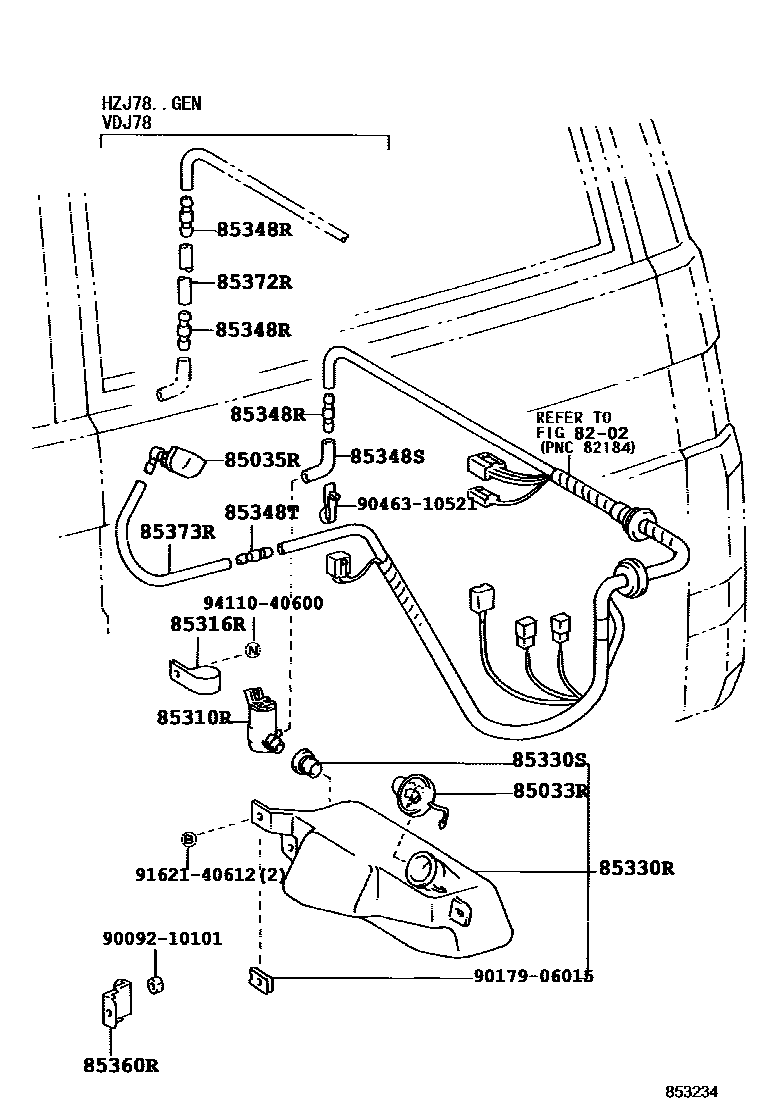

8202WIRING & CLAMP

→ Go to FIG 82-02

85033RCAP ASSY, REAR WASHER

main85033-36120i200701-201608

REAR WINDOW WIPER-WITH(INTERMITTENT)

85035RNOZZLE SUB-ASSY, REAR WASHER

main85391-60040i200701-201608

REAR WINDOW WIPER-WITH(INTERMITTENT)

85310RMOTOR ASSY, REAR WASHER

main85310-22080i201608-202309

REAR WINDOW WIPER-WITH(INTERMITTENT)

85316RSUPPORT, REAR WASHER MOTOR

main85316-23010i200701-201608

REAR WINDOW WIPER-WITH(INTERMITTENT)

85330RJAR ASSY, REAR WASHER

main85325-60040i202309-202409

REAR WINDOW WIPER-WITH(INTERMITTENT)

main85330-90K09i202309

REAR WINDOW WIPER-WITH(INTERMITTENT)

main85330-90K03i200701-201208

REAR WINDOW WIPER-WITH(INTERMITTENT)

85330SBUSH, REAR WASHER JAR

main90099-32089i200701-201608

REAR WINDOW WIPER-WITH(INTERMITTENT)

85348RJOINT, REAR WASHER HOSE, NO.1

main85349-89122×2i200701-201608

REAR WINDOW WIPER-WITH(INTERMITTENT)

85348SJOINT, REAR WASHER ELBOW, NO.1

main85355-14481i202309-202409

85348TJOINT, REAR WASHER HOSE, NO.2

main85349-89122i202309

REAR WINDOW WIPER-WITH(INTERMITTENT)

85360RBRACKET ASSY, REAR WASHER

main85361-90K01i200701-201608

REAR WINDOW WIPER-WITH(INTERMITTENT)

85372RHOSE, REAR WASHER (FROM JOINT TO JOINT OR NOZZLE)

main90446-06013i202309

L=1000(*H,L=675); L=1000(*H,L=675),REAR WINDOW WIPER-WITH(INTERMITTENT)

main90099-33080i202309

L=1450(*H,L=350),REAR WINDOW WIPER-WITH(INTERMITTENT)

85373RHOSE, REAR WASHER (FROM JOINT TO NOZZLE)

main90099-33299i200701-201608

L=1450(*H,L=230); L=1450(*H,L=230),REAR WINDOW WIPER-WITH(INTERMITTENT)

9009210101

main90092-10101

9017906015

main90179-06015

9046310521

main90463-10521

9162140612

main91621-40612

9411040600

main94110-40600
