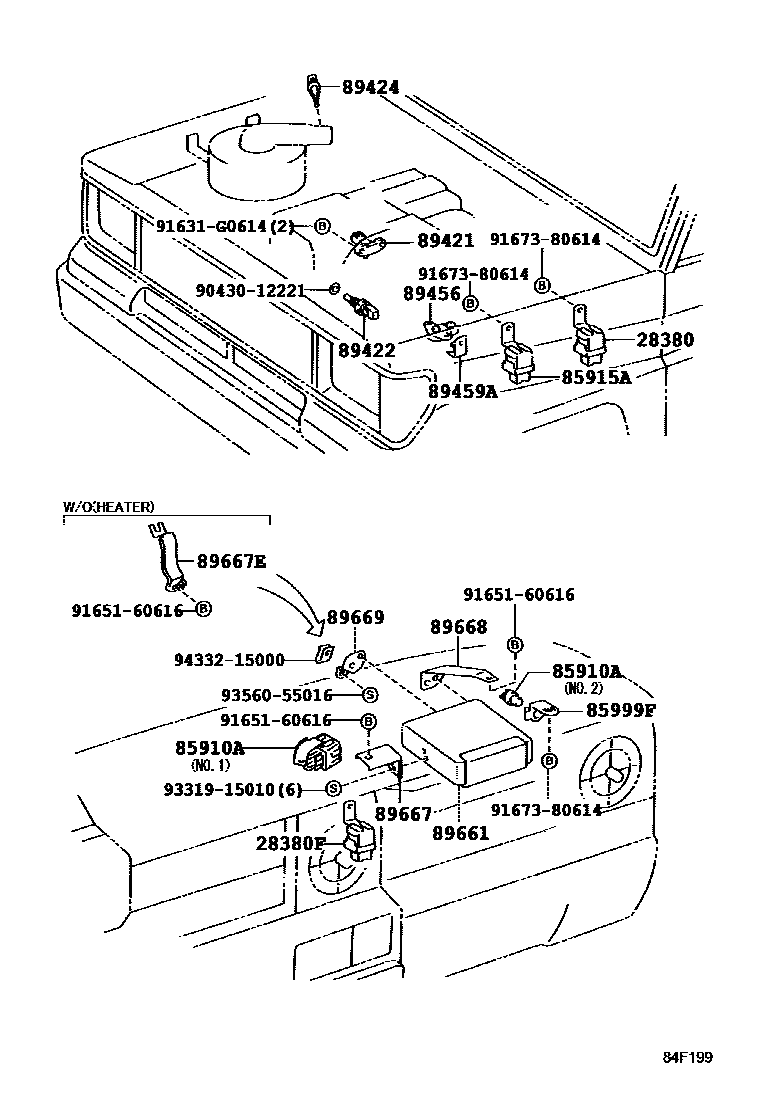

ELECTRONIC FUEL INJECTION SYSTEM
28380RELAY ASSY, FUEL PUMP
28380FRELAY ASSY, FUEL PUMP SELECT
FUEL TANK-90L, WITH(SUB TANK & FUEL TANK CAP KEY); FUEL TANK-90L, WITH(SUB TANK)
FUEL TANK-90L, WITH(SUB TANK & FUEL TANK CAP KEY); FUEL TANK-90L, WITH(SUB TANK); GCC SPEC(EXCEPT SAUDI ARABIA & UAE)&FUEL TANK-90L, WITH(SUB TANK & FUEL TANK CAP KEY); GCC SPEC(EXCEPT SAUDI ARABIA & UAE)&FUEL TANK-90L, WITH(SUB TANK); SAUDI ARABIA SPEC&FUEL TANK-90L, WITH(SUB TANK & FUEL TANK CAP KEY); SAUDI ARABIA SPEC&FUEL TANK-90L, WITH(SUB TANK)
85910ARELAY ASSY, CIRCUIT OPENING (FOR EFI)
FUEL TANK-90L, WITH(SUB TANK & FUEL TANK CAP KEY),NO.1; FUEL TANK-90L, WITH(SUB TANK),NO.1; GCC SPEC(EXCEPT SAUDI ARABIA & UAE)&FUEL TANK-90L, WITH(SUB TANK & FUEL TANK CAP KEY),NO.1; GCC SPEC(EXCEPT SAUDI ARABIA & UAE)&FUEL TANK-90L, WITH(SUB TANK),NO.1; SAUDI ARABIA SPEC&FUEL TANK-90L, WITH(SUB TANK & FUEL TANK CAP KEY),NO.1; SAUDI ARABIA SPEC&FUEL TANK-90L, WITH(SUB TANK),NO.1
FUEL TANK-90L, WITH(SUB TANK & FUEL TANK CAP KEY),NO.2; FUEL TANK-90L, WITH(SUB TANK),NO.2; GCC SPEC(EXCEPT SAUDI ARABIA & UAE)&FUEL TANK-90L, WITH(SUB TANK & FUEL TANK CAP KEY),NO.2; GCC SPEC(EXCEPT SAUDI ARABIA & UAE)&FUEL TANK-90L, WITH(SUB TANK),NO.2; SAUDI ARABIA SPEC&FUEL TANK-90L, WITH(SUB TANK & FUEL TANK CAP KEY),NO.2; SAUDI ARABIA SPEC&FUEL TANK-90L, WITH(SUB TANK),NO.2
85999FBRACKET, RELAY
FUEL TANK-90L, WITH(SUB TANK & FUEL TANK CAP KEY); FUEL TANK-90L, WITH(SUB TANK); GCC SPEC(EXCEPT SAUDI ARABIA & UAE)&FUEL TANK-90L, WITH(SUB TANK & FUEL TANK CAP KEY); GCC SPEC(EXCEPT SAUDI ARABIA & UAE)&FUEL TANK-90L, WITH(SUB TANK); SAUDI ARABIA SPEC&FUEL TANK-90L, WITH(SUB TANK & FUEL TANK CAP KEY); SAUDI ARABIA SPEC&FUEL TANK-90L, WITH(SUB TANK)
89421SENSOR ASSY, VACUUM (FOR E.F.I.)
89422SENSOR, WATER TEMPERATURE (FOR E.F.I.)
89424SENSOR, INLET AIR TEMPERATURE (FOR E.F.I.)
89456RESISTOR, VARIABLE
89459ABRACKET, VARIABLE RESISTOR
89661COMPUTER, ENGINE CONTROL
DENSO
DENSO
DENSO; DENSO,BAHRAIN SPEC&EXHAUST EMISSION CONTROL-GASOLINE EURO5 WITH(ON BOARD DIAGNOSIS); DENSO,COLOMBIA SPEC&EXHAUST EMISSION CONTROL-GASOLINE EURO5 WITH(ON BOARD DIAGNOSIS); DENSO,EXHAUST EMISSION CONTROL-GASOLINE EURO5 WITH(ON BOARD DIAGNOSIS); DENSO,IRAQ SPEC&EXHAUST EMISSION CONTROL-GASOLINE EURO5 WITH(ON BOARD DIAGNOSIS); DENSO,KUWAIT SPEC&EXHAUST EMISSION CONTROL-GASOLINE EURO5 WITH(ON BOARD DIAGNOSIS); DENSO,OMAN SPEC&EXHAUST EMISSION CONTROL-GASOLINE EURO5 WITH(ON BOARD DIAGNOSIS); DENSO,QATAR SPEC&EXHAUST EMISSION CONTROL-GASOLINE EURO5 WITH(ON BOARD DIAGNOSIS); DENSO,SAUDI ARABIA SPEC&EXHAUST EMISSION CONTROL-GASOLINE EURO5 WITH(ON BOARD DIAGNOSIS); DENSO,YEMEN SPEC&EXHAUST EMISSION CONTROL-GASOLINE EURO5 WITH(ON BOARD DIAGNOSIS)
GCC SPEC(EXCEPT SAUDI ARABIA & UAE); GCC SPEC(EXCEPT SAUDI ARABIA & UAE)&HEATER-BOOST VENTILATOR; GCC SPEC(EXCEPT SAUDI ARABIA & UAE)&HEATER-W(FRONT); SAUDI ARABIA SPEC; SAUDI ARABIA SPEC&HEATER-BOOST VENTILATOR; SAUDI ARABIA SPEC&HEATER-W(FRONT)
GCC SPEC(EXCEPT SAUDI ARABIA & UAE); SAUDI ARABIA SPEC
SOUTH AFRICA SPEC
DENSO,COLOMBIA SPEC&ABS (ANTI-LOCK BRK SYSTM)-WITH(ACT DRY)
DENSO,COLOMBIA SPEC&ABS (ANTI-LOCK BRAKE SYSTEM)-WITH
DENSO,EXHAUST EMISSION CONTROL-GASOLINE EURO5 WITH(ON BOARD DIAGNOSIS)
89667BRACKET, ENGINE CONTROL COMPUTER
GCC SPEC(EXCEPT SAUDI ARABIA & UAE); GCC SPEC(EXCEPT SAUDI ARABIA & UAE)&HEATER-BOOST VENTILATOR; GCC SPEC(EXCEPT SAUDI ARABIA & UAE)&HEATER-W(FRONT); SAUDI ARABIA SPEC; SAUDI ARABIA SPEC&HEATER-BOOST VENTILATOR; SAUDI ARABIA SPEC&HEATER-W(FRONT)
SOUTH AFRICA SPEC
89667EBRACKET, ENGINE CONTROL COMPUTER, NO.1
89668BRACKET, ENGINE CONTROL COMPUTER, NO.2
SOUTH AFRICA SPEC
89669BRACKET, ENGINE CONTROL COMPUTER, NO.3
9043012221
main90430-12221
91631G0614
main91631-G0614
9165160616
main91651-60616
9167380614
main91673-80614
9331915010
main93319-15010
9356055016
main93560-55016
9433215000
main94332-15000
22 parts on this diagram · 3 diagrams in section
