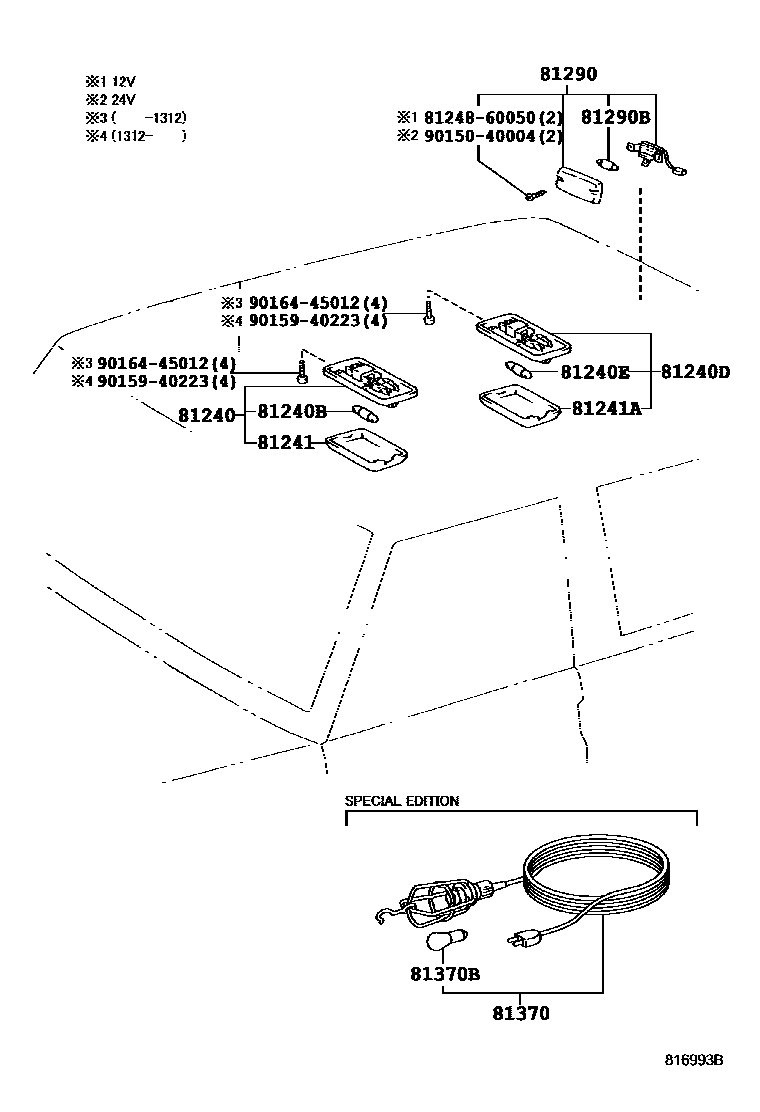

INTERIOR LAMP

0001 1 0002 1

81240LAMP ASSY, ROOM, NO.1

main81240-22070-B0iGDJL78..5F;GRJ71,HZJ71..SOT; GDJL78..6FC;GDJ78,GRJ78,HZJ78202309

GRAY,TRIM1#; GRAY,TRIM1#,4#

main81240-22081-B2iVDJ76;VDJ79..DCB..LX..GCC; VDJ79..DCB..STD..GCC; VDJL76;VDJL79..DCB..STD202309-202409

LT.GRAY,TRIM1#,2#; LT.GRAY,TRIM1#,2#,4#; LT.GRAY,TRIM1#,4#

main81240-90K00-B0iHZJ71..SOT202309

BATTERY-80D26R X 2,LT.GRAY,TRIM1#

81240BBULB, ROOM LAMP, NO.1

main99132-12100iGRJ71,78..RHD200701-201208

12V 10W

main90981-16019iHZJ71..SOT201909-202309

24V 10W,BATTERY-85D26R X 2(55AH X 2)

81240DLAMP ASSY, ROOM, NO.2

main81240-22070-B0iFZJ76,HZJ76,VDJ76200701-200907

GRAY,TRIM1#,4#

main81240-22081-B2iVDJ76; VDJL76202309-202409

LT.GRAY,TRIM1#,2#; LT.GRAY,TRIM1#,2#,4#

81240EBULB, ROOM LAMP, NO.2

main99132-12100iGRJ76,HZJ76,VDJ76200701-201608

12V 10W

81241LENS, ROOM LAMP, NO.1

main81241-20060iFZJ71,76,78200701-200907

81241ALENS, ROOM LAMP, NO.2

main81241-20060iFZJ76200701-200907

81290LAMP ASSY, ROOM, NO.3

main81240-60050iFZJ78,79200701-200907

main81240-90K03iHZJ79..RHD..PIC201608-201909

CKD PACKAGE(BANGLADESH)

81290BBULB, ROOM LAMP, NO.3

main90981-11004iHZJ78,79..(HT,PIC)..GCC201608-201612

12V 10W

main90981-16019iHZJ79..RHD..PIC201909-202309

24V 10W,BATTERY-85D26R X 2(55AH X 2)

81370LAMP ASSY, INSPECTION

main81370-60010iHZJ71..SOT201802-201803

SPECIAL EDITION

81370BBULB, INSPECTION LAMP

main99132-11230iHZJ71,79..RHD..(PIC,SOT)201702-201704

12V 23W,SPECIAL EDITION

8124860050COVER, ROOM LAMP, NO.1

main81248-60050

9015040004

main90150-40004

9015940223

main90159-40223

9016445012

main90164-45012

14 parts on this diagram · 2 diagrams in section
