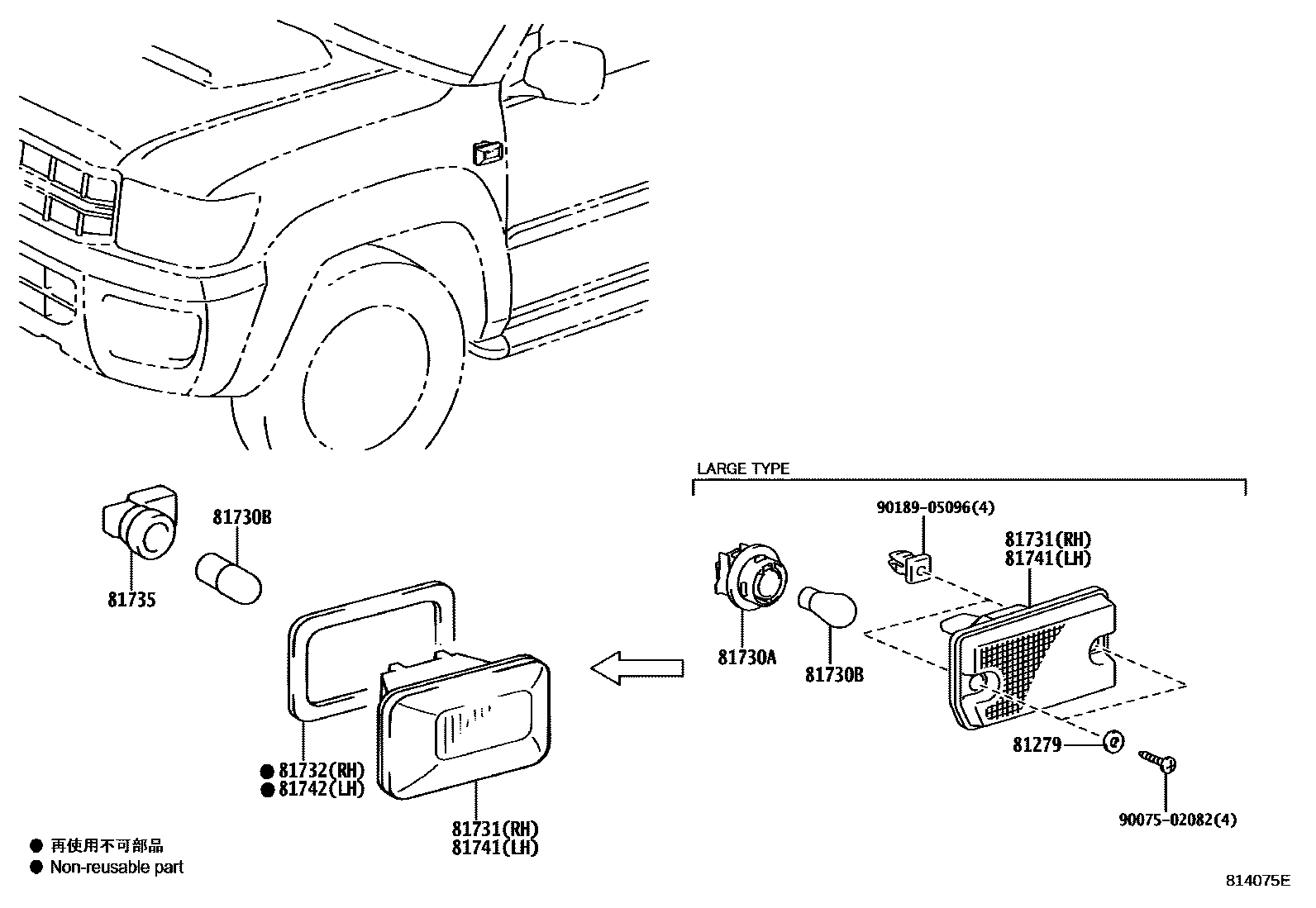

SIDE TURN SIGNAL LAMP & OUTER MIRROR LAMP

81279WASHER, SIDE TURN SIGNAL LAMP

main90202-05129×4iVDJL79..LX202309-202508

81730ASOCKET PLUG(FOR SIDE TURN SIGNAL LAMP)

main90075-99092×2iVDJL79..LX202309-202508

81730BBULB (FOR SIDE TURN SIGNAL LAMP)

main99132-11210×2iGDJL7#202309

12V 21W

main99132-12050×2iGRJ79,HZJ76,79..RHD; VDJ79;GRJ71,76,79,HZJ76,78,79,VDJ76,78..ARL,GCC200701-201608

12V 5W; 12V 5W,SOUTH AFRICA SPEC

81731LENS, SIDE TURN SIGNAL LAMP, RH

main81731-20192iFZJ71,76,79..GCC; FZJ79..RHD200701-200907

SOUTH AFRICA SPEC

main81731-60180iGDJL7#202309

81732GASKET, SIDE TURN SIGNAL LAMP LENS, RH

main81732-20190iGDJ76;GDJ71,78,79,GRJ7#..ARL,GCC; GDJ79,GRJ79,HZJ76,78,79..RHD..CBU; GDJ79,HZJ79..LHD..GEN..CBU202309

GHANA SPEC; SOUTH AFRICA SPEC

81735SOCKET AND WIRE, SIDE TURN SIGNAL LAMP

main90075-99012×2iFZJ71,76,79..GCC; FZJ79..RHD200701-200907

SOUTH AFRICA SPEC

81741LENS, SIDE TURN SIGNAL LAMP, LH

main81731-20192iFZJ71,76,79..GCC; FZJ79..RHD200701-200907

SOUTH AFRICA SPEC

main81741-60180iVDJL79..LX202309-202508

81742GASKET, SIDE TURN SIGNAL LAMP LENS, LH

main81732-20190iFZJ71,76,79..GCC; FZJ79..RHD200701-200907

SOUTH AFRICA SPEC

9007502082

main90075-02082

9018905096

main90189-05096

10 parts on this diagram · 1 diagram in section
