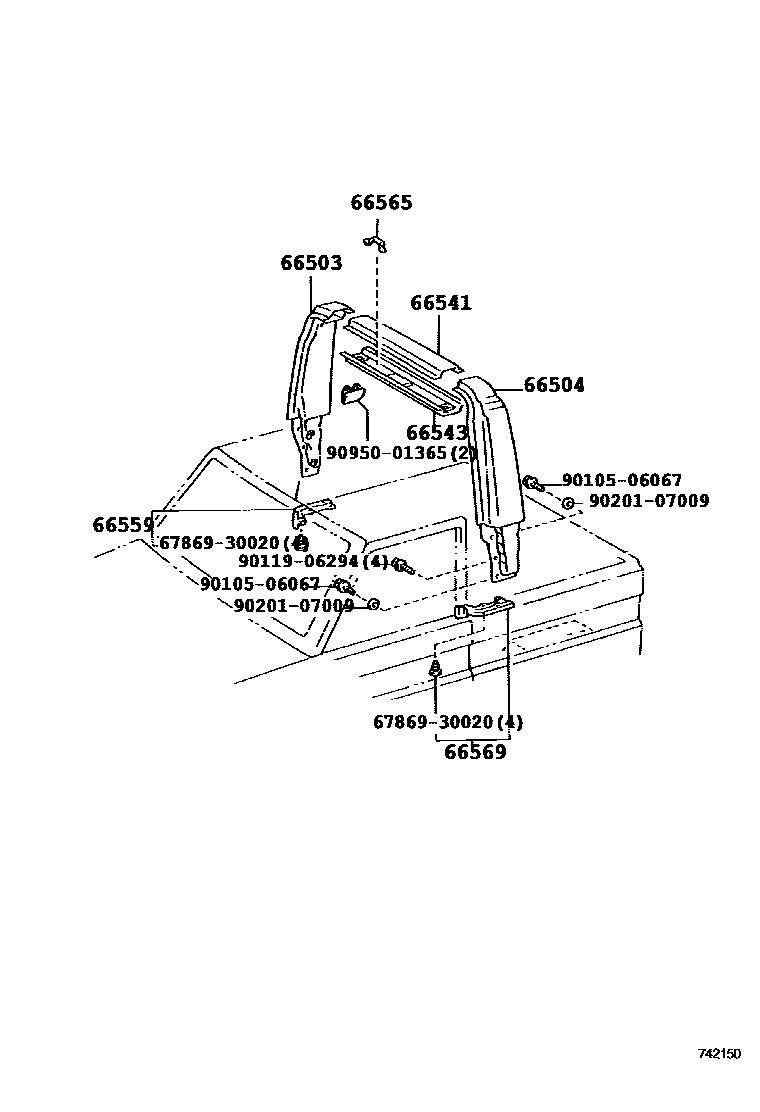

PROTECTOR PIPE, ROLL BAR & HANDRAIL

66503PANEL SUB-ASSY, ROLL OVER SIDE, RH

main66503-90K00iGRJ71,HZJ71..SOT200701-201608

66504PANEL SUB-ASSY, ROLL OVER SIDE, LH

main66504-90K00iGRJ71,HZJ71..SOT200701-201608

66541PANEL, ROLL OVER, OUTER

main66541-90K00iGRJ71,HZJ71..SOT200701-201608

66543PANEL, ROLL OVER, INNER

main66543-90K00iGRJ71,HZJ71..SOT200701-201608

66559SEAL, ROLL OVER PANEL, RH

main66559-90K00iGRJ71,HZJ71..SOT200701-201608

66565CATCH, ROLL OVER PANEL, UPPER

main66565-90K00×4iGRJ71,HZJ71..SOT200701-201608

66569SEAL, ROLL OVER PANEL, LH

main66569-90K00iGRJ71,HZJ71..SOT200701-201608

6786930020PLATE, WEATHERSTRIP, CENTER DOOR, UPPER

main67869-30020

9010506067

main90105-06067

9011906294

main90119-06294

9020107009

main90201-07009

9095001365

main90950-01365

12 parts on this diagram · 1 diagram in section
