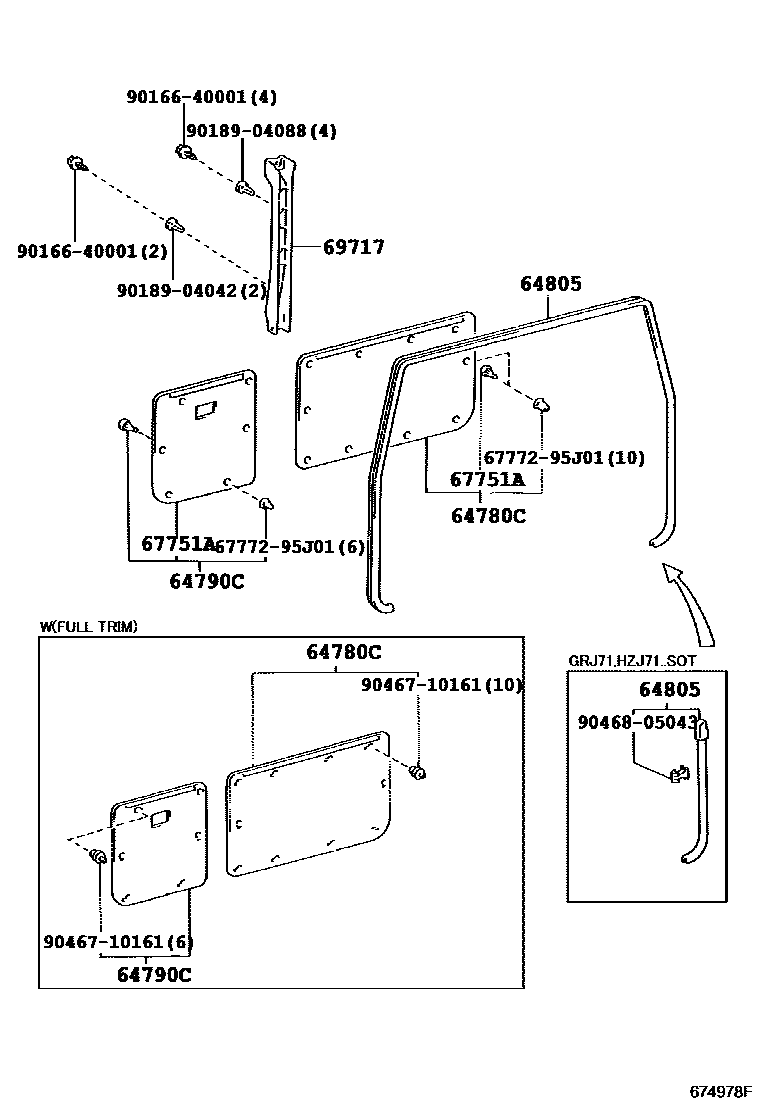

BACK DOOR PANEL & GLASS
64780CPANEL ASSY, BACK DOOR TRIM, RH
main64780-60050-E0iGDJ71,76..GCC;GRJ71,76..6FC; GDJ76,GRJ76..GCC; GDJL78..6FC..STD;GDJ71,76,78,GRJ71,76,78,HZJ71,76,78..HT..(GCC,GEN); GRJ76..5F..GCC; GRJ76..6FC;GDJ71,76,GRJ71..LX..GCC; HZJ76202309
*UGP(EXCEPT REAR BUMPER, SIDE STEP)&AUDIO(FOR OVERSEAS MARKET)-*DA *BT CP USB *TELDAB & 2SPEAKER,MD.OAK,TRIM4#; *UGP(EXCEPT REAR BUMPER, SIDE STEP)&AUDIO(FOR OVERSEAS MARKET)-*DA *BT CP USB *TELDAB & 4SPEAKER,MD.OAK,TRIM4#; *UGP(EXCEPT REAR BUMPER, SIDE STEP)&AUDIO(FOR OVERSEAS MARKET)-RADIO LESS 2SPEAKERDAB & ACCESORY,MD.OAK,TRIM4#; *UGP(EXCEPT REAR BUMPER, SIDE STEP)&AUDIO(FOR OVERSEAS MARKET)-RADIO LESS 4SPEAKERDAB & ACCESORY,MD.OAK,TRIM4#; MD.OAK,TRIM4#; UP GRADE PACKAGE&AUDIO(FOR OVERSEAS MARKET)-*DA *BT CP USB *TEL DAB & 4SPEAKER,MD.OAK,TRIM4#; UP GRADE PACKAGE&AUDIO(FOR OVERSEAS MARKET)-*DA *BT CP/AA USB *TEL & 4SPEAKER,MD.OAK,TRIM4#; UP GRADE PACKAGE&AUDIO(FOR OVERSEAS MARKET)-RADIO LESS 4SPEAKER (ACCESORY),MD.OAK,TRIM4#; UP GRADE PACKAGE&AUDIO(FOR OVERSEAS MARKET)-RADIO LESS 4SPEAKER DAB & ACCESORY,MD.OAK,TRIM4#; UP GRADE PACKAGE&AUDIO(FOR OVERSEAS MARKET)-RADIOLESS & 4SPEAKER,MD.OAK,TRIM4#; UP GRADE PACKAGE(WITHOUT REAR FOG LAMP)&AUDIO(FOR OVERSEAS MARKET)-RADIOLESS & 4SPEAKER,MD.OAK,TRIM4#; UP GRADE PACKAGE,MD.OAK,TRIM4#
REAR SEAT-TRANSVERSE SEAT,SLATE GRAY,TRIM1#; SLATE GRAY,TRIM1#
AUDIO(FOR OVERSEAS MARKET)-*DA *BT CP USB *TEL DAB & 4SPEAKER,SLATE GRAY,TRIM1#; AUDIO(FOR OVERSEAS MARKET)-*DA *BT CP/AA USB *TEL & 4SPEAKER,SLATE GRAY,TRIM1#; SLATE GRAY,TRIM1#
AUDIO(FOR OVERSEAS MARKET)-*DA *BT CP USB *TEL DAB & 4SPEAKER,MD.OAK,TRIM4#; AUDIO(FOR OVERSEAS MARKET)-*DA *BT CP/AA USB *TEL & 4SPEAKER,MD.OAK,TRIM4#; MD.OAK,TRIM4#
SLATE GRAY,TRIM1#
MD.OAK,TRIM4#
AUDIO(FOR OVERSEAS MARKET)-*DA *BT CP USB *TEL DAB & 4SPEAKER,SLATE GRAY,TRIM1#; AUDIO(FOR OVERSEAS MARKET)-*DA *BT CP/AA USB *TEL & 4SPEAKER,SLATE GRAY,TRIM1#; SLATE GRAY,TRIM1#
REAR SEAT-TRANSVERSE & PARALLEL SEAT, 7 PERSONS,SLATE GRAY,TRIM1#; SLATE GRAY,TRIM1#
MD.OAK,TRIM4#; REAR SEAT-TRANSVERSE & PARALLEL SEAT, 7 PERSONS,MD.OAK,TRIM4#
SLATE GRAY,TRIM1#
MD.OAK,TRIM4#
AUDIO(FOR OVERSEAS MARKET)-*DA *BT CP USB *TEL DAB & 4SPEAKER,MD.OAK,TRIM4#; AUDIO(FOR OVERSEAS MARKET)-*DA *BT CP/AA USB *TEL & 4SPEAKER,MD.OAK,TRIM4#
*UGP(EXCEPT REAR BUMPER, SIDE STEP)&AUDIO(FOR OVERSEAS MARKET)-*DA *BT CP USB *TELDAB & 2SPEAKER,BLACK,TRIM2#; *UGP(EXCEPT REAR BUMPER, SIDE STEP)&AUDIO(FOR OVERSEAS MARKET)-*DA *BT CP USB *TELDAB & 4SPEAKER,BLACK,TRIM2#; *UGP(EXCEPT REAR BUMPER, SIDE STEP)&AUDIO(FOR OVERSEAS MARKET)-RADIO LESS 2SPEAKERDAB & ACCESORY,BLACK,TRIM2#; *UGP(EXCEPT REAR BUMPER, SIDE STEP)&AUDIO(FOR OVERSEAS MARKET)-RADIO LESS 4SPEAKERDAB & ACCESORY,BLACK,TRIM2#; UP GRADE PACKAGE&AUDIO(FOR OVERSEAS MARKET)-*DA *BT CP USB *TEL DAB & 4SPEAKER,BLACK,TRIM2#; UP GRADE PACKAGE&AUDIO(FOR OVERSEAS MARKET)-*DA *BT CP/AA USB *TEL & 4SPEAKER,BLACK,TRIM2#; UP GRADE PACKAGE&AUDIO(FOR OVERSEAS MARKET)-RADIO LESS 4SPEAKER (ACCESORY),BLACK,TRIM2#; UP GRADE PACKAGE&AUDIO(FOR OVERSEAS MARKET)-RADIO LESS 4SPEAKER DAB & ACCESORY,BLACK,TRIM2#; UP GRADE PACKAGE&AUDIO(FOR OVERSEAS MARKET)-RADIOLESS & 4SPEAKER,BLACK,TRIM2#; UP GRADE PACKAGE(WITHOUT REAR FOG LAMP)&AUDIO(FOR OVERSEAS MARKET)-RADIOLESS & 4SPEAKER,BLACK,TRIM2#; UP GRADE PACKAGE,BLACK,TRIM2#
main64780-WY010-E1iGDJ71,76..GCC;GRJ71,76..6FC; GDJ76,GRJ76..GCC; GRJ76..5F..GCC; GRJ76..6FC;GDJ71,76,GRJ71..LX..GCC; HZJ76..LHD202309
*UGP(EXCEPT REAR BUMPER, SIDE STEP)&AUDIO(FOR OVERSEAS MARKET)-*DA *BT CP USB *TELDAB & 2SPEAKER,SADDLE TAN,TRIM4#; *UGP(EXCEPT REAR BUMPER, SIDE STEP)&AUDIO(FOR OVERSEAS MARKET)-*DA *BT CP USB *TELDAB & 4SPEAKER,SADDLE TAN,TRIM4#; *UGP(EXCEPT REAR BUMPER, SIDE STEP)&AUDIO(FOR OVERSEAS MARKET)-RADIO LESS 2SPEAKERDAB & ACCESORY,SADDLE TAN,TRIM4#; *UGP(EXCEPT REAR BUMPER, SIDE STEP)&AUDIO(FOR OVERSEAS MARKET)-RADIO LESS 4SPEAKERDAB & ACCESORY,SADDLE TAN,TRIM4#; UP GRADE PACKAGE&AUDIO(FOR OVERSEAS MARKET)-*DA *BT CP USB *TEL DAB & 4SPEAKER,SADDLE TAN,TRIM4#; UP GRADE PACKAGE&AUDIO(FOR OVERSEAS MARKET)-*DA *BT CP/AA USB *TEL & 4SPEAKER,SADDLE TAN,TRIM4#; UP GRADE PACKAGE&AUDIO(FOR OVERSEAS MARKET)-RADIO LESS 4SPEAKER (ACCESORY),SADDLETAN,TRIM4#; UP GRADE PACKAGE&AUDIO(FOR OVERSEAS MARKET)-RADIO LESS 4SPEAKER DAB & ACCESORY,SADDLE TAN,TRIM4#; UP GRADE PACKAGE&AUDIO(FOR OVERSEAS MARKET)-RADIOLESS & 4SPEAKER,SADDLE TAN,TRIM4#; UP GRADE PACKAGE(WITHOUT REAR FOG LAMP)&AUDIO(FOR OVERSEAS MARKET)-RADIOLESS & 4SPEAKER,SADDLE TAN,TRIM4#; UP GRADE PACKAGE,SADDLE TAN,TRIM4#
64790CPANEL ASSY, BACK DOOR TRIM, LH
MD.OAK,TRIM4#; REAR SEAT-TRANSVERSE SEAT,MD.OAK,TRIM4#
main64790-60020-S7iGDJ71,76..GCC;GRJ71,76..6FC; GDJ76,GRJ76..GCC; GDJL78..STD;GDJ71,76,78,L76,GRJ71,76,78,HZJ71,76,78; GRJ76..5F..GCC; GRJ76..6FC;GDJ71,76,GRJ71..LX..GCC; HZJ76202309
*UGP(EXCEPT REAR BUMPER, SIDE STEP)&AUDIO(FOR OVERSEAS MARKET)-*DA *BT CP USB *TELDAB & 2SPEAKER,SLATE GRAY,TRIM1#; *UGP(EXCEPT REAR BUMPER, SIDE STEP)&AUDIO(FOR OVERSEAS MARKET)-*DA *BT CP USB *TELDAB & 4SPEAKER,SLATE GRAY,TRIM1#; *UGP(EXCEPT REAR BUMPER, SIDE STEP)&AUDIO(FOR OVERSEAS MARKET)-RADIO LESS 2SPEAKERDAB & ACCESORY,SLATE GRAY,TRIM1#; *UGP(EXCEPT REAR BUMPER, SIDE STEP)&AUDIO(FOR OVERSEAS MARKET)-RADIO LESS 4SPEAKERDAB & ACCESORY,SLATE GRAY,TRIM1#; SLATE GRAY,TRIM1#; UP GRADE PACKAGE&AUDIO(FOR OVERSEAS MARKET)-*DA *BT CP USB *TEL DAB & 4SPEAKER,SLATE GRAY,TRIM1#; UP GRADE PACKAGE&AUDIO(FOR OVERSEAS MARKET)-*DA *BT CP/AA USB *TEL & 4SPEAKER,SLATE GRAY,TRIM1#; UP GRADE PACKAGE&AUDIO(FOR OVERSEAS MARKET)-RADIO LESS 4SPEAKER (ACCESORY),SLATE GRAY,TRIM1#; UP GRADE PACKAGE&AUDIO(FOR OVERSEAS MARKET)-RADIO LESS 4SPEAKER DAB & ACCESORY,SLATE GRAY,TRIM1#; UP GRADE PACKAGE&AUDIO(FOR OVERSEAS MARKET)-RADIOLESS & 4SPEAKER,SLATE GRAY,TRIM1#; UP GRADE PACKAGE(WITHOUT REAR FOG LAMP)&AUDIO(FOR OVERSEAS MARKET)-RADIOLESS & 4SPEAKER,SLATE GRAY,TRIM1#; UP GRADE PACKAGE,SLATE GRAY,TRIM1#
AUDIO(FOR OVERSEAS MARKET)-*DA *BT CP USB *TEL DAB & 4SPEAKER,SLATE GRAY,TRIM1#; AUDIO(FOR OVERSEAS MARKET)-*DA *BT CP/AA USB *TEL & 4SPEAKER,SLATE GRAY,TRIM1#; SLATE GRAY,TRIM1#
AUDIO(FOR OVERSEAS MARKET)-*DA *BT CP USB *TEL DAB & 4SPEAKER,MD.OAK,TRIM4#; AUDIO(FOR OVERSEAS MARKET)-*DA *BT CP/AA USB *TEL & 4SPEAKER,MD.OAK,TRIM4#; MD.OAK,TRIM4#
SLATE GRAY,TRIM1#
MD.OAK,TRIM4#
AUDIO(FOR OVERSEAS MARKET)-*DA *BT CP USB *TEL DAB & 4SPEAKER,SLATE GRAY,TRIM1#; AUDIO(FOR OVERSEAS MARKET)-*DA *BT CP/AA USB *TEL & 4SPEAKER,SLATE GRAY,TRIM1#; SLATE GRAY,TRIM1#
REAR SEAT-TRANSVERSE & PARALLEL SEAT, 7 PERSONS,SLATE GRAY,TRIM1#; SLATE GRAY,TRIM1#
MD.OAK,TRIM4#; REAR SEAT-TRANSVERSE & PARALLEL SEAT, 7 PERSONS,MD.OAK,TRIM4#
SLATE GRAY,TRIM1#
MD.OAK,TRIM4#
AUDIO(FOR OVERSEAS MARKET)-*DA *BT CP USB *TEL DAB & 4SPEAKER,MD.OAK,TRIM4#; AUDIO(FOR OVERSEAS MARKET)-*DA *BT CP/AA USB *TEL & 4SPEAKER,MD.OAK,TRIM4#
*UGP(EXCEPT REAR BUMPER, SIDE STEP)&AUDIO(FOR OVERSEAS MARKET)-*DA *BT CP USB *TELDAB & 4SPEAKER,BLACK,TRIM2#; *UGP(EXCEPT REAR BUMPER, SIDE STEP)&AUDIO(FOR OVERSEAS MARKET)-RADIO LESS 4SPEAKERDAB & ACCESORY,BLACK,TRIM2#; UP GRADE PACKAGE&AUDIO(FOR OVERSEAS MARKET)-*DA *BT CP USB *TEL DAB & 4SPEAKER,BLACK,TRIM2#; UP GRADE PACKAGE&AUDIO(FOR OVERSEAS MARKET)-*DA *BT CP/AA USB *TEL & 4SPEAKER,BLACK,TRIM2#; UP GRADE PACKAGE&AUDIO(FOR OVERSEAS MARKET)-2DIN AM(9K) FM CD USB & 4SPEAKER,BLACK,TRIM2#; UP GRADE PACKAGE&AUDIO(FOR OVERSEAS MARKET)-RADIO LESS 4SPEAKER (ACCESORY),BLACK,TRIM2#; UP GRADE PACKAGE&AUDIO(FOR OVERSEAS MARKET)-RADIO LESS 4SPEAKER DAB & ACCESORY,BLACK,TRIM2#; UP GRADE PACKAGE&AUDIO(FOR OVERSEAS MARKET)-RADIOLESS & 4SPEAKER,BLACK,TRIM2#
main64790-WY010-E1iGDJ71,76..GCC;GRJ71,76..6FC; GDJ76,GRJ76..GCC; GRJ76..5F..GCC; GRJ76..6FC;GDJ71,76,GRJ71..LX..GCC; HZJ76..LHD202309
*UGP(EXCEPT REAR BUMPER, SIDE STEP)&AUDIO(FOR OVERSEAS MARKET)-*DA *BT CP USB *TELDAB & 2SPEAKER,SADDLE TAN,TRIM4#; *UGP(EXCEPT REAR BUMPER, SIDE STEP)&AUDIO(FOR OVERSEAS MARKET)-*DA *BT CP USB *TELDAB & 4SPEAKER,SADDLE TAN,TRIM4#; *UGP(EXCEPT REAR BUMPER, SIDE STEP)&AUDIO(FOR OVERSEAS MARKET)-RADIO LESS 2SPEAKERDAB & ACCESORY,SADDLE TAN,TRIM4#; *UGP(EXCEPT REAR BUMPER, SIDE STEP)&AUDIO(FOR OVERSEAS MARKET)-RADIO LESS 4SPEAKERDAB & ACCESORY,SADDLE TAN,TRIM4#; UP GRADE PACKAGE&AUDIO(FOR OVERSEAS MARKET)-*DA *BT CP USB *TEL DAB & 4SPEAKER,SADDLE TAN,TRIM4#; UP GRADE PACKAGE&AUDIO(FOR OVERSEAS MARKET)-*DA *BT CP/AA USB *TEL & 4SPEAKER,SADDLE TAN,TRIM4#; UP GRADE PACKAGE&AUDIO(FOR OVERSEAS MARKET)-RADIO LESS 4SPEAKER (ACCESORY),SADDLETAN,TRIM4#; UP GRADE PACKAGE&AUDIO(FOR OVERSEAS MARKET)-RADIO LESS 4SPEAKER DAB & ACCESORY,SADDLE TAN,TRIM4#; UP GRADE PACKAGE&AUDIO(FOR OVERSEAS MARKET)-RADIOLESS & 4SPEAKER,SADDLE TAN,TRIM4#; UP GRADE PACKAGE(WITHOUT REAR FOG LAMP)&AUDIO(FOR OVERSEAS MARKET)-RADIOLESS & 4SPEAKER,SADDLE TAN,TRIM4#; UP GRADE PACKAGE,SADDLE TAN,TRIM4#
64805TRIM SUB-ASSY, BACK DOOR OPENING
LT.GRAY,TRIM1#,4#
LT.OAK,TRIM1#,4#
LT.GRAY,TRIM1#,4#
BLACK,TRIM1#; BLACK,TRIM1#,4#
LT.GRAY,TRIM1#,4#
LT.GRAY,TRIM1#,4#
BLACK,TRIM1#,4#
LT.GRAY,TRIM1#,4#
main64855-60020-C0iGDJ76,GRJ76..5F..GEN;GDJ76..LHD..6FC..GEN; GDJ76,L76..6FC..LX..ARL; GDJL76..5F;GDJL76..STD; HZJ76;GDJ76,GRJ76..GCC;GDJ76..RHD..6FC..GEN202309
BLACK,TRIM1#; BLACK,TRIM1#,2#; BLACK,TRIM1#,2#,4#; BLACK,TRIM1#,4#
LT.GRAY,TRIM1#,4#
BLACK,TRIM1#,2#,4#; BLACK,TRIM1#,4#
67751ACLIP(FOR BACK DOOR TRIM BOARD)
REAR SEAT-TRANSVERSE & PARALLEL SEAT, 7 PERSONS,SLATE GRAY,TRIM1#; SLATE GRAY,TRIM1#
LT.OAK,TRIM4#
69717COVER, BACK DOOR LOCK CONTROL LINK
BLACK,TRIM1#,4#
BLACK,TRIM1#,4#
BLACK,TRIM1#,2#,4#; BLACK,TRIM1#,4#
BLACK,TRIM1#,4#
BLACK,TRIM1#,4#
6777295J01WEATHERSTRIP, BACK DOOR TRIM, LH
main67772-95J01
9016640001
main90166-40001
9018904042
main90189-04042
9018904088
main90189-04088
9046710161
main90467-10161
9046805043
main90468-05043
11 parts on this diagram · 4 diagrams in section
