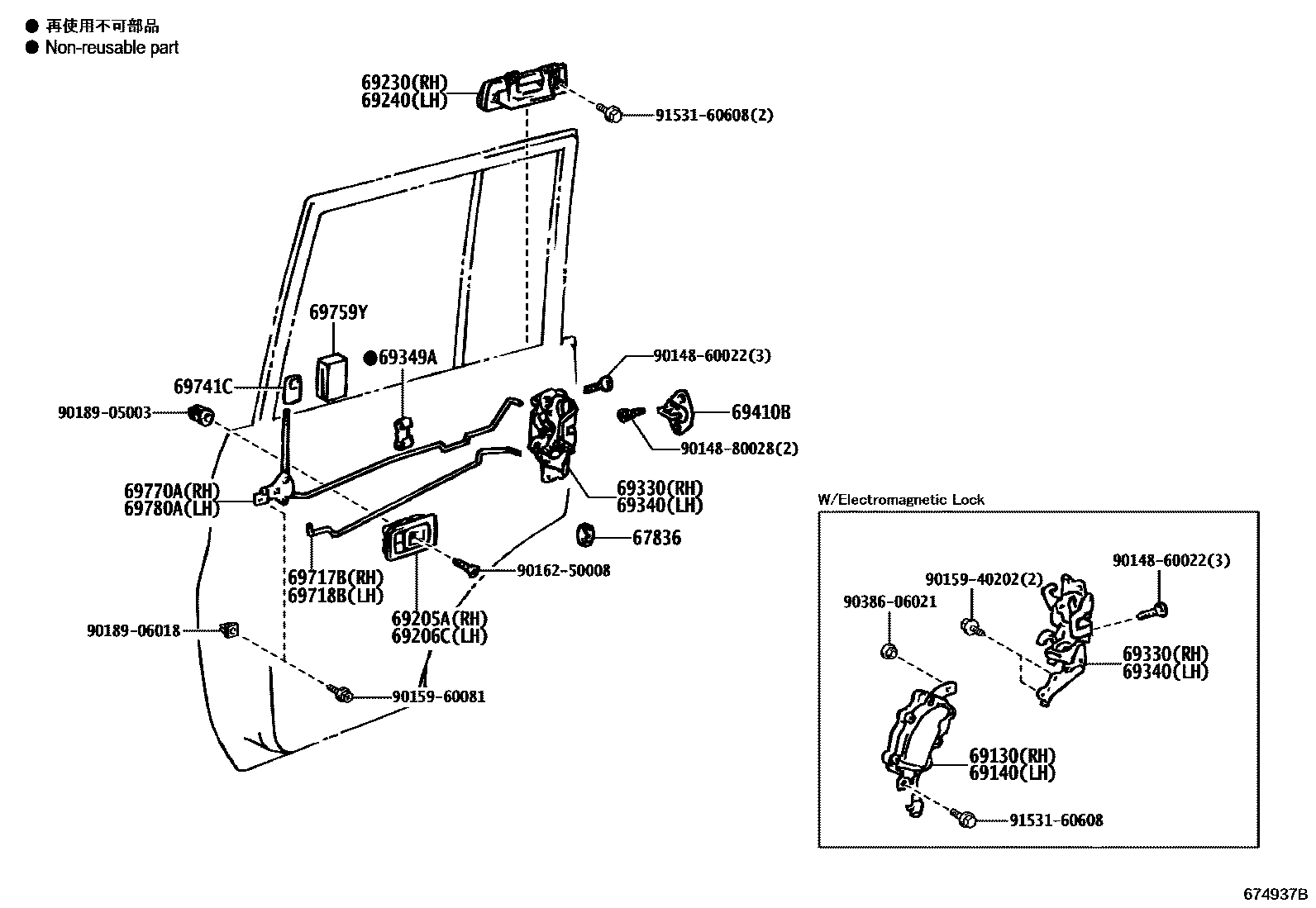

REAR DOOR LOCK & HANDLE
67836COVER, REAR DOOR LOCK CHILD PROTECTION, RH
69130ACTUATOR ASSY, REAR DOOR LOCK, RH
main69130-60040iVDJ76,L76..RHD; VDJ76..GCC;HZJ76,79..(DCB,HT)..GEN;GRJ76,79,VDJ79,L79..DCB,HT201608-202309
POWER DOOR LOCK-WITH
69140ACTUATOR ASSY, REAR DOOR LOCK, LH
POWER DOOR LOCK-WITH
69205AHANDLE SUB-ASSY, REAR DOOR INSIDE, RH
main69205-20040-B1iGDJ76,79,GRJ76,79..(DCB,HT)..LX..GCC; GDJ76,79,L76,L79,GRJ76,79,HZJ76,79..DCB,HT; HZJ76202309
*UGP(EXCEPT REAR BUMPER, SIDE STEP),BLUE GRAY,TRIM1#; BLUE GRAY,TRIM1#; UP GRADE PACKAGE(WITHOUT REAR FOG LAMP),BLUE GRAY,TRIM1#; UP GRADE PACKAGE,BLUE GRAY,TRIM1#
LIGHT OAK,TRIM4#
*UGP(EXCEPT REAR BUMPER, SIDE STEP),BLACK,TRIM2#; UP GRADE PACKAGE(WITHOUT REAR FOG LAMP),BLACK,TRIM2#; UP GRADE PACKAGE,BLACK,TRIM2#
*UGP(EXCEPT REAR BUMPER, SIDE STEP),MD.OAK,TRIM4#; UP GRADE PACKAGE(WITHOUT REAR FOG LAMP),MD.OAK,TRIM4#; UP GRADE PACKAGE,MD.OAK,TRIM4#
69206CHANDLE SUB-ASSY, REAR DOOR INSIDE, LH
BLUE GRAY,TRIM1#
main69206-20040-E1iGDJ76,79,GRJ76,79,HZJ76,79..(DCB,HT)..(GCC,GEN); GDJ76,79,GRJ76,79..(DCB,HT)..LX..GCC; HZJ76202309
*UGP(EXCEPT REAR BUMPER, SIDE STEP),LIGHT OAK,TRIM4#; LIGHT OAK,TRIM4#; UP GRADE PACKAGE(WITHOUT REAR FOG LAMP),LIGHT OAK,TRIM4#; UP GRADE PACKAGE,LIGHT OAK,TRIM4#
*UGP(EXCEPT REAR BUMPER, SIDE STEP),BLACK,TRIM2#; UP GRADE PACKAGE,BLACK,TRIM2#
*UGP(EXCEPT REAR BUMPER, SIDE STEP),MD.OAK,TRIM4#; UP GRADE PACKAGE(WITHOUT REAR FOG LAMP),MD.OAK,TRIM4#; UP GRADE PACKAGE,MD.OAK,TRIM4#
69230HANDLE ASSY, REAR DOOR OUTSIDE, RH
PLATED
69240HANDLE ASSY, REAR DOOR OUTSIDE, LH
PLATED
69330LOCK ASSY, REAR DOOR, RH
main69330-60041supersedes 69330-60031iVDJ76,L76;VDJ79..DCB..LX..GCC; VDJ79..DCB..STD..GCC; VDJL79..DCB..STD202309-202409
POWER DOOR LOCK-WITH; POWER WINDOW-WITH
69340LOCK ASSY, REAR DOOR, LH
main69340-60041supersedes 69340-60031iGDJ76,79,L76,L79,GRJ76,79..(DCB,HT)..LX; GDJ79,GRJ76,79,HZJ76,79..(DCB,HT)..STD..CBU; GDJ79,L76,L79..(DCB,HT)..STD..ARL202309
POWER DOOR LOCK-WITH; POWER WINDOW-WITH
69349ACLAMP, DOOR LOCK LINK
69410BPLATE ASSY, REAR DOOR LOCK STRIKER
69717BLINK, REAR DOOR LOCK REMOTE CONTROL, RH
69718BLINK, REAR DOOR LOCK REMOTE CONTROL, LH
69741CKNOB, REAR DOOR LOCK CONTROL
BLUE GRAY,TRIM1#
main69741-90K00-C0×2iGDJ76,79,L76,L79..(DCB,HT)..6FC..LX..ARL; GDJ76..LHD..6FC..GEN;GDJ79,GRJ79..DCB..STD..CBU;GDJ76,GRJ76,HZJ79..(DCB,HT)..5F..GEN; GDJL76,79..5F..LX;GDJ79,L76,L79..(DCB,HT)..STD..ARL; HZJ76;GDJ76..RHD..6FC..GEN;GDJ76,79,GRJ76,79..(DCB,HT)..LX..GCC202309
BLACK,TRIM1#; BLACK,TRIM1#,2#; BLACK,TRIM1#,2#,4#; BLACK,TRIM1#,4#
LIGHT OAK,TRIM4#
69759YSILENCER, REAR DOOR LOCK LINK
69770ALINK ASSY, REAR DOOR INSIDE LOCKING, RH
69780ALINK ASSY, REAR DOOR INSIDE LOCKING, LH
9014860022
main90148-60022
9014880028
main90148-80028
9015940202
main90159-40202
9015960081
main90159-60081
9016250008
main90162-50008
9018905003
main90189-05003
9018906018
main90189-06018
9038606021
main90386-06021
9153160608
main91531-60608
26 parts on this diagram · 1 diagram in section
