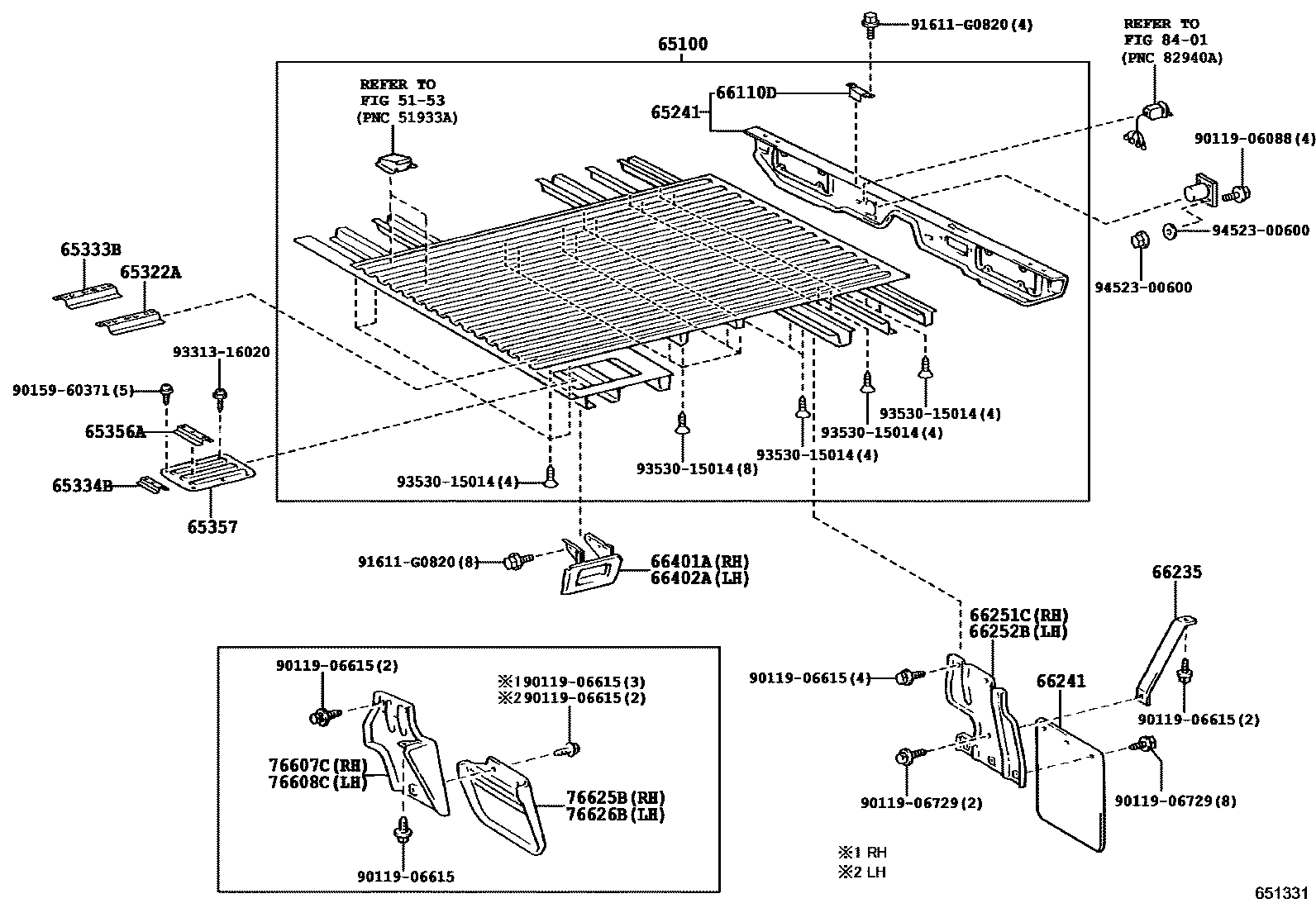

REAR BODY FLOOR & FENDER
5153SPARE WHEEL CARRIER
65100FLOOR ASSY, REAR BODY
FUEL TANK-90L, WITH(SUB TANK & FUEL TANK CAP KEY); FUEL TANK-90L, WITH(SUB TANK)
FUEL TANK-90L, WITH(SUB TANK & FUEL TANK CAP KEY); FUEL TANK-90L, WITH(SUB TANK)
ALGERIA SPEC; SOUTH AFRICA SPEC
FUEL TANK-90L, WITH(FUEL TANK CAP KEY)
ALGERIA SPEC&FUEL TANK-90L, WITH(FUEL TANK CAP KEY); SOUTH AFRICA SPEC&FUEL TANK-90L, WITH(FUEL TANK CAP KEY)
SOUTH AFRICA SPEC; SOUTH AFRICA SPEC&FUEL TANK-90L, WITH(SUB TANK & FUEL TANK CAP KEY); SOUTH AFRICA SPEC&FUEL TANK-90L, WITH(SUB TANK)
ALGERIA SPEC&FUEL TANK-90L, WITH(SUB TANK & FUEL TANK CAP KEY); ALGERIA SPEC&FUEL TANK-90L, WITH(SUB TANK); EGYPT SPEC&FUEL TANK-90L, WITH(SUB TANK & FUEL TANK CAP KEY); EGYPT SPEC&FUEL TANK-90L, WITH(SUB TANK); GHANA SPEC&FUEL TANK-90L, WITH(SUB TANK & FUEL TANK CAP KEY)&TIRE & DISK WHEEL-265/70R16C 7J ALUMINUM; GHANA SPEC&FUEL TANK-90L, WITH(SUB TANK & FUEL TANK CAP KEY)&TIRE & DISK WHEEL-265/70R16C 7J ALUMINUM WITHOUT(TUBE); GHANA SPEC&FUEL TANK-90L, WITH(SUB TANK)&TIRE & DISK WHEEL-265/70R16C 7J ALUMINUM; GHANA SPEC&FUEL TANK-90L, WITH(SUB TANK)&TIRE & DISK WHEEL-265/70R16C 7J ALUMINUMWITHOUT(TUBE)
CKD PACKAGE(KENYA)&FUEL TANK-90L, WITH(SUB TANK & FUEL TANK CAP KEY); CKD PACKAGE(KENYA)&FUEL TANK-90L, WITH(SUB TANK)
CKD PACKAGE(BANGLADESH)&FUEL TANK-90L, WITH(FUEL TANK CAP KEY); CKD PACKAGE(KENYA)&FUEL TANK-90L, WITH(FUEL TANK CAP KEY)
FUEL TANK-90L, WITH(SUB TANK & FUEL TANK CAP KEY); FUEL TANK-90L, WITH(SUB TANK)
FUEL TANK-90L, WITH(SUB TANK & FUEL TANK CAP KEY); FUEL TANK-90L, WITH(SUB TANK)
FUEL TANK-90L, WITH(FUEL TANK CAP KEY)
ALGERIA SPEC&FUEL TANK-90L, WITH(SUB TANK & FUEL TANK CAP KEY); ALGERIA SPEC&FUEL TANK-90L, WITH(SUB TANK)
SOUTH AFRICA SPEC&FUEL TANK-90L, WITH(SUB TANK & FUEL TANK CAP KEY); SOUTH AFRICA SPEC&FUEL TANK-90L, WITH(SUB TANK)
ALGERIA SPEC; EGYPT SPEC
ALGERIA SPEC&FUEL TANK-90L, WITH(FUEL TANK CAP KEY)
main65100-60430iGDJ79,GRJ79,HZJ79..LHD..DCB..GEN; GDJ79,GRJ79,HZJ79..RHD..DCB..CBU; GDJ79,HZJ79..LHD..DCB..GEN; GRJ79,HZJ79..LHD..DCB..GEN202309
ALGERIA SPEC; EGYPT SPEC; GHANA SPEC; SOUTH AFRICA SPEC
SPECIAL EDITION
SOUTH AFRICA SPEC&CKD PACKAGE(PORTUGAL)&FUEL TANK-90L, WITH(SUB TANK & FUEL TANK CAP KEY); SOUTH AFRICA SPEC&CKD PACKAGE(PORTUGAL)&FUEL TANK-90L, WITH(SUB TANK)
CKD PACKAGE(PORTUGAL); SOUTH AFRICA SPEC&CKD PACKAGE(PORTUGAL)
CKD PACKAGE(PORTUGAL); SOUTH AFRICA SPEC&CKD PACKAGE(PORTUGAL)&FUEL TANK-90L, WITH(SUB TANK & FUEL TANK CAP KEY); SOUTH AFRICA SPEC&CKD PACKAGE(PORTUGAL)&FUEL TANK-90L, WITH(SUB TANK)
GCC(EXCEPT SAUDI ARABIA),YEMEN,IRAQ SPEC&FUEL TANK-90L, WITH(SUB TANK & FUEL TANKCAP KEY); GCC(EXCEPT SAUDI ARABIA),YEMEN,IRAQ SPEC&FUEL TANK-90L, WITH(SUB TANK); SAUDI ARABIA SPEC&FUEL TANK-90L, WITH(SUB TANK & FUEL TANK CAP KEY); SAUDI ARABIA SPEC&FUEL TANK-90L, WITH(SUB TANK)
TARPAULIN/HARD TOP-FOR PICK-UP; TIRE & DISK WHEEL-265/70R16C 7J ALUMINUM WITHOUT(TUBE); TIRE & DISK WHEEL-265/70R16C 7J ALUMINUM WITHOUT(TUBE)&TARPAULIN/HARD TOP-FOR PICK-UP
GCC(EXCEPT SAUDI ARABIA),YEMEN,IRAQ SPEC&FUEL TANK-90L, WITH(FUEL TANK CAP KEY); SAUDI ARABIA SPEC&FUEL TANK-90L, WITH(FUEL TANK CAP KEY)
GCC(EXCEPT SAUDI ARABIA),YEMEN,IRAQ SPEC; GCC(EXCEPT SAUDI ARABIA),YEMEN,IRAQ SPEC&TARPAULIN/HARD TOP-FOR PICK-UP; GCC(EXCEPT SAUDI ARABIA),YEMEN,IRAQ SPEC&TIRE & DISK WHEEL-265/70R16C 7JJ ALUMINUMWITH(TUBE); GCC(EXCEPT SAUDI ARABIA),YEMEN,IRAQ SPEC&TIRE & DISK WHEEL-265/70R16C 7JJ ALUMINUMWITH(TUBE)&TARPAULIN/HARD TOP-FOR PICK-UP; SAUDI ARABIA SPEC; SAUDI ARABIA SPEC&TARPAULIN/HARD TOP-FOR PICK-UP; SAUDI ARABIA SPEC&TIRE & DISK WHEEL-265/70R16C 7JJ ALUMINUM WITH(TUBE); SAUDI ARABIA SPEC&TIRE & DISK WHEEL-265/70R16C 7JJ ALUMINUM WITH(TUBE)&TARPAULIN/HARD TOP-FOR PICK-UP
FUEL TANK-90L, WITH(FUEL TANK CAP KEY)
65241SILL, REAR CROSS
EGYPT SPEC&FUEL TANK-90L, WITH(FUEL TANK CAP KEY)
SPECIAL EDITION
GCC(EXCEPT SAUDI ARABIA),YEMEN,IRAQ SPEC&FUEL TANK-90L, WITH(FUEL TANK CAP KEY); SAUDI ARABIA SPEC&FUEL TANK-90L, WITH(FUEL TANK CAP KEY)
FUEL TANK-90L, WITH(FUEL TANK CAP KEY)
65322AFRAME, FLOOR, FRONT LOWER
SPECIAL EDITION
65333BFRAME, FLOOR SIDE, RH
SPECIAL EDITION
65334BFRAME, FLOOR SIDE, LH
SPECIAL EDITION
65356ABRACKET, BATTERY HOLE COVER
SPECIAL EDITION
65357COVER, FRONT FLOOR CORNER
66110DHINGE ASSY, TAIL GATE
66235STAY, REAR FENDER, NO.1
main66235-90K00×2iGRJ79,HZJ79..GEN..CBU; GRJ79,HZJ79..RHD;GRJ79,HZJ79..LHD..PIC..GEN..CBU; VDJ79..GEN;VDJ79..STD..GCC201608-202309
MUD GUARD-WITH(FRONT & REAR); MUD GUARD-WITH(FRONT),FOR OVER FENDER & WITH(REAR)
66241MUDGUARD, REAR
MUD GUARD-WITH(FRONT),FOR OVER FENDER & WITH(REAR),RH; TIRE & DISK WHEEL-265/70R16C 7J ALUMINUM WITHOUT(TUBE),RH; TIRE & DISK WHEEL-265/70R16C 7J ALUMINUM,RH
MUD GUARD-WITH(FRONT),FOR OVER FENDER & WITH(REAR),LH; TIRE & DISK WHEEL-265/70R16C 7J ALUMINUM WITHOUT(TUBE),LH; TIRE & DISK WHEEL-265/70R16C 7J ALUMINUM,LH
66251CSUPPORT, MUDGUARD REAR, RH
66252BSUPPORT, MUDGUARD, REAR LH
main66252-90K00iGDJ79,GRJ79,HZJ79..GEN..CBU; GRJ79..DCB..LX;GDJ79..DCB..GCC;GRJ79..STD..GCC..CBU; GRJ79..PIC..LX;GDJ79..PIC..GCC202309
MUD GUARD-WITH(FRONT & REAR); MUD GUARD-WITH(FRONT),FOR OVER FENDER & WITH(REAR); TIRE & DISK WHEEL-265/70R16C 7J ALUMINUM; TIRE & DISK WHEEL-265/70R16C 7J ALUMINUM WITHOUT(TUBE)
66401APANEL SUB-ASSY, DECK SIDE STEP, RH
66402APANEL SUB-ASSY, DECK SIDE STEP, LH
76607CMUDGUARD SUB-ASSY, REAR BODY, RH
main76607-60300iGRJ79..DCB..LX;GRJ79..STD..CBU;GDJ79..DCB..GCC;GDJ79,HZJ79..GEN..CBU; GRJ79..PIC..LX;GDJ79..PIC..GCC202309
MUD GUARD-WITH(FRONT & REAR),DX TYPE
76608CMUDGUARD SUB-ASSY, REAR BODY, LH
MUD GUARD-WITH(FRONT & REAR),DX TYPE
76625BMUDGUARD, REAR BODY, RH
MUD GUARD-WITH(FRONT & REAR),DX TYPE
76626BMUDGUARD, REAR BODY, LH
MUD GUARD-WITH(FRONT & REAR),DX TYPE
8401SWITCH & RELAY & COMPUTER
9011906088
main90119-06088
9011906615
main90119-06615
9011906729
main90119-06729
9015960371
main90159-60371
91611G0820
main91611-G0820
9331316020
main93313-16020
9353015014
main93530-15014
9452300600
main94523-00600
28 parts on this diagram · 4 diagrams in section
