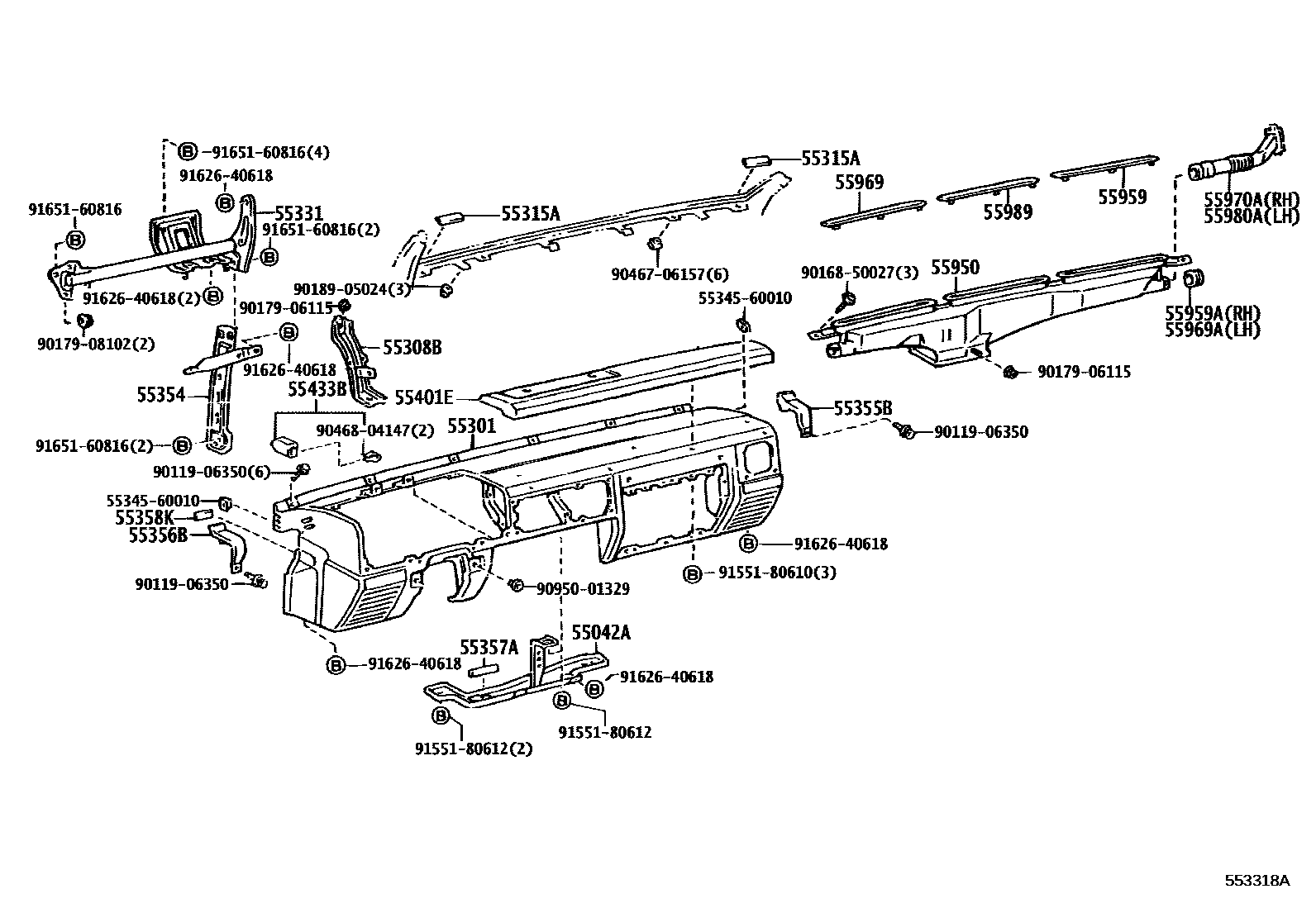

INSTRUMENT PANEL & GLOVE COMPARTMENT
55042AREINFORCEMENT SUB-ASSY, CLUSTER FINISH PANEL
SLATE GRAY,TRIM1#
MD.OAK,TRIM4#
SLATE GRAY,TRIM1#
MD.OAK,TRIM4#
55301PANEL SUB-ASSY, INSTRUMENT
SLATE GRAY,TRIM1#
MD.OAK,TRIM4#
SLATE GRAY,TRIM1#
MD.OAK,TRIM4#
GCC SPEC(EXCEPT SAUDI ARABIA & UAE),SLATE GRAY,TRIM1#; SLATE GRAY,TRIM1#
GCC SPEC(EXCEPT SAUDI ARABIA & UAE),MD.OAK,TRIM4#; MD.OAK,TRIM4#
BLUISH GRAY,TRIM1#
main55301-60A40-E0iVDJ79..CBU;VDJ79..DCB..IV;HZJ76,78,79..GEN;GRJ7#,HZJ71,VDJ76,78..DCB,HT,PIC201608-202208
OAK,TRIM4#
main55301-60A41-B0iVDJ76,79,L79..(DCB,HT)..ARL;HZJ76,79,VDJ79,L76..RHD..CBU; VDJ78,L78;HZJ76,79,VDJ79..LHD;GRJ7#,HZJ71,78,VDJ76..(DCB,HT,PIC)..(GCC,GEN)202208-202309
BLUISH GRAY,TRIM1#; BLUISH GRAY,TRIM1#,2#
main55301-60A41-E0iVDJ79..CBU;VDJ79,L79..DCB..IV;GRJ7#,HZJ7#,VDJ76,78,L76,L78..DCB,HT,PIC202208-202309
OAK,TRIM4#
BLUISH GRAY,TRIM1#; BLUISH GRAY,TRIM1#,2#
BLUISH GRAY,TRIM1#; BLUISH GRAY,TRIM1#,2#
main55301-60A60-B0iGDJ79..5F..STD;GDJL79..DCB..STD;GDJ79..PIC..5F..LX;GDJ79..6FC..STD..CBU;GDJ71,76..LHD..6FC..GEN;GDJ79..DCB..6FC..STD..IV;GDJ76,L76,L79..5F..LX..(ARL,GEN);GDJL76,GRJ71,76,79..(DCB,HT,PIC)..STD;GDJ78,L78,GRJ78,HZJ71,78,79..DCB,HT,PIC; HZJ76;GDJ79..DCB..LX;GDJ79..PIC..6FC..LX;GDJ71,76,GRJ71,76,79..LX..GCC;GDJ71,76,L76,L79..RHD..(DCB,HT)..6FC..LX202309
BLUISH GRAY,TRIM1#; BLUISH GRAY,TRIM1#,2#
OAK,TRIM4#
BLUISH GRAY,TRIM1#; BLUISH GRAY,TRIM1#,2#
BLUISH GRAY,TRIM1#
OAK,TRIM4#
BLUISH GRAY,TRIM1#
BLUISH GRAY,TRIM1#
BLUISH GRAY,TRIM1#
OAK,TRIM4#
BLUISH GRAY,TRIM1#
REAR DIFFERENTIAL-FINAL GEAR RATIO = 4.100, 4P, DIFF LOCK,SLATE GRAY,TRIM1#; REAR DIFFERENTIAL-FINAL GEAR RATIO = 4.300, 4P, DIFF LOCK,SLATE GRAY,TRIM1#
REAR DIFFERENTIAL-FINAL GEAR RATIO = 4.100, 4P, DIFF LOCK,MD.OAK,TRIM4#; REAR DIFFERENTIAL-FINAL GEAR RATIO = 4.300, 4P, DIFF LOCK,MD.OAK,TRIM4#
REAR DIFFERENTIAL-FINAL GEAR RATIO = 4.100, 4P, DIFF LOCK,SLATE GRAY,TRIM1#; REAR DIFFERENTIAL-FINAL GEAR RATIO = 4.300, 4P, DIFF LOCK,SLATE GRAY,TRIM1#
REAR DIFFERENTIAL-FINAL GEAR RATIO = 4.100, 4P, DIFF LOCK,MD.OAK,TRIM4#; REAR DIFFERENTIAL-FINAL GEAR RATIO = 4.300, 4P, DIFF LOCK,MD.OAK,TRIM4#
GCC SPEC(EXCEPT SAUDI ARABIA & UAE)&REAR DIFFERENTIAL-FINAL GEAR RATIO = 4.300, 4P, DIFF LOCK,SLATE GRAY,TRIM1#; REAR DIFFERENTIAL-FINAL GEAR RATIO = 4.100, 4P, DIFF LOCK,SLATE GRAY,TRIM1#; REAR DIFFERENTIAL-FINAL GEAR RATIO = 4.300, 4P, DIFF LOCK,SLATE GRAY,TRIM1#
GCC SPEC(EXCEPT SAUDI ARABIA & UAE)&REAR DIFFERENTIAL-FINAL GEAR RATIO = 4.300, 4P, DIFF LOCK,MD.OAK,TRIM4#; REAR DIFFERENTIAL-FINAL GEAR RATIO = 4.100, 4P, DIFF LOCK,MD.OAK,TRIM4#; REAR DIFFERENTIAL-FINAL GEAR RATIO = 4.300, 4P, DIFF LOCK,MD.OAK,TRIM4#
REAR DIFFERENTIAL-FINAL GEAR RATIO = 4.100, 4P, DIFF LOCK&HEADLAMP LEVELING DEVICE-WITH,SLATE GRAY,TRIM1#; REAR DIFFERENTIAL-FINAL GEAR RATIO = 4.300, 4P, DIFF LOCK&HEADLAMP LEVELING DEVICE-WITH,SLATE GRAY,TRIM1#; SAUDI ARABIA SPEC&REAR DIFFERENTIAL-FINAL GEAR RATIO = 4.100, 4P, DIFF LOCK,SLATEGRAY,TRIM1#; SAUDI ARABIA SPEC&REAR DIFFERENTIAL-FINAL GEAR RATIO = 4.300, 4P, DIFF LOCK,SLATEGRAY,TRIM1#
REAR DIFFERENTIAL-FINAL GEAR RATIO = 4.100, 4P, DIFF LOCK&HEADLAMP LEVELING DEVICE-WITH,MD.OAK,TRIM4#; REAR DIFFERENTIAL-FINAL GEAR RATIO = 4.300, 4P, DIFF LOCK&HEADLAMP LEVELING DEVICE-WITH,MD.OAK,TRIM4#; SAUDI ARABIA SPEC&REAR DIFFERENTIAL-FINAL GEAR RATIO = 4.100, 4P, DIFF LOCK,MD.OAK,TRIM4#; SAUDI ARABIA SPEC&REAR DIFFERENTIAL-FINAL GEAR RATIO = 4.300, 4P, DIFF LOCK,MD.OAK,TRIM4#
HEADLAMP LEVELING DEVICE-WITH,SLATE GRAY,TRIM1#; SAUDI ARABIA SPEC,SLATE GRAY,TRIM1#
HEADLAMP LEVELING DEVICE-WITH,MD.OAK,TRIM4#; SAUDI ARABIA SPEC,MD.OAK,TRIM4#
REAR DIFFERENTIAL-FINAL GEAR RATIO = 3.909, 4P, DIFF LOCK,SLATE GRAY,TRIM1#
REAR DIFFERENTIAL-FINAL GEAR RATIO = 3.909, 4P, DIFF LOCK,MD.OAK,TRIM4#
55308BBRACE SUB-ASSY, INSTRUMENT PANEL TO COWL, NO.3
55315ASPACER, INSTRUMENT PANEL, NO.1
55331REINFORCEMENT, INSTRUMENT PANEL
55354BRACE, INSTRUMENT PANEL TO FLOOR
55355BPLATE, INSTRUMENT PANEL, RH
SLATE GRAY,TRIM1#
MD.OAK,TRIM4#
BLUISH GRAY,TRIM1#
OAK,TRIM4#
BLUISH GRAY,TRIM1#
OAK,TRIM4#
SLATE GRAY,TRIM1#
MD.OAK,TRIM4#
55356BPLATE, INSTRUMENT PANEL, LH
SLATE GRAY,TRIM1#
MD.OAK,TRIM4#
main55356-60160-B0iVDJ78,L78;HZJ79..IV;HZJ76,79..LHD..(DCB,HT)..GEN;GRJ71,79,HZJ78,VDJ76..(DCB,HT)..GEN;GRJ76,78,79,HZJ71,VDJ79,L79..(HT,PIC)..STD..(CBU,IV); VDJ79..DCB;HZJ76,79..RHD;GRJ79,VDJ79,L79..LX;HZJ79..LHD..PIC..GEN..CBU;GRJ71,76,79,VDJ76,L76,L79..(DCB,HT)..(ARL,GCC)201608-202309
BLUISH GRAY,TRIM1#; BLUISH GRAY,TRIM1#,2#
OAK,TRIM4#
BLUISH GRAY,TRIM1#
BLUISH GRAY,TRIM1#
OAK,TRIM4#
SLATE GRAY,TRIM1#
MD.OAK,TRIM4#
55357APROTECTOR, EDGE, NO.1
55358KCUSHION, INSTRUMENT PANEL, NO.4
55401EPAD SUB-ASSY, INSTRUMENT PANEL SAFETY
BLUISH GRAY,TRIM1#
OAK,TRIM4#
BLUISH GRAY,TRIM1#
OAK,TRIM4#
55433BPANEL, INSTRUMENT PANEL FINISH, LOWER NO.2
HEADLAMP LEVELING DEVICE-WITH,SLATE GRAY,TRIM1#; SAUDI ARABIA SPEC,SLATE GRAY,TRIM1#; SLATE GRAY,TRIM1#
HEADLAMP LEVELING DEVICE-WITH,MD.OAK,TRIM4#; MD.OAK,TRIM4#; SAUDI ARABIA SPEC,MD.OAK,TRIM4#
BLUISH GRAY,TRIM1#
OAK,TRIM4#
55950NOZZLE ASSY, DEFROSTER
main55950-90K01iFZJ79,HZJ79..STD..GCC; FZJ79..LX;FZJ79,HZJ79..LHD..GEN;FZJ71,76,78,HZJ71,76,78..LHD200701-200907
HEATER-BOOST VENTILATOR; HEATER-W(FRONT)
55959COVER, DEFROSTER NOZZLE OPENING, NO.1
55959ACOVER, DEFROSTER NOZZLE OPENING, NO.1
55969COVER, DEFROSTER NOZZLE OPENING, NO.2
55969ACOVER, DEFROSTER NOZZLE OPENING, NO.2
55970ADUCT ASSY, SIDE DEFROSTER, RH
SIDE DEFROSTER-WITH
55980ADUCT ASSY, SIDE DEFROSTER, LH
SIDE DEFROSTER-WITH
55989COVER, DEFROSTER NOZZLE OPENING, CENTER
5534560010GARNISH, GLOVE COMPARTMENT, UPPER
main55345-60010
9011906350
main90119-06350
9016850027
main90168-50027
9017906115
main90179-06115
9017908102
main90179-08102
9018905024
main90189-05024
9046706157
main90467-06157
9046804147
main90468-04147
9095001329
main90950-01329
9155180610
main91551-80610
9155180612
main91551-80612
9162640618
main91626-40618
9165160816
main91651-60816
33 parts on this diagram · 30 diagrams in section
