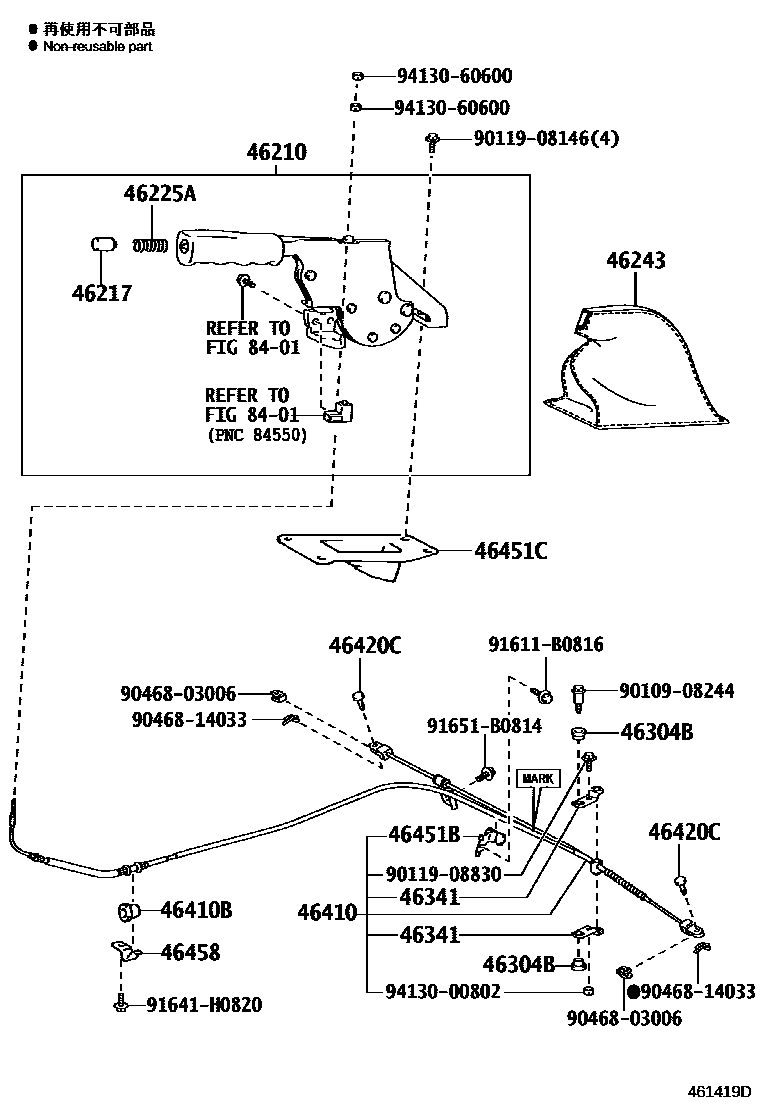

PARKING BRAKE & CABLE

0001 1 0002 1 0006 1 0009 1 0011 1 0012 1

46210LEVER ASSY, PARKING BRAKE

main46210-60230-B0iFZJ7#200701-200907

SHADOW GRAY,TRIM1#

main46210-60230-C0iHZJ71..HT;GRJ7#,HZJ76,78,79,VDJ7#; HZJ71..SOT201208-201608

BLACK,TRIM1#; BLACK,TRIM1#,4#

main46210-60230-E0iGRJ7#,HZJ7#200701-201208

SANDAL WOOD,TRIM4#

main46210-60240-B0iVDJ7#200701-201208

SHADOW GRAY,TRIM1#

main46210-60240-E0iVDJ7#200701-201208

SANDAL WOOD,TRIM4#

46217KNOB, PARKING BRAKE RELEASE ROD

main46217-20020-B3iFZJ7#200701-200907

SHADOW GRAY,TRIM1#

main46217-20020-C0iVDJ76;VDJ79..LX..GCC; VDJ78,L78;VDJ79..STD..GCC; VDJL76;VDJL79..STD202309-202409

BLACK,TRIM1#,2#; BLACK,TRIM1#,2#,4#; BLACK,TRIM1#,4#

main46217-20020-E4iGRJ7#,HZJ7#200701-201208

SANDAL WOOD,TRIM4#

46225ASPRING, COMPRESSION(FOR PARKING BRAKE PAWL ROD)

main90501-10138iGDJ7#,L7#,GRJ7#,HZJ7#202309

46243COVER, PARKING BRAKE LEVER

main46243-60060-B0iGRJ7#,HZJ7#,VDJ7#200701-201208

BLUISH GRAY,TRIM1#

main46243-60060-C0iGRJ71,HZJ71,VDJL79..(PIC,SOT)..STD; VDJ78,L78;HZJ79..IV;HZJ76,79..LHD..(DCB,HT)..GEN;GRJ71,79,HZJ78,VDJ76..(DCB,HT)..GEN;GRJ76,78,79,HZJ71,VDJ79..(HT,PIC)..STD..(CBU,IV); VDJ79..DCB;HZJ76,79..RHD;GRJ79,VDJ79..LX;HZJ79..LHD..PIC..GEN..CBU;GRJ71,76,79,VDJ76,L76,L79..(DCB,HT)..(ARL,GCC)201608-202309

BLACK,TRIM1#; BLACK,TRIM1#,2#,4#; BLACK,TRIM1#,4#

main46243-60060-E0iGRJ7#,HZJ7#,VDJ7#200701-201208

OAK,TRIM4#

main46243-60130-C0iGRJ71,HZJ71..SOT;GDJ79,L7#..5F..ARL; GRJ71..HT..5F;GDJ76..5F..GEN;GDJ79,GRJ79..PIC..5F..LX;GDJ78,79,GRJ76,78,79,HZJ71,78,79..(DCB,HT,PIC)..5F..STD..(GCC,GEN); HZJ76;GDJ76,79,GRJ76,79..(DCB,HT)..5F..LX..GCC202309

BLACK,TRIM1#; BLACK,TRIM1#,2#,4#; BLACK,TRIM1#,4#

main46243-60140-C0iGDJ76,79,GRJ76,79..(DCB,HT)..6FC..LX..GCC; GDJ76,79,L76,L79..6FC..ARL; GDJ76..6FC..GEN;GDJ79..PIC..6FC..LX;GDJ79..6FC..STD..CBU;GRJ79..DCB..6FC..STD;GDJ71,78,L78,GRJ71,78,79..(HT,PIC)..6FC202309

BLACK,TRIM1#; BLACK,TRIM1#,2#,4#; BLACK,TRIM1#,4#

46304BBUSH(FOR PARKING BRAKE EQUALIZER)

main90385-12012×2iFZJ7#200701-200907

46341EQUALIZER, PARKING BRAKE

main46341-35030×2iFZJ7#200701-200907

46410CABLE ASSY, PARKING BRAKE, NO.1

main46410-60780iHZJ71..RHD200701-201608

MARK=78

main46410-60790iGRJ71,HZJ71..LHD200701-201608

MARK=79

main46410-60830iGRJ78..RHD; VDJ78200701-201208

REAR WHEEL BRAKE-DRUM 295LT

main46410-60840iFZJ78..LHD200701-200907

MARK=84

main46410-60850iFZJ79..RHD200701-200907

MARK 85

main46410-60860iFZJ79..LHD200701-200907

MARK=86

main46410-60A10iGRJ76,HZJ76..LHD200701-201608

MARK=A1

main46410-60A40iGRJ71,HZJ71..LHD201608-202309

MARK=78

main46410-60A80supersedes 46410-60A70iHZJ79..RHD..DCB; VDJ79..DCB201208-201608

REAR WHEEL BRAKE-DISC FS14 18V,W(REAR DISC BRAKE); W(REAR DISC BRAKE)

main46410-60B10iGDJ71,HZJ71..RHD202309

MARK=78

main46410-60B20iVDJ78202309-202409

MARK=78

main46410-60B40iHZJ78..RHD202309

MARK=78

main46410-60B50iVDJ78,L78..ARL201608-202309

MARK=78

main46410-60B60iGDJ79,GRJ79,HZJ79..LHD..PIC202309

MARK=78

main46410-60B80iGDJ79,GRJ79,HZJ79..RHD..PIC..CBU202309

MARK=78

main46410-60B90iGRJ79,VDJ79..RHD..PIC..CBU; HZJ79..RHD..PIC201608-201709

MARK=78; REAR WHEEL BRAKE-DISC FS14 18V,MARK=78

main46410-60C00iVDJ76..GCC202309-202409

MARK=78

main46410-60C20iVDJ76..GEN201709-202309

MARK=78

main46410-60C30iGDJL76202309-202509

MARK=78

main46410-60C60iGDJ79..RHD..DCB..6FC..CBU202410

MARK=78

main46410-60C70iVDJL79..DCB..STD202309-202409

MARK=78

main46410-60C80iGRJ79..LHD..DCB;GDJ79,HZJ79..LHD..DCB..5F202309

MARK=78

main46410-60D00iVDJL79..PIC..STD202309-202409

MARK=78

main46410-60D10iGDJ78..LHD202309

MARK=78

main46410-60D20iGDJ78..RHD202309

MARK=78

main46410-60D30iGDJL78202309-202508

MARK=78

main46410-60D40iGDJ79..LHD..DCB202309-202410

MARK=78

main46410-60D50iGDJ79..RHD..DCB..CBU202309-202410

MARK=78

main46410-60D60iGDJ79,L79..DCB..IV202309-202508

MARK=78

main46410-6A010supersedes 46410-60820iHZJ76..RHD; VDJ76200701-201608

REAR WHEEL BRAKE-DISC FS14 18V

main46410-6A020supersedes 46410-60830iHZJ78..RHD; VDJ78200701-201608

REAR WHEEL BRAKE-DISC FS14 18V

main46410-6A030supersedes 46410-60850iGRJ79..RHD..PIC201408-201608

MARK 03

main46410-60820iVDJ76200701-201208

REAR WHEEL BRAKE-DRUM 295LT

main46410-60A20iGRJ76..GCC;HZJ76..LHD200701-201608

REAR WHEEL BRAKE-DISC FS14 18V,W(REAR DISC BRAKE)

main46410-60A30iHZJ79..IV;GRJ79..LHD..PIC..GEN201208-201608

REAR WHEEL BRAKE-DISC FS14 18V,MARK A3

main46410-60A50iHZJ71..RHD201208-201608

REAR WHEEL BRAKE-DISC FS14 18V

main46410-60A60iGRJ71,HZJ71..LHD201208-201608

REAR WHEEL BRAKE-DISC FS14 18V

main46410-60B00supersedes 46410-60A90iGRJ79,HZJ79..LHD..DCB201208-201608

REAR WHEEL BRAKE-DISC FS14 18V,MARK=B0

main46410-60B30iGRJ78..GCC201608-201701

REAR WHEEL BRAKE-DISC FS14 18V,MARK=78

main46410-60B70iGRJ79,HZJ79..LHD..PIC..GEN201608-201709

REAR WHEEL BRAKE-DISC FS14 18V,MARK=78

main46410-60C10iGRJ76,HZJ76..LHD..GEN201608-201709

REAR WHEEL BRAKE-DISC FS14 18V,MARK=78

main46410-60C40iHZJ71..RHD201608-201709

REAR WHEEL BRAKE-DISC FS14 18V,MARK=78

main46410-60C50iGRJ71,HZJ71..LHD..GEN201608-201709

REAR WHEEL BRAKE-DISC FS14 18V,MARK=78

main46410-60C90iGRJ79..DCB..GCC201608-201701

REAR WHEEL BRAKE-DISC FS14 18V,MARK=78

main46410-6A090iGRJ78;HZJ78..GCC201208-201608

REAR WHEEL BRAKE-DISC FS14 18V,MARK=09

46410BGROMMET(FOR PARKING BRAKE FRONT CABLE)

main90480-17158iFZJ71200701-200907

46420CPIN, W/HOLE(FOR PARKING BRAKE CABLE)

main90240-08059×2iFZJ7#200701-200907

46451BBRACKET, PARKING BRAKE CABLE SUPPORT

main46451-60180iFZJ71200701-200907

46451CBRACKET, PARKING BRAKE CABLE SUPPORT, NO.1

main46451-60120iGRJ71,HZJ71..SOT201608-202309

main46451-60130iGDJ79..PIC..IV;GDJ79,GRJ79,HZJ79..DCB;GDJ71,76,L76,L79,GRJ71,76,HZJ71,76..DCB,HT,PIC202309

main46451-60140iFZJ79200701-200907

main46451-60150iVDJ78,L78202309-202409

46458RETAINER, CABLE

main46458-30020iFZJ71200701-200907

8401SWITCH & RELAY & COMPUTER

→ Go to FIG 84-01

9010908244

main90109-08244

9011908146

main90119-08146

9011908830

main90119-08830

9046803006

main90468-03006

9046814033

main90468-14033

91611B0816

main91611-B0816

91641H0820

main91641-H0820

91651B0814

main91651-B0814

9413000802

main94130-00802

9413060600

main94130-60600

23 parts on this diagram · 6 diagrams in section
