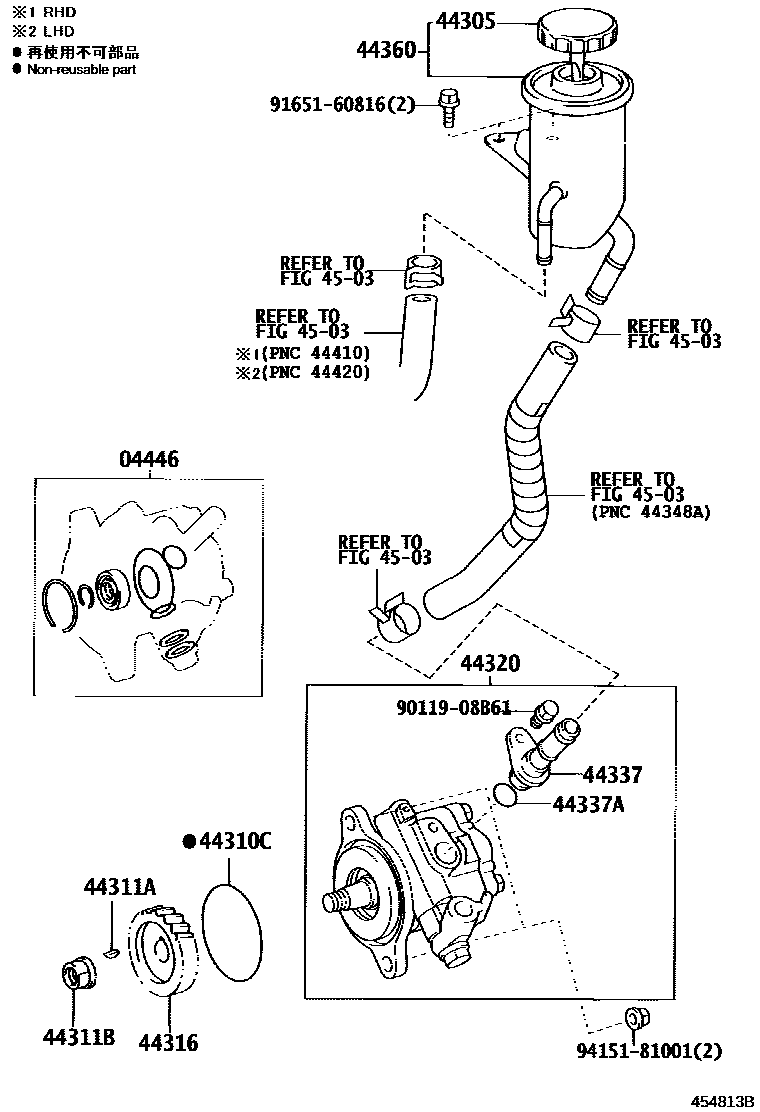

VANE PUMP & RESERVOIR (POWER STEERING)

0001 1 0002 1 0003 1 0004 1 0005 1

04446GASKET KIT, POWER STEERING PUMP

main04446-26110iGDJ7#,L7#202309

main04446-60130iHZJ7#202309

main04446-60140iFZJ7#200701-200906

main04446-60260iGRJ71,78..RHD200907-201208

44305CAP SUB-ASSY, VANE PUMP OIL RESERVOIR

main44305-22040iHZJ7#200701-200801

main44305-22060iHZJ7#200802-201204

main44305-22061iHZJ76,78,79..GCC201608-201612

main44305-24030iFZJ7#200701-200709

main44305-24050iFZJ7#200710-200907

main44305-60020iVDJ7#200701-200801

main44305-60040iVDJ79..GCC;VDJL79..STD;VDJ76,78,L76,L78202309-202409

44310PUMP ASSY, VANE

main44310-60450iHZJ76,78,79..GCC201608-201612

main44310-60460iVDJ7#200701-201608

main44310-60580iGRJ71,78..RHD200907-201208

main44310-60750iGDJ7#,L7#202309

44310CRING, O(FOR VANE PUMP)

main90301-60002iVDJ79..RHD;VDJL79..LX202309-202508

main90301-73004iFZJ7#200701-200907

44311AKEY, VANE PUMP PULLEY

main90280-05008iFZJ7#200701-200907

44311BNUT(FOR VANE PUMP PULLEY)

main90179-14009iFZJ7#200701-200907

44316GEAR, VANE PUMP

main44316-60020iFZJ7#200701-200907

main44316-60060iHZJ7#..GEN201608-202309

main44316-60080iVDJ7#,L7#..CBU,IV201608-202309

44320PUMP ASSY, VANE

main44320-60380iFZJ7#200701-200907

44337UNION, POWER STEERING SUCTION PORT

main44337-60170iFZJ7#200701-200907

main44337-60180iHZJ76,78,79..GCC201608-201612

main44337-60190iVDJ79..RHD;VDJL79..LX202309-202508

main44337-60250iGRJ79;GRJ71,76,78..LHD200907-201608

main44337-60300iGDJ7#,L7#202309

44337ARING, O(FOR POWER STEERING SUCTION PORT)

main90301-15025iVDJ79..RHD;VDJL79..LX202309-202508

44360RESERVOIR ASSY, VANE PUMP OIL

main44360-60101iHZJ7#200701-201608

main44360-60240iFZJ7#200701-200907

main44360-60280iGRJ7#202309

main44360-60380iGDJ7#,L7#202309

4503

9011908B61

main90119-08B61

9165160816

main91651-60816

9415181001

main94151-81001

15 parts on this diagram · 5 diagrams in section
