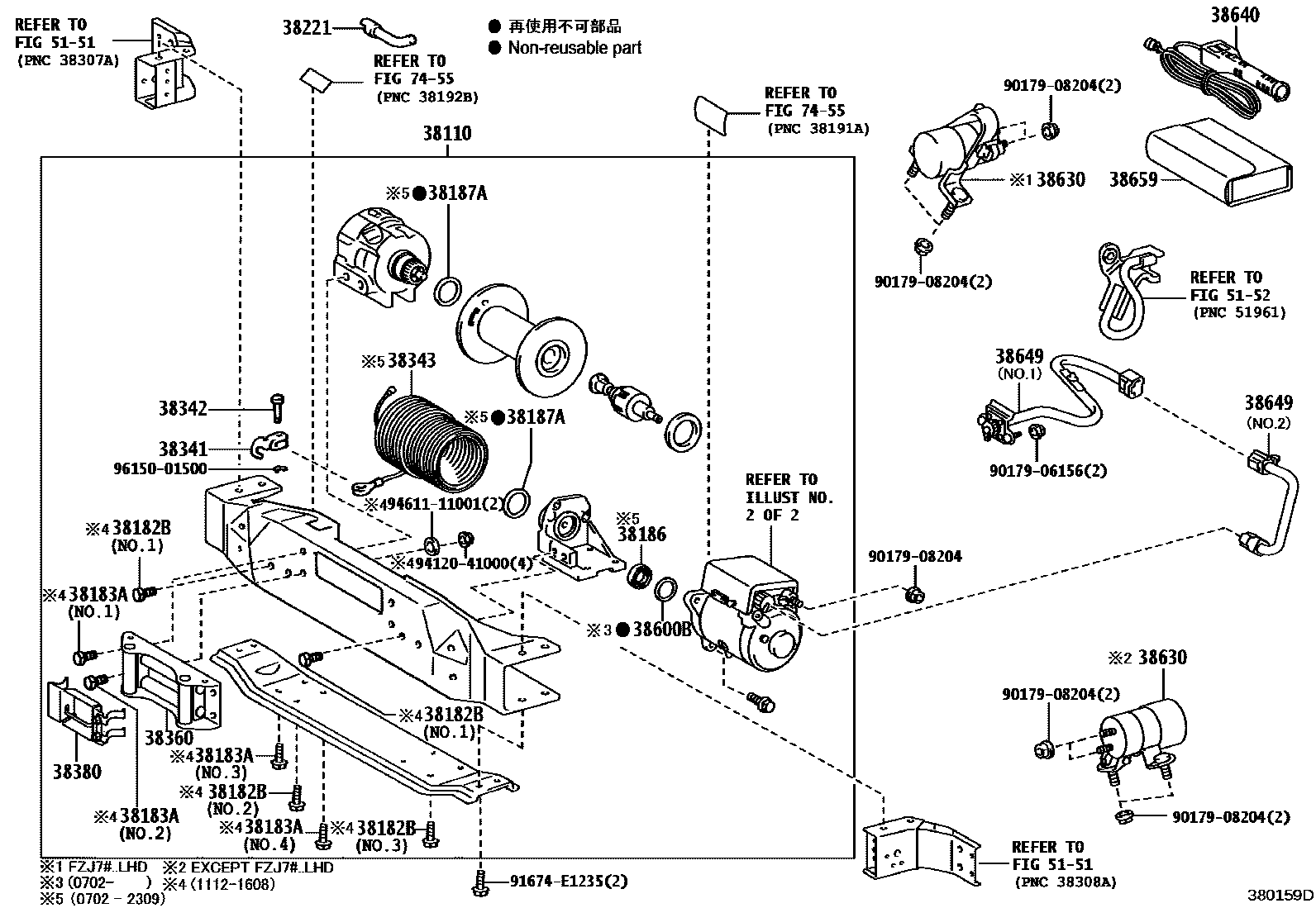

WINCH

0001 1 0009 1

38110WINCH ASSY

main38110-60224iFZJ7#,HZJ7#200701-200702

WINCH-WITH(ELECTRIC)

main38110-60280iFZJ7#200702-200907

WINCH-WITH(ELECTRIC)

main38110-60281iHZJ76,78,79..GCC201608-201612

WINCH-WITH

38182BBOLT, WINCH, NO.1

main38182-41022×4iGRJ71,78..RHD201112-201208

*10-1.25PX22-22,WINCH-WITH(ELECTRIC),NO.1

main38182-61022iGRJ79,HZJ7#;GRJ71,76,78..LHD201112-201608

WINCH-WITH(ELECTRIC),NO.2

main38182-81235iGRJ71,78..RHD201112-201208

WINCH-WITH(ELECTRIC),NO.3

38183ABOLT, WINCH, NO.2

main38183-41022×2iGRJ71,78..RHD201112-201208

WINCH-WITH(ELECTRIC),NO.1

main38183-41025×2iGRJ79,HZJ7#;GRJ71,76,78..LHD201112-201608

WINCH-WITH(ELECTRIC),NO.2

main38183-61025iGRJ71,78..RHD201112-201208

WINCH-WITH(ELECTRIC),NO.3

main38183-61235×5iGRJ79,HZJ7#;GRJ71,76,78..LHD201112-201608

WINCH-WITH(ELECTRIC),NO.4

38186SEAL, GEAR CASE COVER OIL

main38186-60170iFZJ7#200702-200907

WINCH-WITH(ELECTRIC)

38187ARING, WINCH

main38187-60170×2iFZJ7#200702-200907

WINCH-WITH(ELECTRIC)

38221LEVER, CLUTCH HUB SHIFT

main38221-60250iFZJ7#200701-200907

WINCH-WITH(ELECTRIC)

38341HOOK, WINCH WIRE

main38341-60171iFZJ7#200702-200907

WINCH-WITH(ELECTRIC)

38342PIN, WINCH WIRE HOOK

main38342-60170iFZJ7#200702-200907

WINCH-WITH(ELECTRIC)

38343WINCH WIRE

main38343-60171iFZJ7#200702-200907

WINCH-WITH(ELECTRIC)

38360BRACKET ASSY, WINCH ROLLER

main38360-60083iVDJ76,79..GCC;HZJ76,78,79..GEN;GRJ7#,HZJ71,VDJ78..GCC,GEN201608-202309

WINCH-WITH

38380HOLDER ASSY, WINCH HOOK

main38380-60022iFZJ7#200702-200907

WINCH-WITH(ELECTRIC)

38600BRING, O (FOR WINCH MOTOR)

main90301-59044iFZJ7#200702-200907

WINCH-WITH(ELECTRIC)

38630SWITCH ASSY, MAGNET, NO.1

main38630-60170iFZJ71,78,79..RHD200701-200907

WINCH-WITH(ELECTRIC)

main38630-60171iVDJ7#..GCC202309-202409

WINCH-WITH

main38630-60180iFZJ7#..LHD200701-200907

WINCH-WITH(ELECTRIC)

38640SWITCH ASSY, WINCH CONTROL

main38640-35010iFZJ7#,HZJ7#200701-200712

WINCH-WITH(ELECTRIC)

main38640-60030iFZJ7#200801-200907

WINCH-WITH(ELECTRIC)

38649WIRE, WINCH CONTROL

main38649-60050iFZJ7#200701-200907

WINCH-WITH(ELECTRIC),NO.1

main38649-60051iHZJ76,78,79..GCC201608-201612

WINCH-WITH,NO.1

main38649-60060iGDJ7#,GRJ7#,HZJ7#..GCC,GEN202309

WINCH-WITH,NO.2

main38649-60090iGDJ7#,GRJ7#,HZJ7#..GCC,GEN202410

WINCH-WITH

38659COVER, WINCH CONTROL SWITCH

main38659-60010iFZJ7#200701-200907

WINCH-WITH(ELECTRIC)

5151FRAME

→ Go to FIG 51-51

5152SUSPENSION CROSSMEMBER & UNDER COVER

→ Go to FIG 51-52

7455CAUTION PLATE

→ Go to FIG 74-55

9017906156

main90179-06156

9017908204

main90179-08204

91674E1235

main91674-E1235

9412041000

main94120-41000

9461111001

main94611-11001

9615001500

main96150-01500

25 parts on this diagram · 2 diagrams in section
