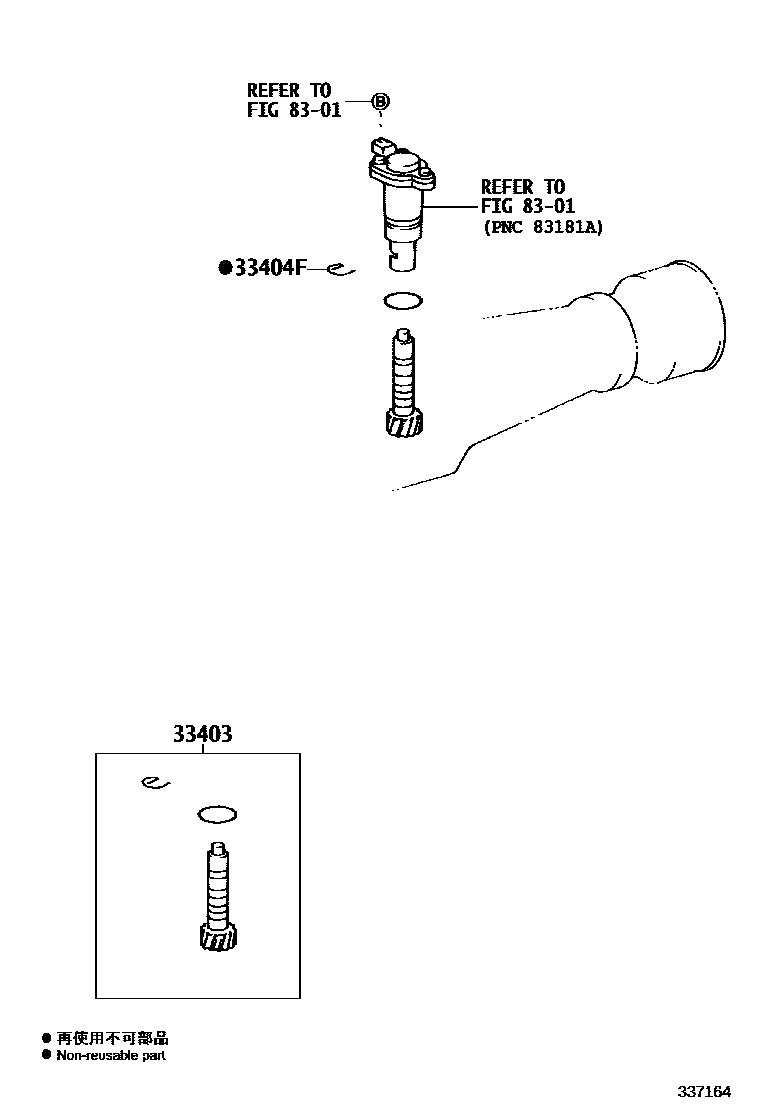

SPEEDOMETER DRIVEN GEAR (MTM)

33403GEAR SUB-ASSY, SPEEDOMETER DRIVEN (MTM)

main33403-19595supersedes 33403-80002i200701-200907

N=32,MARK 12:32; N=32,MARK 12:32,TIRE & DISC WHEEL-225/95R16 SAND 5.50F; N=32,MARK 12:32,TIRE & DISC WHEEL-225/95R16 SAND 5.50F(SILVER); N=32,MARK 12:32,TIRE & DISC WHEEL-7.50R16-8 SAHARA 5.50F

main33403-69185i200701-201608

N=17,MARK 17:6

main33403-80001i200701-201208

N=31,MARK 31:12

main33403-80002i200701-201208

N=33,MARK 33:12

main33403-69175i202309

N=16,MARK 16:6,TIRE & DISC WHEEL-225/95R16 6J WITHOUT(TUBE)

33404SLEEVE SUB-ASSY, SPEEDOMETER SHAFT (MTM)

main33404-30040i201608-202309

33404FCLIP (FOR MTM SPEEDOMETER SHAFT SLEEVE)

main90468-12005i202309

8301METER

→ Go to FIG 83-01

4 parts on this diagram · 2 diagrams in section
