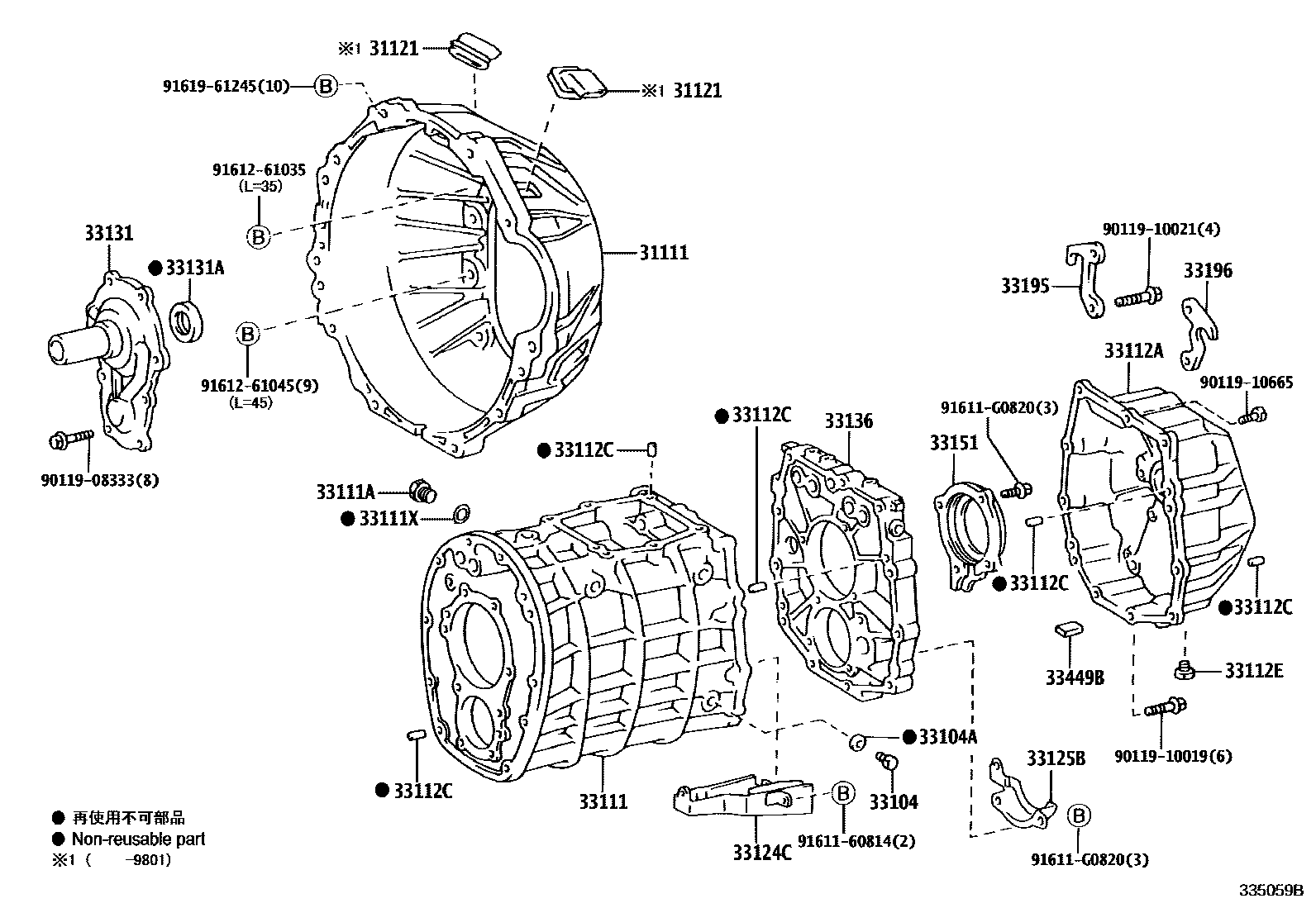

CLUTCH HOUSING & TRANSMISSION CASE (MTM)

0001 1H150,H151 0002 1R151,R151F 0003 1H150,H152 0006 1H150 0009 1H153

31111HOUSING, CLUTCH

main31111-60302iFZJ7#200701-200907

main31111-60321iHZJ7#200701-201608

main31111-60370iVDJ7#200701-201608

main31111-60400iGRJ79;GRJ71,76,78..LHD200907-201608

main31111-60410iGDJ76,78,79,L7#..5F202410

31121COVER, CLUTCH HOUSING, NO.1

main31101-60030iGRJ79;GRJ71,76,78..LHD200907-201608

main31121-60080iVDJ7#,L7#202309-202310

main31121-60081iVDJ79..RHD;VDJL79..LX202311-202508

33104PLUG SUB-ASSY, DRAIN(MTM)

main90341-18006iGDJ76,78,79,L7#,GRJ7#,HZJ7#..5F202309

33104AGASKET, DRAIN PLUG(MTM)

main90430-18008iFZJ7#200701-200907

33111CASE, MANUAL TRANSMISSION

main33101-60040iHZJ7#200701-201109

main33101-60041iHZJ7#201109-201608

main33111-60240iFZJ7#200701-200907

main33111-60260iVDJ7#200701-200907

main33111-60300iGRJ79;GRJ71,76,78..LHD200907-201608

main33111-60301iGRJ7#201802-202309

main33111-60310iVDJ78,79200907-201208

main33111-60311iVDJ79..GCC;VDJL79..STD;VDJ76,78,L76,L78202309-202409

main33111-60360iGDJ76,78,79,L7#..5F202410

33111APLUG, MANUAL TRANSMISSION CASE

main90341-18006iGRJ7#,VDJ7#,L7#..CBU,IV201608-202309

33111XGASKET, TRANSMISSION CASE PLUG

main90430-18008iVDJ79..GCC;VDJL79..STD;VDJ76,78,L76,L78202309-202409

33112AADAPTER, TRANSFER

main36117-60072iGRJ7#,VDJ7#200701-201111

main36117-60170iGRJ71,78..RHD201111-201208

33112CPIN, STRAIGHT(FOR TRANSFER ADAPTER)

main90250-10025×4iFZJ7#200701-200907

L=10,OD=10

main90250-12002×8iGRJ71,78..RHD200701-201208

L=16,OD=12

33112EPLUG, W/HEAD STRAIGHT SCREW(FOR TRANSFER ADAPTER)

main90341-12008iGRJ71,78..RHD200701-201208

33124CPIPE, OIL RECEIVER, NO.1(MTM)

main33124-60020iFZJ7#200701-200907

main33124-60070iVDJ79..GCC;VDJL79..STD;VDJ76,78,L76,L78202309-202409

33125BRECEIVER, MANUAL TRANSMISSION CASE

main33125-60010iGRJ79,VDJ7#;GRJ71,76,78..LHD200701-201608

33131RETAINER, BEARING, FRONT(MTM)

main33131-60070iFZJ7#200701-200907

main33131-60080iHZJ76,78,79..GCC201608-201612

main33131-60081iHZJ7#201804-202309

main33131-60100iGRJ79,VDJ7#;GRJ71,76,78..LHD200701-201608

33131ASEAL, OIL(FOR TRANSMISSION FRONT BEARING RETAINER)

main90311-32012iHZJ7#200701-200706

main90311-32022iHZJ7#202309

main90311-35023iGRJ71,78..RHD200701-201208

33136PLATE, TRANSMISSION INTERMEDIATE

main33136-60021iFZJ7#200701-200907

33151RETAINER, OUTPUT SHAFT REAR BEARING(MTM)

main33151-35020iHZJ7#..GEN201608-202309

main33151-60030iGRJ79,VDJ7#;GRJ71,76,78..LHD200701-201608

33195HANGER, TRANSMISSION CASE, NO.1

main33195-60012iFZJ7#200701-200907

33196HANGER, TRANSMISSION CASE, NO.2

main33196-60010iGRJ79,VDJ7#;GRJ71,76,78..LHD200701-201608

33449BMAGNET, TRANSMISSION

main33449-35010iGDJ76,78,79,L7#,GRJ7#..5F202309

main33449-35030iHZJ7#200701-201608

9011908333

main90119-08333

9011910019

main90119-10019

9011910021

main90119-10021

9011910665

main90119-10665

9161160814

main91611-60814

91611G0820

main91611-G0820

9161261035

main91612-61035

9161261045

main91612-61045

9161961245

main91619-61245

28 parts on this diagram · 5 diagrams in section
