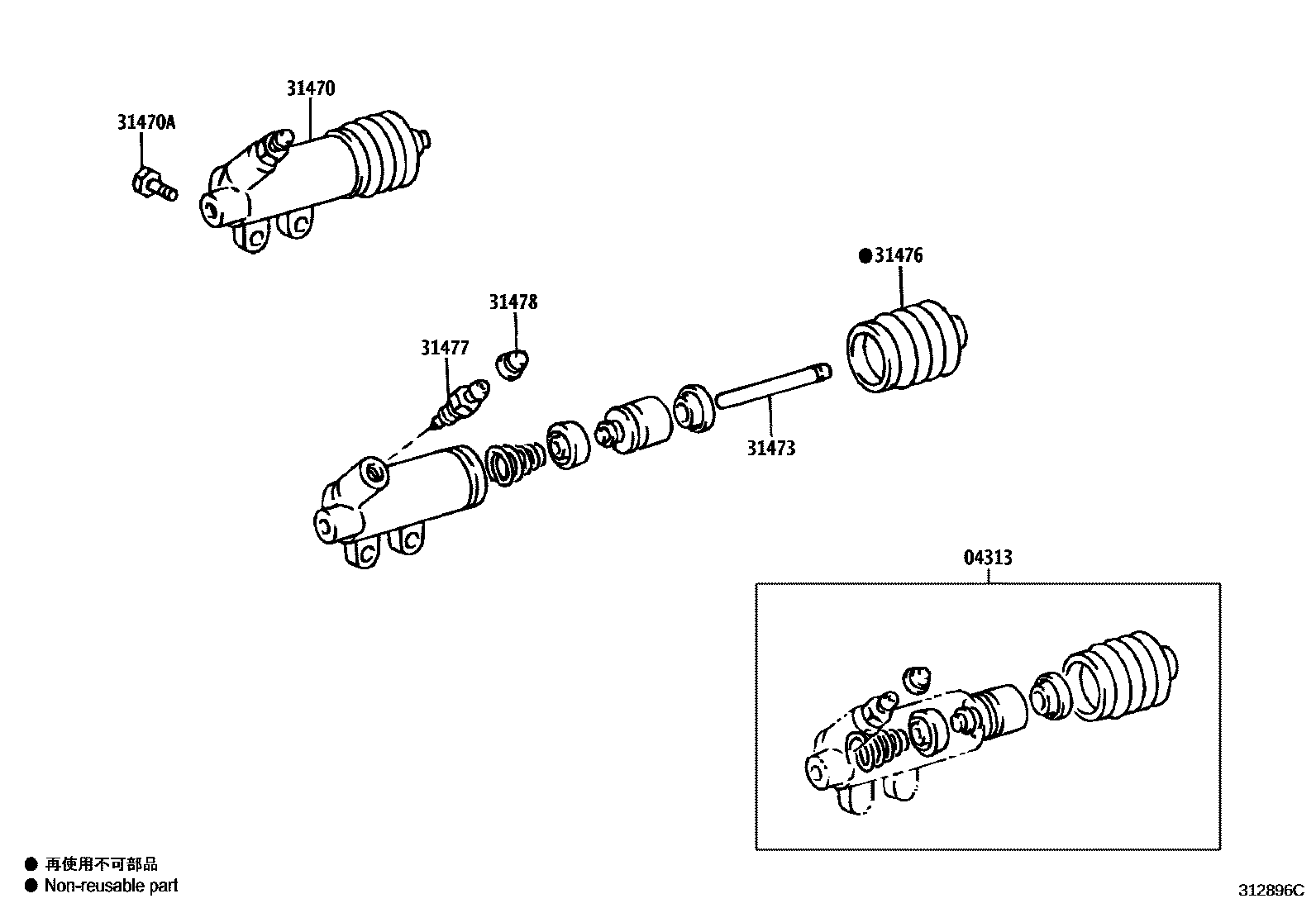

CLUTCH RELEASE CYLINDER

0001 1 0002 1 0005 1 0008 1

04313CYLINDER KIT, CLUTCH RELEASE

main04313-28020iHZJ7#200701-202309

main04313-34010iGRJ7#200907-201008

main04313-34011iGRJ7#201009-202309

main04313-60100iFZJ7#200701-200907

main04313-60150iVDJ76,78;VDJ79..GCC200701-202508

31470CYLINDER ASSY, CLUTCH RELEASE

main31470-35180iGRJ7#200907-201009

main31470-35181iGRJ79;GRJ71,76,78..LHD201009-202309

main31470-60171iFZJ7#200701-200907

main31470-60290iHZJ76,78,79..GCC200701-202309

main31470-60370iVDJ7#200701-201509

main31470-60371iVDJ79..GCC;VDJL79..STD;VDJ76,78,L76,L78201510-202508

main31470-60400iGDJ76,78,79,L7#..5F202410

31470ABOLT(FOR CLUTCH RELEASE CYLINDER SETTING)

main91611-B0825iFZJ7#200701-202508

*8-1.25PX25-25

31473ROD, CLUTCH RELEASE CYLINDER PUSH, NO.1

main31473-35060iGRJ7#..5F201009-202309

main31473-60130iFZJ7#200701-200907

main31473-60141iHZJ7#..GEN200701-201809

main31473-60142iHZJ7#201810-202309

main31473-60160iVDJ7#,L7#..CBU,IV200701-202508

31476BOOT, CLUTCH RELEASE CYLINDER

main31476-22010iHZJ76,78,79..GCC200701-202309

main31476-36010iFZJ7#200701-202508

31477PLUG, BLEEDER(FOR RELEASE CYLINDER)

main47547-12010iFZJ7#200701-202508

31478CAP, BLEEDER PLUG(FOR RELEASE CYLINDER)

main31478-30010iFZJ7#200701-202508

7 parts on this diagram · 4 diagrams in section
