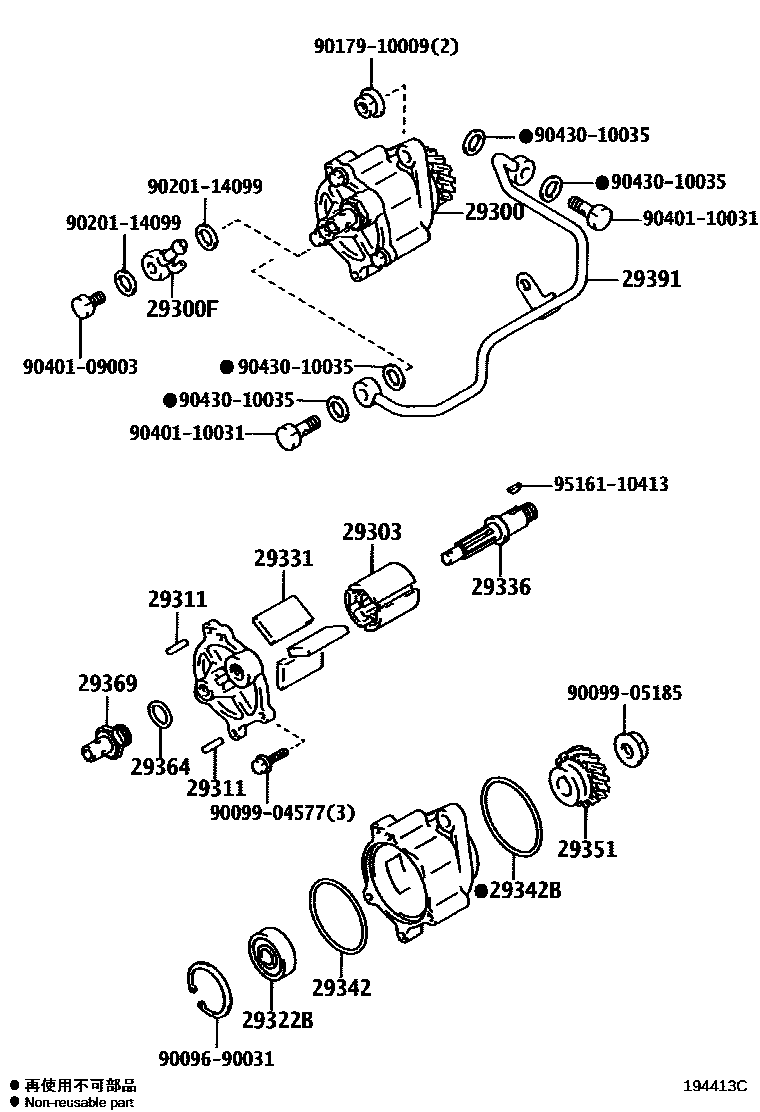

VACUUM PUMP
29300PUMP ASSY, VACUUM
(L)
main29300-0E011i1GDFTV..GDJ7#..GCC; 1GDFTV..GDJ71..GCC; 1GDFTV..GDJ71..GCC;1GDFTV..GDJ79..STD..GCC; 1GDFTV..GDJ76,78,79..RHD..GEN; 1GDFTV..GDJ76,79,L7#..ARL; 1GDFTV..GDJ78,79..STD..GCC; 1GDFTV..GDJ79..DCB..LX..CBU;1GDFTV..GDJ7#..(HT,PIC)..GCC; 1GDFTV..GDJ79..STD..GCC;1GDFTV..GDJ71,76,78..GCC202309-202312
(L); BAHRAIN SPEC&EXHAUST EMISSION CONTROL-DIESEL EURO5 WITH(ON BOARD DIAGNOSIS),(L); EXHAUST EMISSION CONTROL-DIESEL EURO4 WITHOUT(ON BOARD DIAGNOSIS),(L); FIJI SPEC&EXHAUST EMISSION CONTROL-DIESEL EURO4 WITHOUT(ON BOARD DIAGNOSIS),(L); FIJI SPEC&EXHAUST EMISSION CONTROL-DIESEL EURO5 WITH(ON BOARD DIAGNOSIS),(L); IRAQ SPEC&EXHAUST EMISSION CONTROL-DIESEL EURO5 WITH(ON BOARD DIAGNOSIS),(L); JORDAN SPEC&EXHAUST EMISSION CONTROL-DIESEL EURO5 WITH(ON BOARD DIAGNOSIS),(L); KENYA SPEC&EXHAUST EMISSION CONTROL-DIESEL EURO4 WITHOUT(ON BOARD DIAGNOSIS),(L); KUWAIT SPEC&EXHAUST EMISSION CONTROL-DIESEL EURO5 WITH(ON BOARD DIAGNOSIS),(L); OMAN SPEC&EXHAUST EMISSION CONTROL-DIESEL EURO5 WITH(ON BOARD DIAGNOSIS),(L); QATAR SPEC&EXHAUST EMISSION CONTROL-DIESEL EURO5 WITH(ON BOARD DIAGNOSIS),(L); SAUDI ARABIA SPEC&EXHAUST EMISSION CONTROL-DIESEL EURO5 WITH(ON BOARD DIAGNOSIS),(L); UAE SPEC&EXHAUST EMISSION CONTROL-DIESEL EURO5 WITH(ON BOARD DIAGNOSIS),(L); YEMEN SPEC&EXHAUST EMISSION CONTROL-DIESEL EURO5 WITH(ON BOARD DIAGNOSIS),(L)
(J)
29300FUNION
EXHAUST EMISSION CONTROL-DIESEL EURO4 WITHOUT(ON BOARD DIAGNOSIS); EXHAUST EMISSION CONTROL-DIESEL EURO5 WITH(ON BOARD DIAGNOSIS)
main90405-09142i1HZ..HZJ7#; 1HZ..HZJ71,79..RHD..(HT,PIC,SOT); 1HZ..HZJ76,78,79..RHD; 1HZ..HZJ79..LHD..CBU202309
AIR CONDITIONER-WITH; EXHAUST EMISSION CONTROL-DIESEL EURO2&HIGH ALTITUDE COMPENSATOR-WITH; EXHAUST EMISSION CONTROL-DIESEL EURO2&HIGH ALTITUDE COMPENSATOR-WITH&AIR CONDITIONER-WITH; PAKISTAN SPEC; PAKISTAN SPEC&AIR CONDITIONER-WITH; SOUTH AFRICA SPEC; SOUTH AFRICA SPEC&AIR CONDITIONER-WITH
29303ROTOR SUB-ASSY, VACUUM PUMP
29311PIN, VACUUM PUMP DOWEL, NO.1
29322BBEARING, VACUUM PUMP
29331BLADE, VACUUM PUMP, A
29336SHAFT, VACUUM PUMP
29342PACKING, VACUUM PUMP
29342BRING, O
29351GEAR, VACUUM PUMP
29364WASHER, VACUUM PUMP
29369VALVE SUB-ASSY, CHECK
29391TUBE, VACUUM PUMP
9009690031
main90096-90031
9009904577
main90099-04577
9009905185
main90099-05185
9017910009
main90179-10009
9020114099
main90201-14099
9040109003
main90401-09003
9040110031
main90401-10031
9043010035
main90430-10035
9516110413
main95161-10413
22 parts on this diagram · 3 diagrams in section
