V-BELT

0001 1 0003 1

1106TIMING GEAR COVER & REAR END PLATE

→ Go to FIG 11-06

1601WATER PUMP

→ Go to FIG 16-01

16361ABELT, V(FOR FAN & ALTERNATOR)

main90916-02353i1FZFE..FZJ7#200701-200907

main90916-02452i1HZ..HZJ7#..GEN201608-202309

main90916-02571i1GRFE..GRJ79..DCB200907-201608

main90916-02779i1GRFE..GRJ7#201907-202309

main99367-K2040i1GDFTV..GDJ7#,L7#202309

main99369-K2250i1VDFTV..VDJ79..RHD;1VDFTV..VDJL79..LX202309-202508

8719HEATING & AIR CONDITIONING - COMPRESSOR

→ Go to FIG 87-19

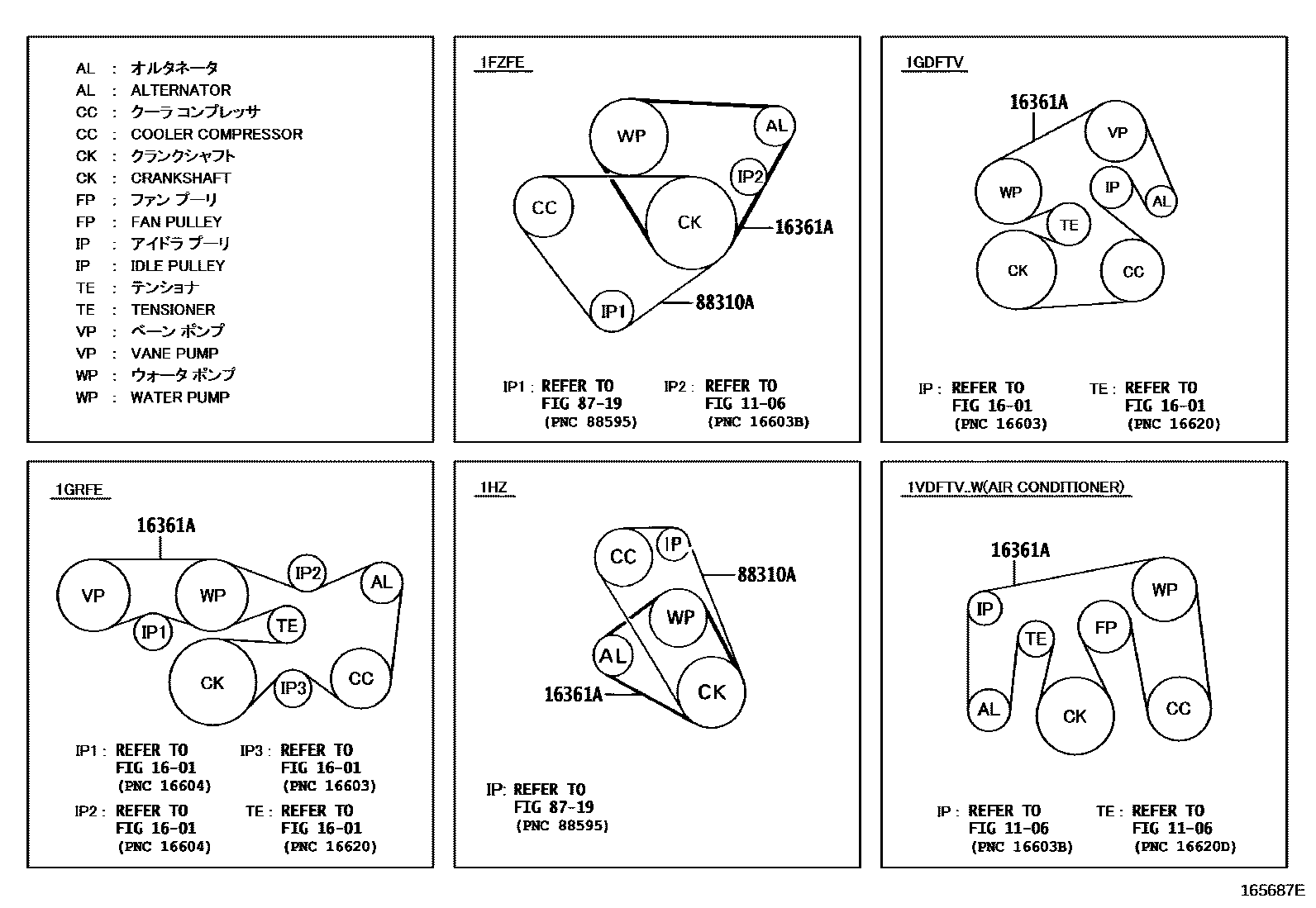

88310ABELT, V (COOLER COMPRESSOR TO CRANKSHAFT PULLEY), NO.1

main99332-11260iHZJ7#200701-201608

L=1260,AIR CONDITIONER-WITH

main99332-60910iFZJ7#200701-200907

L=910,AIR CONDITIONER-WITH

5 parts on this diagram · 2 diagrams in section
