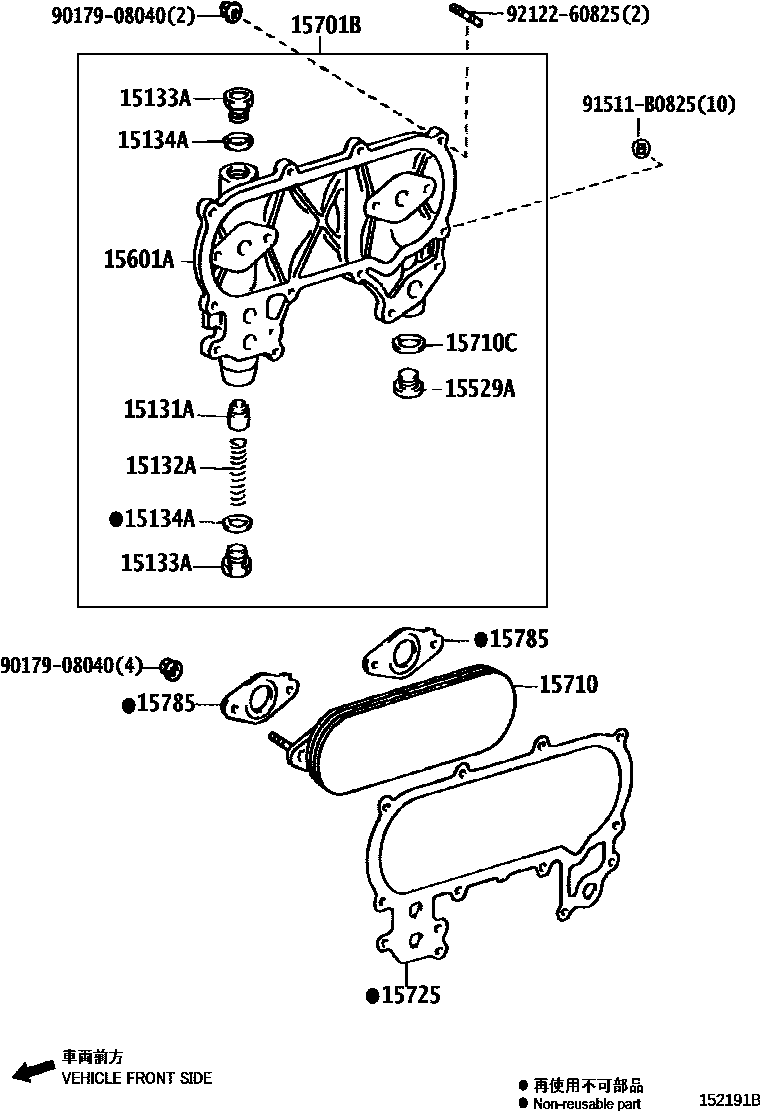

ENGINE OIL COOLER

0001 1 0002 1 0003 1 0004 1 0005 1

15131AVALVE, OIL COOLER RELIEF

main15131-64020i1FZFE..FZJ7#200701-200907

15132ASPRING, OIL COOLER RELIEF VALVE

main15132-50010i1FZFE..FZJ7#200701-200907

15133APLUG, OIL COOLER RELIEF VALVE

main15133-20010×2i1FZFE..FZJ7#200701-200907

15134AGASKET, OIL COOLER RELIEF VALVE

main15134-20010×2i1FZFE..FZJ7#200701-200907

15529APLUG

main90341-20002i1FZFE..FZJ7#200701-200907

15601ACOVER, OIL COOLER

main15721-66010i1FZFE..FZJ7#200701-200907

15701BCOVER SUB-ASSY, OIL COOLER

main15701-66010i1FZFE..FZJ7#200701-200907

15710COOLER ASSY, OIL

main15710-17021i1HZ..HZJ7#202309

main15710-31010i1GRFE..GRJ79;1GRFE..GRJ71,76,78..LHD200907-201608

main15710-51010i1VDFTV..VDJ7#200701-200706

main15710-51011i1VDFTV..VDJ79..RHD;1VDFTV..VDJL79..LX202309-202508

main15710-66020i1FZFE..FZJ7#200701-200907

15710CGASKET(FOR OIL COOLER)

main15134-17010i1FZFE..FZJ7#200701-200907

main90301-21017×2i1VDFTV..VDJ7#,L7#..CBU,IV201608-202309

15725GASKET, OIL COOLER COVER

main15725-66010i1FZFE..FZJ7#200701-200907

15785GASKET, OIL COOLER

main15785-51011i1VDFTV..VDJ7#200701-201608

main15785-66010×2i1HZ..HZJ7#200701-201608

9017908040

main90179-08040

91511B0825

main91511-B0825

9212260825

main92122-60825

14 parts on this diagram · 5 diagrams in section
