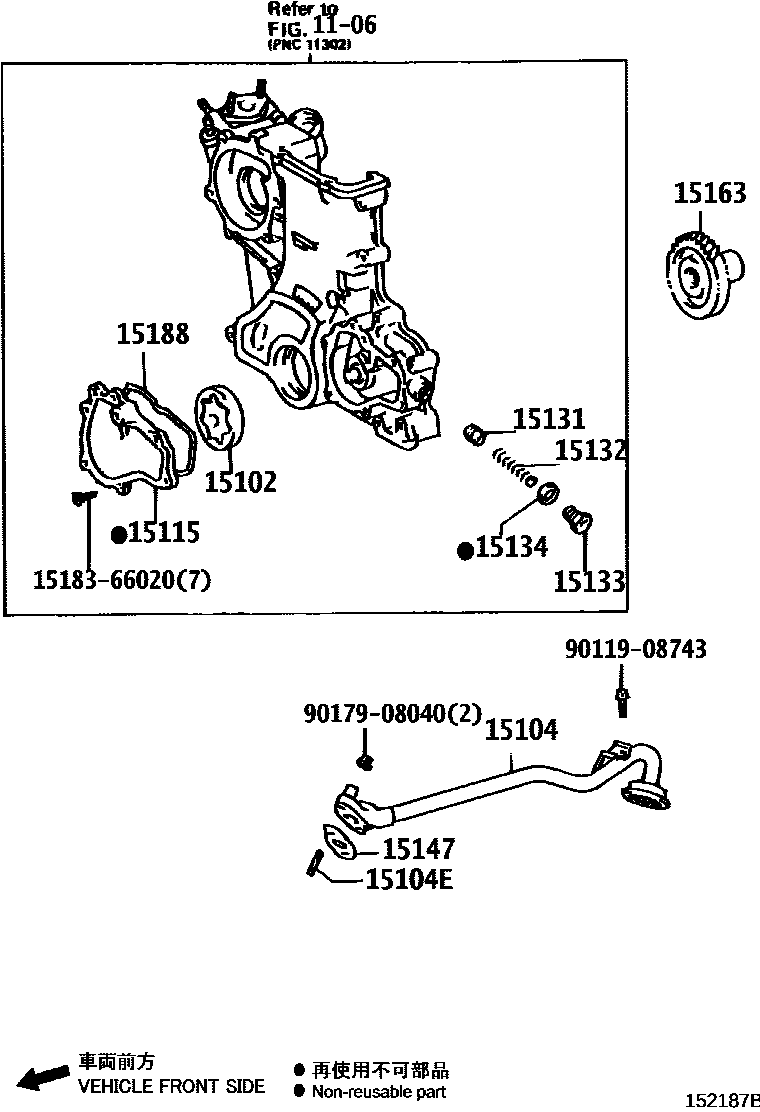

ENGINE OIL PUMP
1106TIMING GEAR COVER & REAR END PLATE
15102ROTOR SET, OIL PUMP
15104STRAINER SUB-ASSY, OIL
FIJI SPEC&EXHAUST EMISSION CONTROL-DIESEL EURO4 WITHOUT(ON BOARD DIAGNOSIS)
UAE SPEC&EXHAUST EMISSION CONTROL-DIESEL EURO5 WITH(ON BOARD DIAGNOSIS)
15104EBOLT, STUD(FOR OIL STRAINER)
15115COVER, OIL PUMP
15131VALVE, OIL PUMP RELIEF
NO.1:REFER ILLUST.
NO.2:REFER ILLUST.
15132SPRING, OIL PUMP RELIEF VALVE
NO.1:REFER ILLUST.
NO.2:REFER ILLUST.
15133PLUG, OIL PUMP RELIEF VALVE
NO.1:REFER ILLUST.
NO.2:REFER ILLUST.
15134GASKET, OIL PUMP RELIEF VALVE
15147GASKET, OIL STRAINER
15163GEAR, OIL PUMP DRIVE SHAFT
15188GASKET, OIL PUMP
1518366020BOLT, UNION(FOR OIL PUMP)
main15183-66020
9011908743
main90119-08743
9017908040
main90179-08040
15 parts on this diagram · 6 diagrams in section
