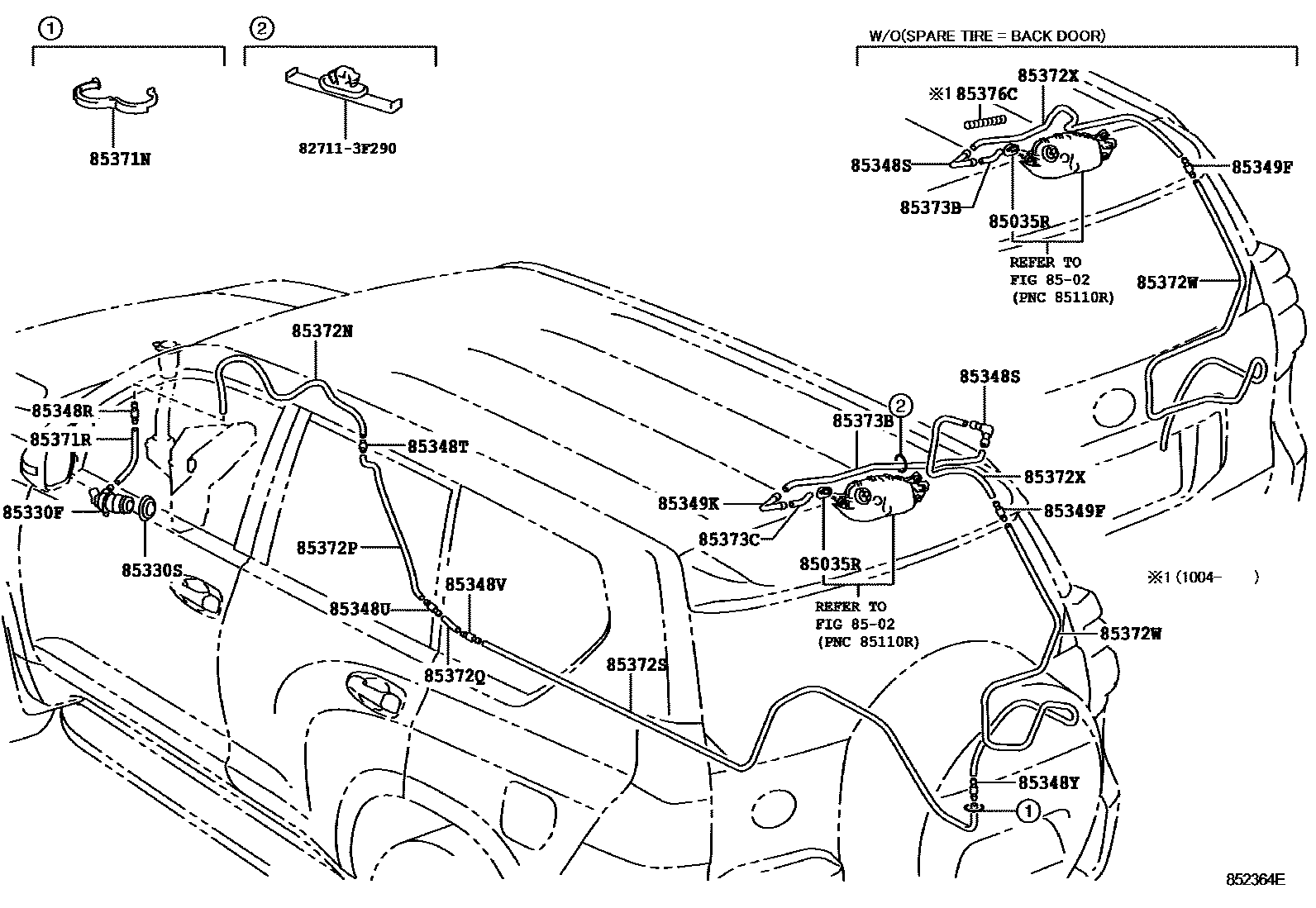

REAR WASHER
85035RNOZZLE SUB-ASSY, REAR WASHER
85330FMOTOR & PUMP ASSY, RR WASHER
RUSSIA SPEC
CHINA SPEC&COLD AREA SPEC; CHINA SPEC&COLD AREA SPEC&HEADLAMP CLEANER-WITH
85330SBUSH, REAR WASHER JAR
85348RJOINT, REAR WASHER HOSE, NO.1
85348SJOINT, REAR WASHER ELBOW, NO.1
main85355-20200supersedes 85355-12360iGRJ150,KDJ150,TRJ150..GCC; TRJ155;GRJ150,KDJ150,LJ150,TRJ150..ARL,GEN201308-201506
SPARE TIRE-WITH(BACK DOOR)
main85355-12360iKDJ150,LJ150..GEN;GRJ150..5FC..(ARL,GEN);GRJ150,TRJ150..LHD..(4FC,5F,6F)..GEN; KDJ150..5FC..ARL; KDJ150..5FC..GCC;GRJ150,TRJ150..GCC200908-201308
SPARE TIRE-WITH(UNDER FRAME); SPARE TIRE-WITH(UNDER FRAME)&REAR QUARTER GLASS-PRIVACY(DARK GRAY)
85348TJOINT, REAR WASHER HOSE, NO.2
85348UJOINT, REAR WASHER HOSE, NO.3
85348VJOINT, REAR WASHER HOSE, NO.4
85348YJOINT, REAR WASHER HOSE, NO.5
85349FJOINT, REAR WASHER HOSE, NO.1
SPARE TIRE-WITH(BACK DOOR)
main85349-89122iGRJ150,KDJ150,TRJ150..GCC; KDJ150..6F..GEN;KDJ150..5FC..(ARL,GEN);GRJ150,LJ150,TRJ150..ARL,GEN201308-201506
SPARE TIRE-WITH(UNDER FRAME)
85349KJOINT, REAR WASHER ELBOW, NO.2
SPARE TIRE-WITH(BACK DOOR)
85371NCLAMP, REAR WASHER HOSE
85371RHOSE, REAR WASHER (FROM MOTOR TO JOINT)
main90099-33080iGRJ150,KDJ150,LJ150,TRJ15#; KDJ150..LHD..GEN;GRJ150,TRJ150..(4FC,5F,5FC)..GEN; TRJ150..GCC; TRJ150..GEN201308-201506
L=1450(*H,L=240); L=1450(*H,L=240),CHINA SPEC&COLD AREA SPEC; L=1450(*H,L=240),CHINA SPEC&COLD AREA SPEC&HEADLAMP CLEANER-WITH; L=1450(*H,L=240),HEADLAMP CLEANER-WITH; L=1450(*H,L=240),KAZAKHSTAN,GEORGIA,AZORES SPEC&COLD AREA SPEC; L=1450(*H,L=240),KAZAKHSTAN,GEORGIA,AZORES SPEC&COLD AREA SPEC&HEADLAMP CLEANER-WITH; L=1450(*H,L=240),RUSSIA SPEC&COLD AREA SPEC&SPARE TIRE-WITH(UNDER FRAME)&HEADLAMPCLEANER-WITH; L=1450(*H,L=240),UKURAINE SPEC&COLD AREA SPEC&SPARE TIRE-WITH(UNDER FRAME)&HEADLAMP CLEANER-WITH
85372NHOSE, REAR WASHER (FROM JOINT TO JOINT), NO.1
L=1450(*H,L=1100)
L=1100
85372PHOSE, REAR WASHER (FROM JOINT TO JOINT), NO.2
L=1800(*H,L=520)
85372QHOSE, REAR WASHER (FROM JOINT TO JOINT), NO.3
main90099-33080iGRJ150,TRJ150..RHD..MTM; KDJ150..6F..ARL; KDJ150..6F..GCC; TRJ150..RHD;KDJ150..6F..GCC200908-201110
L=1450(*H,L=50); L=1450(*H,L=50),SPARE TIRE-WITH(BACK DOOR); L=1450(*H,L=50),SPARE TIRE-WITH(UNDER FRAME); L=1450(*H,L=50),SPARE TIRE-WITH(UNDER FRAME)&REAR QUARTER GLASS-PRIVACY(DARK GRAY)
main90099-62062iGDJ150,GRJ150,KDJ150,LJ150,TRJ15#; GRJ150,KDJ150,TRJ150..GCC; GRJ150,KDJ150..ARL,GEN;GDJ150,LJ150,TRJ150..(5F,6FC)..(ARL,GEN)201511
L=50; L=50,SPARE TIRE-WITH(BACK DOOR); L=50,SPARE TIRE-WITH(UNDER FRAME)
85372SHOSE, REAR WASHER (FROM JOINT TO JOINT), NO.4
main90099-33589iGRJ150,TRJ150..RHD..MTM; KDJ150..6F..ARL; KDJ150..6F..GCC; TRJ150..RHD;KDJ150..6F..GCC200908-201110
L=3300(*H,L=3250); L=3300(*H,L=3250),SPARE TIRE-WITH(BACK DOOR); L=3300(*H,L=3250),SPARE TIRE-WITH(UNDER FRAME); L=3300(*H,L=3250),SPARE TIRE-WITH(UNDER FRAME)&REAR QUARTER GLASS-PRIVACY(DARK GRAY)
L=2850
main90099-59376iGDJ150,GRJ150,KDJ150,LJ150,TRJ150; GRJ150,KDJ150,TRJ150..GCC; GRJ150,KDJ150..ARL,GEN;GDJ150,LJ150,TRJ150..(5F,6FC)..(ARL,GEN)201511
L=3250; L=3250,SPARE TIRE-WITH(BACK DOOR); L=3250,SPARE TIRE-WITH(UNDER FRAME)
85372WHOSE, REAR WASHER (FROM JOINT TO JOINT), NO.5
L=1750; L=1750,SPARE TIRE-WITH(UNDER FRAME); L=1750,SPARE TIRE-WITH(UNDER FRAME)&REAR QUARTER GLASS-PRIVACY(DARK GRAY); L=1810; L=1810,SPARE TIRE-WITH(BACK DOOR)
85372XHOSE, REAR WASHER (FROM JOINT TO JOINT), NO.6
L=1450(*H,L=180); L=1450(*H,L=180),SPARE TIRE-WITH(BACK DOOR); L=1450(*H,L=470); L=1450(*H,L=470),SPARE TIRE-WITH(UNDER FRAME); L=1450(*H,L=470),SPARE TIRE-WITH(UNDER FRAME)&REAR QUARTER GLASS-PRIVACY(DARK GRAY)
85373BHOSE, REAR WASHER(FROM JOINT TO JOINT), NO.7
L=1450(*H,L=25); L=1450(*H,L=25),SPARE TIRE-WITH(UNDER FRAME); L=1450(*H,L=25),SPARE TIRE-WITH(UNDER FRAME)&REAR QUARTER GLASS-PRIVACY(DARK GRAY); L=1450(*H,L=380); L=1450(*H,L=380),SPARE TIRE-WITH(BACK DOOR)
85373CTUBE, REAR WASHER RUBBER
L=1450(*H,L=25); L=1450(*H,L=25),SPARE TIRE-WITH(BACK DOOR)
85376CSPRING, WASHER HOSE
SPARE TIRE-WITH(UNDER FRAME); SPARE TIRE-WITH(UNDER FRAME)&REAR QUARTER GLASS-PRIVACY(DARK GRAY)
827113F290WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)
main82711-3F290
23 parts on this diagram · 2 diagrams in section
