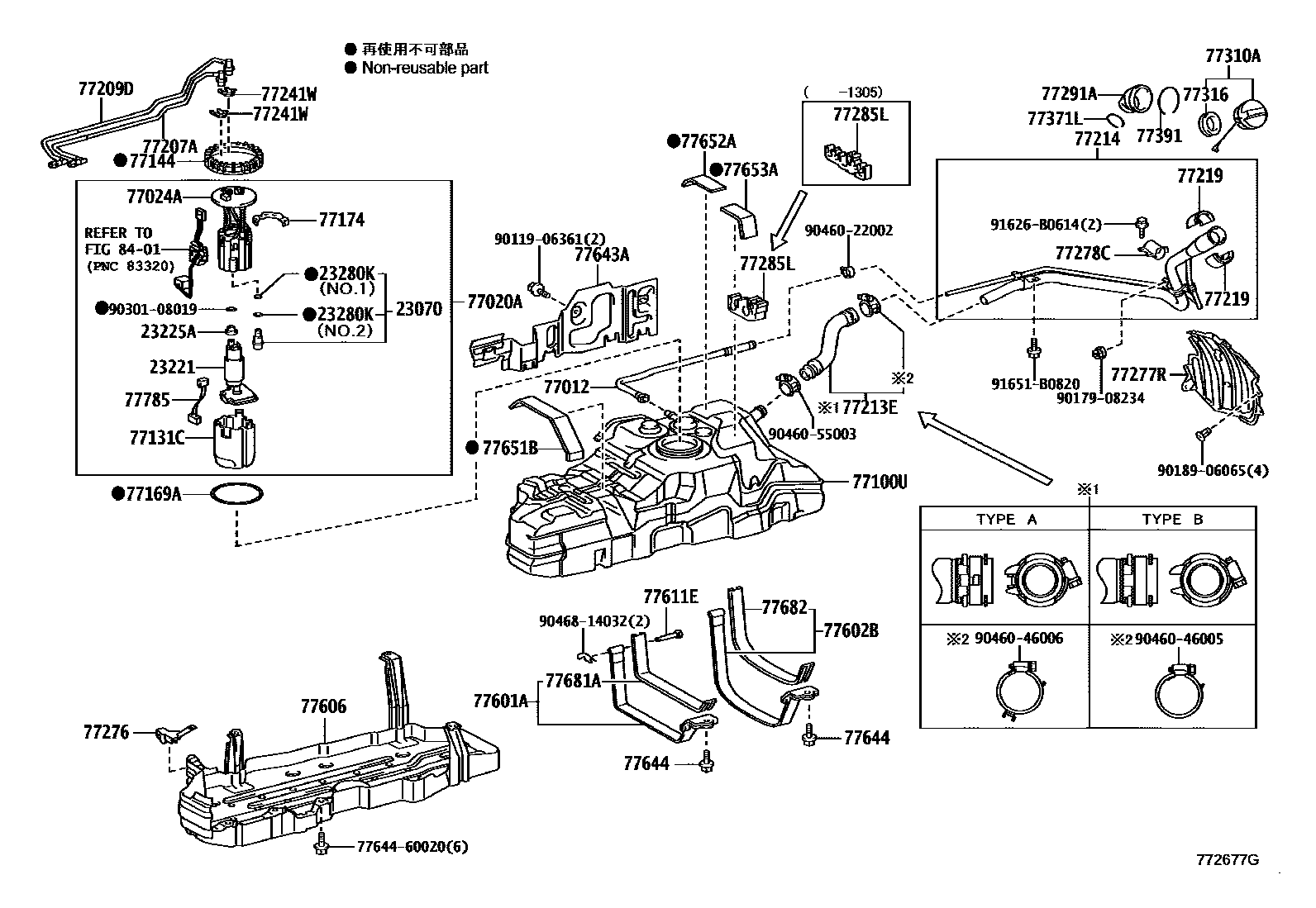

FUEL TANK & TUBE

0001 1FUEL TANK 0002 1FUEL TANK 0003 1FUEL TANK 0004 1FUEL TANK 0005 1FUEL TANK 0006 1FUEL TANK 0007 1FUEL TANK 0008 1FUEL TANK,W(SUB TANK) 0009 1FUEL TANK,W(SUB TANK) 0010 1FUEL TANK,W(SUB TANK) 0011 1FUEL TANK,W(SUB TANK) 0012 1FUEL TANK,W(SUB TANK) 0013 1FUEL TUBE 0014 1FUEL TUBE 0015 1FUEL TUBE 0016 1FUEL TUBE 0017 1FUEL TUBE 0018 1FUEL TUBE,W(SUB TANK) 0019 1FUEL TUBE,W(SUB TANK) 0020 1FUEL TUBE,W(SUB TANK) 0021 1FUEL TUBE,W(SUB TANK) 0022 1FUEL TUBE,W(SUB TANK) 0023 1FUEL TUBE,W(SUB TANK) 0024 1FUEL TUBE,W(SUB TANK) 0025 1FUEL TUBE,W(SUB TANK) 0026 1FUEL TUBE,W(SUB TANK) 0027 1FUEL LID OPENER

23070VALVE ASSY, FUEL MAIN

main23070-31010i1GRFE..GRJ150200908-201506

23221PUMP, FUEL

main23220-31430i1GRFE..GRJ150200908-201506

main23220-75091i2TRFE..TRJ150..RHD200908-201506

main23220-75170i2TRFE..TRJ150201506-201609

sub23220-75171

main23220-75171i2TRFE..TRJ150201610

sub23220-75210

main23221-75140i2TRFE..TRJ155200908-201506

main23221-75170i2TRFE..TRJ155201506

23225ASPACER, FUEL PUMP

main23225-21020i2TRFE..TRJ150201506

main23225-23010i1GRFE,2TRFE..GRJ150,TRJ150200908-201506

23280KRING, O(FOR FUEL PRESSURE REGULATOR)

main90301-04013i1GRFE..GRJ150200908-201708

NO.1

main90301-15024i1GRFE..GRJ150200908-201708

NO.2

77012TUBE SUB-ASSY, FUEL TANK BREATHER

main77012-60200iTRJ150..RHD;KDJ150..6F..GCC200908-201605

sub77012-60201

main77012-60201iGDJ150,GRJ150,KDJ150,LJ150,TRJ150201606

77020ATUBE ASSY, FUEL SUCTION W/PUMP & GAGE

main77020-60410iGRJ150200908-201309

sub77020-60411

main77020-60411iGRJ150201310-201506

main77020-60440iTRJ150..RHD200908-201309

sub77020-60441

main77020-60441iTRJ150201310-201506

main77020-60610iTRJ150201506

77024APLATE SUB-ASSY, FUEL SUCTION

main77024-60260iGRJ150200908-201707

sub77024-60430

main77024-60280iTRJ150200908-201506

main77024-60320iTRJ150201506-201707

sub77024-60440

77100UTANK SUB-ASSY, FUEL

main77001-35A30iGRJ150,TRJ150200908-201610

sub77001-35A31

main77001-35A31iGRJ150,TRJ150201611

main77001-35A70iTRJ155201206-201506

main77001-60641iTRJ155200908-201206

main77001-60A30iKDJ150,LJ150200908-201506

77131CSUB-TANK, FUEL, NO.1

main77131-60090iTRJ150..RHD200908-201506

77144RETAINER, FUEL PUMP GAUGE

main77144-35010iGDJ150,GRJ150,KDJ150,LJ150,TRJ150200908-201506

77169AGASKET, FUEL SUCTION TUBE SET

main77169-30050iKDJ150..6F..GCC201002-201506

main77169-35010iGRJ150,TRJ150200908-201002

sub77169-30050

main77169-47030iTRJ150..RHD201002-201506

77174SUPPORT, FUEL SUCTION, NO.1

main77174-60020iTRJ150..RHD200908-201506

main77174-60030iTRJ150201506

77207ATUBE SUB-ASSY, FUEL RETURN

main77204-35050iLJ150200908-201708

main77204-60100iGRJ150200908-201506

FUEL TANK-WITH(SUB TANK)

77209DTUBE SUB-ASSY, FUEL TANK MAIN

main77209-35430iKDJ150..6F..GCC200908-201506

main77209-60530iGRJ150,TRJ150200908-201506

main77209-60760iGDJ150201506

77213EHOSE, FUEL TANK TO FILLER PIPE

main77213-60360iGRJ150,KDJ150,LJ150,TRJ150200908-201005

main77213-60360iTRJ150..RHD;KDJ150..6F..GCC201005-201506

TYPE A:REFER ILLUST.

main77213-60380iTRJ155200908-201506

main77213-60390iTRJ150..RHD;KDJ150..6F..GCC201005-201506

TYPE B:REFER ILLUST.

77214PIPE, FUEL TANK FILLER

main77210-60130iGDJ150,KDJ150,LJ150200908-201506

sub77210-60410

sub77300-12020

sub77300-12030

main77210-60140iGRJ150,TRJ150200908-201506

sub77210-60430

sub77300-12020

77219COVER, FUEL TANK FILLER PIPE

main77219-52040iGRJ150,KDJ150,LJ150,TRJ15#200908-201506

77241WCLIP, TUBE JOINT

main77241-33011iKDJ150..6F..GCC200912-201506

FUEL TANK-WITH(SUB TANK),NO.2

main77241-33011iKDJ150..6F..GCC200912-201506

NO.2

main77241-33011iKDJ150..6F..GCC200912-201506

FUEL TANK-WITH(SUB TANK)

main77241-35450iKDJ150..6F..GCC200908-201506

NO.1

main77241-60320iKDJ150200908-200911

FUEL TANK-WITH(SUB TANK)

main77241-60320iKDJ150200908-200911

NO.2

main77241-60320iGRJ150;TRJ150..GEN200908-200911

FUEL TANK-WITH(SUB TANK),NO.2

77276PROTECTOR, FUEL HOSE

main77276-35040iTRJ150..LHD;GRJ150,LJ150;KDJ150..ARL,GEN;KDJ150..5FC..GCC200908-201506

77277RPROTECTOR, FUEL TANK FILLER PIPE

main77277-35040iTRJ155200908-201506

main77277-60150iTRJ150..RHD;KDJ150..6F..GCC200908-201506

77278CPROTECTOR, FUEL TANK FILLER PIPE, NO.2

main77277-52020iGRJ150,KDJ150,LJ150,TRJ150200908-200911

main77277-60190iTRJ150..RHD;KDJ150..6F..GCC200912-201506

77285LCLAMP, FUEL TUBE, NO.1

main77285-35620iKDJ150..6F..GCC200908-201110

FUEL TANK-WITH(SUB TANK)

main77285-35620iTRJ150..LHD;GRJ150,LJ150;KDJ150..ARL,GEN;KDJ150..5FC..GCC200908-201305

main77285-35770iGDJ150,GRJ150,KDJ150,LJ150,TRJ150201305-201506

main77285-60480iTRJ155200908-201506

77291ASHIELD, FUEL TANK FILLER PIPE

main77291-60130iTRJ150..RHD;KDJ150..6F..GCC200908-201506

main77291-60140iTRJ155200908-201506

77310ACAP ASSY, FUEL TANK

main77300-52030iTRJ150..RHD;KDJ150..6F..GCC200908-201506

77316GASKET, FUEL TANK CAP

main77316-52040iTRJ150..LHD;KDJ150..ARL,GEN;KDJ150..5FC..GCC;GRJ150,LJ150,TRJ155200908-201506

77371LRING, FUEL TANK FILLER PIPE SHIELD

main77371-35010iTRJ150..RHD;KDJ150..6F..GCC200908-201506

77391RING, FUEL INLET BOX

main77391-12060iGRJ150,KDJ150,LJ150,TRJ150200908-201506

main77391-33030iTRJ155200908-201506

77601ABAND SUB-ASSY, FUEL TANK, NO.1

main77601-60340iTRJ150..LHD;GRJ150,LJ150;KDJ150..ARL,GEN;KDJ150..5FC..GCC200908-201606

sub77601-60420

main77601-60420iGDJ150,GRJ150,KDJ150,LJ150,TRJ150201607

77602BBAND SUB-ASSY, FUEL TANK, NO.1 LH

main77602-60120iTRJ150..LHD;GRJ150,LJ150;KDJ150..ARL,GEN;KDJ150..5FC..GCC200908-201506

77606PROTECTOR SUB-ASSY, FUEL TANK, NO.1

main77606-60150iTRJ155200908-201506

main77606-60190iTRJ150..LHD;GRJ150,LJ150;KDJ150..ARL,GEN;KDJ150..5FC..GCC200908-201506

77611EPIN, FUEL TANK BAND

main77653-35040iGDJ150,GRJ150,KDJ150,LJ150,TRJ150200908-201506

77643APROTECTOR, FUEL TANK, NO.3

main77643-35020iGRJ150,LJ150;KDJ150..ARL,GEN;KDJ150..5FC..GCC200908-201601

sub77643-35040

main77643-35040iTRJ150200908-201506

77644BOLT, FUEL TANK

main77644-35030iGRJ150,KDJ150,LJ150,TRJ150200908-201506

77651BCUSHION, FUEL TANK

main77651-35070iGRJ150,KDJ150,LJ150,TRJ150200908-201506

77652ACUSHION, FUEL TANK, NO.2

main77652-35060iGDJ150,GRJ150,KDJ150,LJ150,TRJ150200908-201506

77653ACUSHION, FUEL TANK, NO.3

main77653-35050iTRJ150..LHD;GRJ150,LJ150;KDJ150..ARL,GEN;KDJ150..5FC..GCC200908-201506

77681ASEAT, FUEL TANK BAND

main77681-60210iGRJ150,KDJ150,LJ150,TRJ150200908-201506

77682SEAT, FUEL TANK BAND, LH

main77681-35041iTRJ150..LHD;GRJ150,LJ150;KDJ150..ARL,GEN;KDJ150..5FC..GCC200908-201506

77785HARNESS, FUEL PUMP

main77785-60020iGRJ150,TRJ150200908-201506

sub77785-60021

main77785-60060iTRJ150201506

8401

7764460020BOLT, FUEL TANK

main77644-60020

9011906361

main90119-06361

9017908234

main90179-08234

9018906065

main90189-06065

9030108019

main90301-08019

9046022002

main90460-22002

9046046005

main90460-46005

9046046006

main90460-46006

9046055003

main90460-55003

9046814032

main90468-14032

91626B0614

main91626-B0614

91651B0820

main91651-B0820

52 parts on this diagram · 27 diagrams in section
