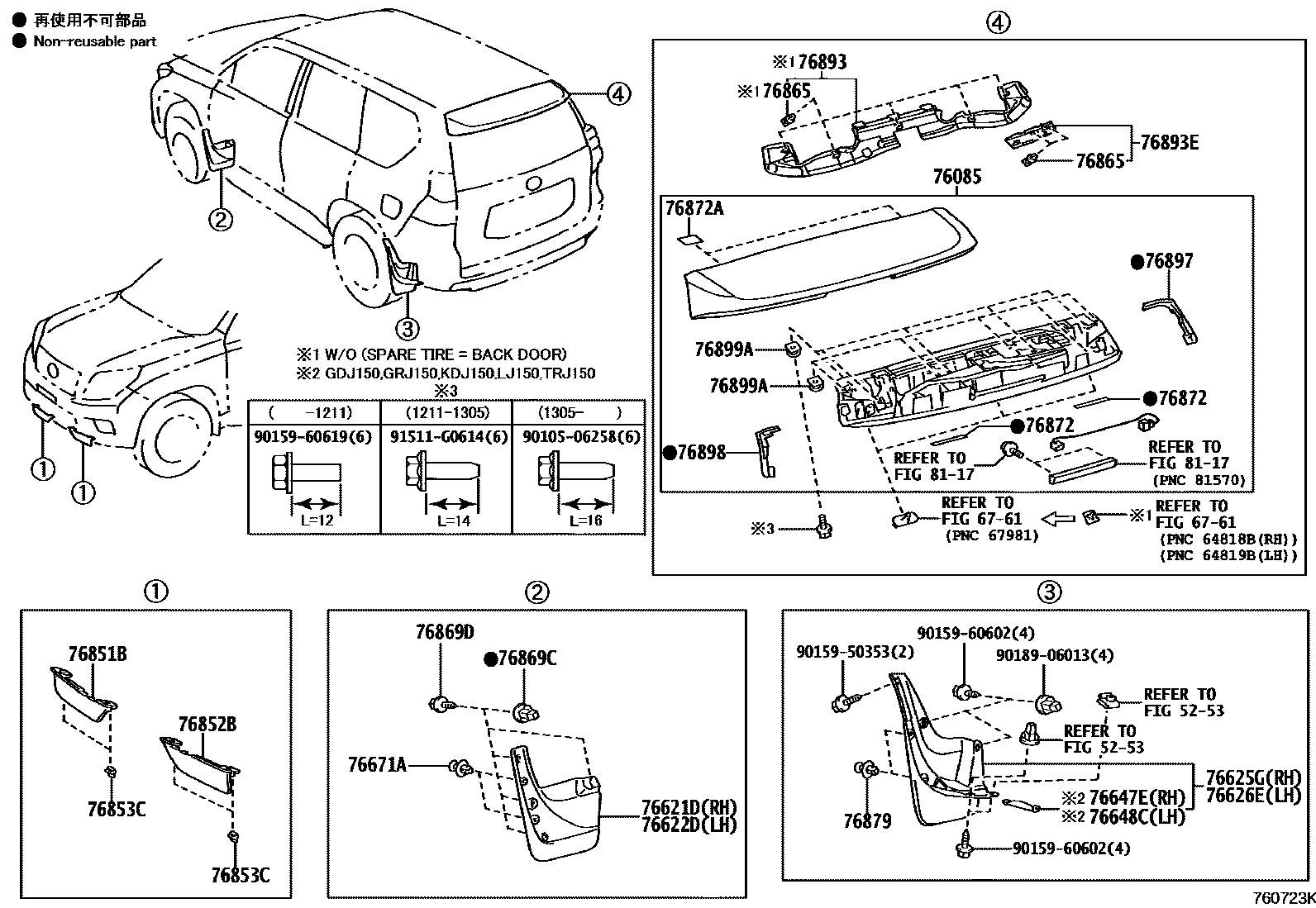

SPOILER & SIDE MUDGUARD
5253REAR BUMPER & BUMPER STAY
6761BACK DOOR PANEL & GLASS
76085SPOILER SUB-ASSY, REAR
SUPER WHITE 2,040
WHITE PEARL CS.,070
SILVER ME.,1F7
GRAY ME.,1G3
DK. STEEL MC.,1H2
BLACK,202
BLACKISH RED MC.,3R0
BEIGE ME.,4T8
GREEN M.M.,6V2
GRAYISH BLUE ME.,8R3
SUPER WHITE 2,040
WHITE PEARL CS.,070
SILVER ME.,1F7
GRAY ME.,1G3
DK. STEEL MC.,1H2
BLACK,202
BLACKISH RED MC.,3R0
BEIGE ME.,4T8
GREEN M.M.,6V2
GRAYISH BLUE ME.,8R3
SUPER WHITE 2,040
WHITE PEARL CS.,070
SILVER ME.,1F7
GRAY ME.,1G3
DK. STEEL MC.,1H2
BLACK,202
BLACKISH RED MC.,3R0
BEIGE ME.,4T8
GREEN M.M.,6V2
GRAYISH BLUE ME.,8R3
SUPER WHITE 2,040
WHITE PEARL CS.,070
SILVER ME.,1F7
GRAY ME.,1G3
DK. STEEL MC.,1H2
BLACK,202
ATTITUDE BLACK MC.,218
RED M.M.,3R3
BRONZE M.M.,4T3
VINTAGE BROWN PEARL CS.,4X4
DK.GREEN MC.,6V4
DK.BLUE MC.,8S6
76621DMUDGUARD, FRONT FENDER, RH
76622DMUDGUARD, FRONT FENDER, LH
76625GMUDGUARD, QUARTER PANEL, REAR RH
SUPER WHITE 2,040
WHITE PEARL CS.,070
SILVER ME.,1F7
GRAY ME.,1G3
DK. STEEL MC.,1H2
BLACK,202
BLACKISH RED MC.,3R0
BEIGE ME.,4T8
GREEN M.M.,6V2
GRAYISH BLUE ME.,8R3
SUPER WHITE 2,040
WHITE PEARL CS.,070
SILVER ME.,1F7
GRAY ME.,1G3
DK. STEEL MC.,1H2
BLACK,202
BLACKISH RED MC.,3R0
BEIGE ME.,4T8
GREEN M.M.,6V2
GRAYISH BLUE ME.,8R3
SUPER WHITE 2,040
WHITE PEARL CS.,070
SILVER ME.,1F7
GRAY ME.,1G3
DK. STEEL MC.,1H2
BLACK,202
BLACKISH RED MC.,3R0
BEIGE ME.,4T8
GREEN M.M.,6V2
GRAYISH BLUE ME.,8R3
SUPER WHITE 2,040
WHITE PEARL CS.,070
SILVER ME.,1F7
GRAY ME.,1G3
DK. STEEL MC.,1H2
BLACK,202
BLACKISH RED MC.,3R0
BEIGE ME.,4T8
GREEN M.M.,6V2
GRAYISH BLUE ME.,8R3
SUPER WHITE 2,040
WHITE PEARL CS.,070
SILVER ME.,1F7
GRAY ME.,1G3
DK. STEEL MC.,1H2
BLACK,202
BLACKISH RED MC.,3R0
BEIGE ME.,4T8
GREEN M.M.,6V2
GRAYISH BLUE ME.,8R3
SUPER WHITE 2,040
WHITE PEARL CS.,070
SILVER ME.,1F7
GRAY ME.,1G3
DK. STEEL MC.,1H2
BLACK,202
BLACKISH RED MC.,3R0
BEIGE ME.,4T8
GREEN M.M.,6V2
GRAYISH BLUE ME.,8R3
76626EMUDGUARD, QUARTER PANEL, REAR LH
SUPER WHITE 2,040
WHITE PEARL CS.,070
SILVER ME.,1F7
GRAY ME.,1G3
DK. STEEL MC.,1H2
BLACK,202
BLACKISH RED MC.,3R0
BEIGE ME.,4T8
GREEN M.M.,6V2
GRAYISH BLUE ME.,8R3
SUPER WHITE 2,040
WHITE PEARL CS.,070
SILVER ME.,1F7
GRAY ME.,1G3
DK. STEEL MC.,1H2
BLACK,202
BLACKISH RED MC.,3R0
BEIGE ME.,4T8
GREEN M.M.,6V2
GRAYISH BLUE ME.,8R3
SUPER WHITE 2,040
WHITE PEARL CS.,070
SILVER ME.,1F7
GRAY ME.,1G3
DK. STEEL MC.,1H2
BLACK,202
BLACKISH RED MC.,3R0
BEIGE ME.,4T8
GREEN M.M.,6V2
GRAYISH BLUE ME.,8R3
SUPER WHITE 2,040
WHITE PEARL CS.,070
SILVER ME.,1F7
GRAY ME.,1G3
DK. STEEL MC.,1H2
BLACK,202
BLACKISH RED MC.,3R0
BEIGE ME.,4T8
GREEN M.M.,6V2
GRAYISH BLUE ME.,8R3
SUPER WHITE 2,040
WHITE PEARL CS.,070
SILVER ME.,1F7
GRAY ME.,1G3
DK. STEEL MC.,1H2
BLACK,202
BLACKISH RED MC.,3R0
BEIGE ME.,4T8
GREEN M.M.,6V2
GRAYISH BLUE ME.,8R3
SUPER WHITE 2,040
WHITE PEARL CS.,070
SILVER ME.,1F7
GRAY ME.,1G3
DK. STEEL MC.,1H2
BLACK,202
BLACKISH RED MC.,3R0
BEIGE ME.,4T8
GREEN M.M.,6V2
GRAYISH BLUE ME.,8R3
76647ESUPPORT, REAR BODY MUDGUARD, NO.1 RH
76648CSUPPORT, REAR BODY MUDGUARD, LH
76671ACLIP, FRONT FENDER MUDGUARD
76851BSPOILER, FRONT, RH
CHINA SPEC; RUSSIA SPEC; SOUTH AFRICA SPEC; UKURAINE SPEC
76852BSPOILER, FRONT, LH
GEORGIA,AZORES,TAJIKISTAN,ARMENIA SPEC; RUSSIA SPEC; SOUTH AFRICA SPEC; UKRAINE SPEC
76853CRETAINER, FRONT SPOILER, NO.1
CHINA SPEC; SOUTH AFRICA SPEC; UKURAINE SPEC
76865RETAINER, REAR SPOILER, NO.1
main76865-35030×2iGDJ150,GRJ150..6FC..ARL; GDJ150..6FC; GRJ150,KDJ150,LJ150,TRJ150..GEN; GRJ150,KDJ150,TRJ150..GCC; GRJ150..ARL; TRJ155;GDJ150,GRJ150,KDJ150,LJ150,TRJ150..ARL,GEN201506
SOUTH AFRICA SPEC&SPARE TIRE-WITH(UNDER FRAME); SPARE TIRE-WITH(BACK DOOR); SPARE TIRE-WITH(UNDER FRAME); TX-L PACKAGE&SPARE TIRE-WITH(UNDER FRAME); VX PACKAGE&SPARE TIRE-WITH(UNDER FRAME)&AUDIO(FOR OVERSEAS MARKET)-*DA & 9SPEAKER; VX PACKAGE&SPARE TIRE-WITH(UNDER FRAME)&AUDIO(FOR OVERSEAS MARKET)-AVN(JBL) & 14SPEAKER; VX-L PACKAGE&SPARE TIRE-WITH(UNDER FRAME)&AUDIO(FOR OVERSEAS MARKET)-*DA & 9SPEAKER; VX-L PACKAGE&SPARE TIRE-WITH(UNDER FRAME)&AUDIO(FOR OVERSEAS MARKET)-AVN(JBL) & 14SPEAKER
76869CGROMMET, SCREW, NO.1
main90189-06065×8iGDJ150,GRJ150,KDJ150,LJ150,TRJ15#; GRJ150,KDJ150,TRJ150..GCC,GEN; KDJ150;GRJ150..6F..GEN;GRJ150..LHD..6FC201506-201708
SIDE STEP-WITH(STEP LAMP LESS)(DOP); SIDE STEP-WITH(STEP LAMP)(DOP)
76869DSCREW, NO.2
main90159-60603×8iGDJ150,GRJ150,KDJ150,LJ150,TRJ15#; GRJ150,KDJ150,TRJ150..GCC,GEN; KDJ150;GRJ150..6F..GEN;GRJ150..LHD..6FC201506-201708
SIDE STEP-WITH(STEP LAMP LESS)(DOP); SIDE STEP-WITH(STEP LAMP)(DOP)
76872PROTECTOR, REAR SPOILER, NO.1
76872APROTECTOR, REAR SPOILER, NO.1
76879CLIP, REAR SPOILER, NO.1
76893COVER, REAR SPOILER, NO.1
main76893-60020iGRJ150,KDJ150..5FC..ARL; GRJ150..5FC..ARL; KDJ150..5FC..GCC;GRJ150,TRJ150..GCC; TRJ150..LHD..GEN;GRJ150,KDJ150,LJ150..GEN200908-201308
SPARE TIRE-WITH(UNDER FRAME); SPARE TIRE-WITH(UNDER FRAME)&AUDIO(FOR OVERSEAS MARKET)-CD CHANGER+BLUETOOTH+EXTRA+9SPEAKER; SPARE TIRE-WITH(UNDER FRAME)&AUDIO(FOR OVERSEAS MARKET)-HDD NAVIGATION+DVD-CH+BLUETOOTH+14SP; SPARE TIRE-WITH(UNDER FRAME)&AUDIO(FOR OVERSEAS MARKET)-NAVIGATION+DVD CHANGER+BLUETOOTH+14SP
76893ECOVER, REAR SPOILER, RH
main76894-60030supersedes 76894-60020iKDJ150..5FC..GCC;GRJ150,TRJ150..GCC; TRJ155;TRJ150..LHD..GEN;GRJ150,KDJ150,LJ150..ARL,GEN200908-201308
SPARE TIRE-WITH(BACK DOOR)
main76894-60070supersedes 76894-60060iGRJ150,KDJ150,TRJ150..GCC; TRJ155;GDJ150,GRJ150,KDJ150,LJ150,TRJ150..ARL,GEN201506
SPARE TIRE-WITH(BACK DOOR)
main76894-60020supersedes 76894-60030iGRJ150,KDJ150..6F..ARL; GRJ150..6F..ARL; KDJ150..6F..GCC; KDJ150..ARL;GRJ150..6F..ARL; TRJ150..RHD200908-201110
SPARE TIRE-WITH(UNDER FRAME); SPARE TIRE-WITH(UNDER FRAME)&AUDIO(FOR OVERSEAS MARKET)-CD CHANGER+BLUETOOTH+EXTRA+9SPEAKER; SPARE TIRE-WITH(UNDER FRAME)&AUDIO(FOR OVERSEAS MARKET)-HDD NAVIGATION+DVD-CH+BLUETOOTH+14SP; SPARE TIRE-WITH(UNDER FRAME)&AUDIO(FOR OVERSEAS MARKET)-NAVIGATION+DVD CHANGER+BLUETOOTH+14SP
main76894-60060iGRJ150,KDJ150,LJ150,TRJ150..GEN; GRJ150,KDJ150,TRJ150..GCC; GRJ150,KDJ150..5FC..ARL; GRJ150..ARL; KDJ150..5FC..ARL201308-201506
SOUTH AFRICA SPEC&SPARE TIRE-WITH(UNDER FRAME); SPARE TIRE-WITH(UNDER FRAME); TX-L PACKAGE&SPARE TIRE-WITH(UNDER FRAME); VX PACKAGE&SPARE TIRE-WITH(UNDER FRAME)&AUDIO(FOR OVERSEAS MARKET)-*DA & 9SPEAKER; VX PACKAGE&SPARE TIRE-WITH(UNDER FRAME)&AUDIO(FOR OVERSEAS MARKET)-*NS & JBL & 14SPEAKER; VX-L PACKAGE&SPARE TIRE-WITH(UNDER FRAME)&AUDIO(FOR OVERSEAS MARKET)-*DA & 9SPEAKER; VX-L PACKAGE&SPARE TIRE-WITH(UNDER FRAME)&AUDIO(FOR OVERSEAS MARKET)-*NS & JBL & 14SPEAKER
76897PROTECTOR, REAR SPOILER, SIDE RH
76898PROTECTOR, REAR SPOILER, SIDE LH
76899ANUT, REAR SPOILER
8117CENTER STOP LAMP
9010506258
main90105-06258
9015950353
main90159-50353
9015960602
main90159-60602
9015960619
main90159-60619
9018906013
main90189-06013
91511G0614
main91511-G0614
31 parts on this diagram · 1 diagram in section
