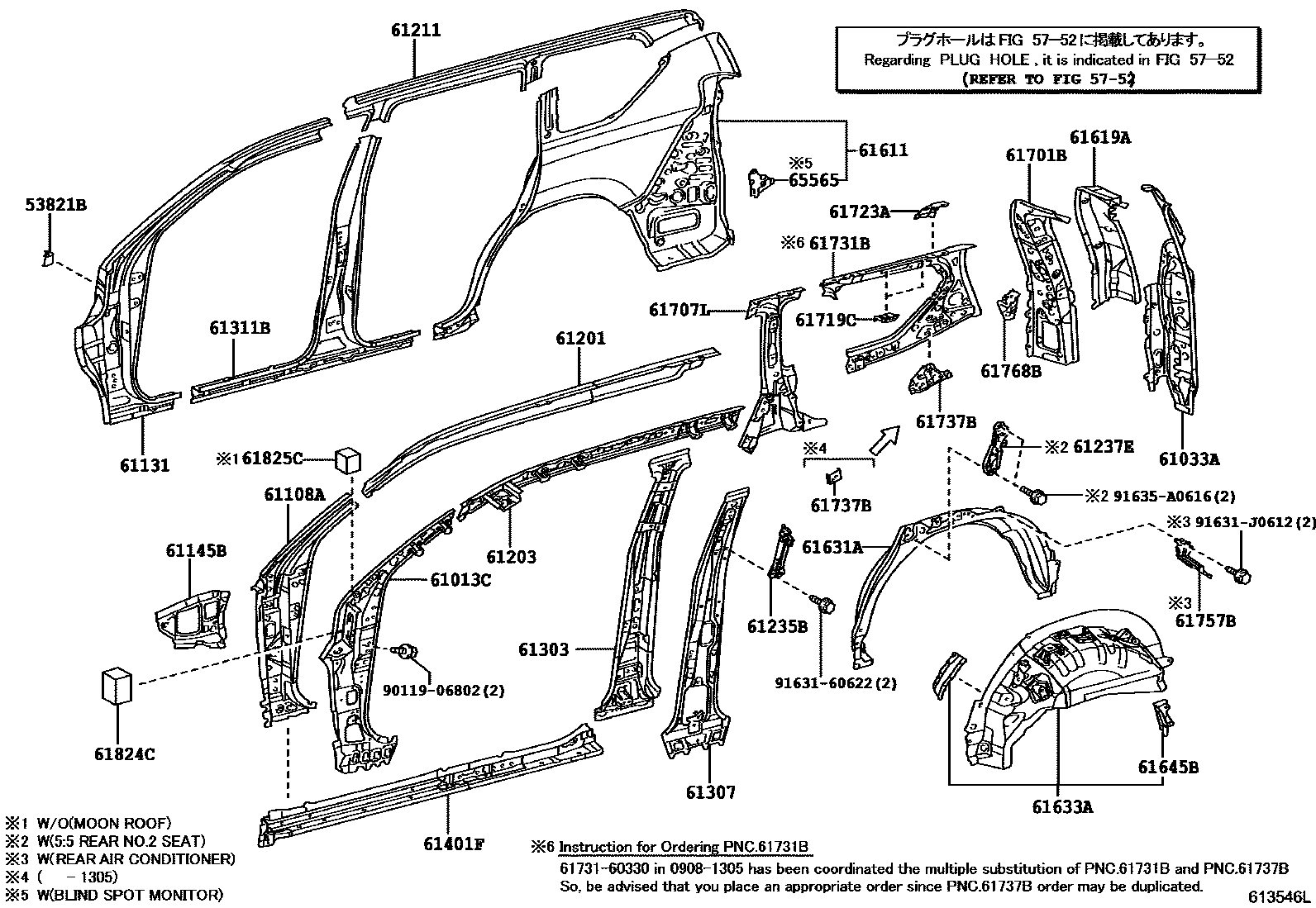

SIDE MEMBER
53821BBRACKET, FRONT FENDER, REAR RH
5752HOLE PLUG
61013CPANEL SUB-ASSY, SIDE, INNER RH
61033AREINFORCE SUB-ASSY, BACK DOOR OPENING SIDE
61108AREINFORCE SUB-ASSY, FRONT BODY PILLAR, LOWER RH
61131PILLAR, FRONT BODY, UPPER OUTER RH
61145BGUSSET, FRONT BODY PILLAR, LOWER RH
61201RAIL SUB-ASSY, ROOF SIDE, RH
61203RAIL SUB-ASSY, ROOF SIDE, INNER RH
61211RAIL, ROOF SIDE, OUTER RH
61235BBRACKET, ASSIST GRIP
61237EBRACKET, ASSIST GRIP, NO.1
main61237-60040iGRJ150,KDJ150..LHD..5FC;GRJ150,KDJ150,TRJ150..(4FC,5F,6F)..GEN; GRJ150..5FC..GCC;KDJ150..LHD..5FC;KDJ150,TRJ150..(4FC,5F,6F)..GEN; GRJ150..ARL; GRJ150..GCC; GRJ150..GCC;LJ150,TRJ150;KDJ150..ARL,GCC; GRJ150..GEN; KDJ150,LJ150,TRJ150; KDJ150,TRJ150;GRJ150,LJ150..GEN; KDJ150..5FC..ARL; TRJ150..GCC; TRJ150..GCC;KDJ150..5FC..ARL201308-201506
AIR CONDITIONER-DUAL(AUTO)&REAR SEAT-SLIDEWALK-IN&5:5 DOUBLE FLAT MANUAL; AIR CONDITIONER-DUAL(AUTO)&REAR SEAT-SLIDEWALK-IN&5:5 DOUBLE FLAT POWER; AIR CONDITIONER-DUAL(AUTO)&REAR SEAT-SLIDEWALK-IN&5:5 DOUBLE FLAT POWER&AUDIO(FOROVERSEAS MARKET)-*DA & 6SPEAKER; AIR CONDITIONER-DUAL(AUTO)&REAR SEAT-SLIDEWALK-IN&5:5 DOUBLE FLAT POWER&AUDIO(FOROVERSEAS MARKET)-*DA & 9SPEAKER; AIR CONDITIONER-DUAL(AUTO)&REAR SEAT-SLIDEWALK-IN&5:5 DOUBLE FLAT POWER&AUDIO(FOROVERSEAS MARKET)-*NS & JBL & 14SPEAKER; AIR CONDITIONER-DUAL(AUTO)&REAR SEAT-SLIDEWALK-IN&5:5 DOUBLE FLAT POWER&AUDIO(FOROVERSEAS MARKET)-CD & 6SPEAKER; AIR CONDITIONER-DUAL(MANUAL)&REAR SEAT-SLIDEWALK-IN&5:5 DOUBLE FLAT MANUAL; PACKAGE TRAY TRIM & TONNEAU COVER-WITH&AIR CONDITIONER-DUAL(AUTO)&REAR SEAT-SLIDEWALK-IN&5:5 DOUBLE FLAT MANUAL; PACKAGE TRAY TRIM & TONNEAU COVER-WITH&AIR CONDITIONER-DUAL(AUTO)&REAR SEAT-SLIDEWALK-IN&5:5 DOUBLE FLAT POWER; PACKAGE TRAY TRIM & TONNEAU COVER-WITH&AIR CONDITIONER-DUAL(AUTO)&REAR SEAT-SLIDEWALK-IN&5:5 DOUBLE FLAT POWER&AUDIO(FOR OVERSEAS MARKET)-*DA & 6SPEAKER; PACKAGE TRAY TRIM & TONNEAU COVER-WITH&AIR CONDITIONER-DUAL(AUTO)&REAR SEAT-SLIDEWALK-IN&5:5 DOUBLE FLAT POWER&AUDIO(FOR OVERSEAS MARKET)-*DA & 9SPEAKER; PACKAGE TRAY TRIM & TONNEAU COVER-WITH&AIR CONDITIONER-DUAL(AUTO)&REAR SEAT-SLIDEWALK-IN&5:5 DOUBLE FLAT POWER&AUDIO(FOR OVERSEAS MARKET)-*NS & JBL & 14SPEAKER; PACKAGE TRAY TRIM & TONNEAU COVER-WITH&AIR CONDITIONER-DUAL(AUTO)&REAR SEAT-SLIDEWALK-IN&5:5 DOUBLE FLAT POWER&AUDIO(FOR OVERSEAS MARKET)-CD & 6SPEAKER; PACKAGE TRAY TRIM & TONNEAU COVER-WITH&AIR CONDITIONER-DUAL(MANUAL)&REAR SEAT-SLIDEWALK-IN&5:5 DOUBLE FLAT MANUAL; PACKAGE TRAY TRIM & TONNEAU COVER-WITH&REAR SEAT-SLIDEWALK-IN&5:5 DOUBLE FLAT MANUAL; PACKAGE TRAY TRIM & TONNEAU COVER-WITHOUT&AIR CONDITIONER-DUAL(AUTO)&REAR SEAT-SLIDEWALK-IN&5:5 DOUBLE FLAT POWER; PACKAGE TRAY TRIM & TONNEAU COVER-WITHOUT&REAR SEAT-SLIDEWALK-IN&5:5 DOUBLE FLAT MANUAL; REAR SEAT-SLIDEWALK-IN&5:5 DOUBLE FLAT MANUAL
main61237-60070iGDJ150..6FC; GRJ150..6F..GEN;GRJ150,KDJ150..LHD..ATM;KDJ150,TRJ150..(5F,6F,6FC)..GEN; GRJ150..6FC..GCC;KDJ150..LHD..5FC;KDJ150,TRJ150..(5F,6F,6FC)..GEN; GRJ150..ARL; GRJ150..GCC;TRJ150..5F..GCC; GRJ150..GEN; GRJ150..GEN;TRJ150..6FC;TRJ150..5F..GEN;GDJ150,KDJ150,LJ150; KDJ150..RHD..5FC; KDJ150..RHD..5FC;GDJ150,TRJ150..(5F,6FC)..(ARL,GCC); KDJ150..RHD;GRJ150,KDJ150..GCC;GDJ150,LJ150,TRJ150; TRJ150..6FC;TRJ150..5F..GEN;GDJ150,KDJ150,LJ150; TRJ150..GCC; TRJ150..GCC;KDJ150..RHD..5FC201707-201708
AIR CONDITIONER-DUAL(AUTO)&REAR SEAT-SLIDEWALK-IN&5:5 DOUBLE FLAT MANUAL; AIR CONDITIONER-DUAL(AUTO)&REAR SEAT-SLIDEWALK-IN&5:5 DOUBLE FLAT POWER; AIR CONDITIONER-DUAL(AUTO)&REAR SEAT-SLIDEWALK-IN&5:5 DOUBLE FLAT POWER&AUDIO(FOROVERSEAS MARKET)-*DA & 6SPEAKER; AIR CONDITIONER-DUAL(AUTO)&REAR SEAT-SLIDEWALK-IN&5:5 DOUBLE FLAT POWER&AUDIO(FOROVERSEAS MARKET)-*DA & 9SPEAKER; AIR CONDITIONER-DUAL(AUTO)&REAR SEAT-SLIDEWALK-IN&5:5 DOUBLE FLAT POWER&AUDIO(FOROVERSEAS MARKET)-AVN(JBL) & 14SPEAKER; AIR CONDITIONER-DUAL(AUTO)&REAR SEAT-SLIDEWALK-IN&5:5 DOUBLE FLAT POWER&AUDIO(FOROVERSEAS MARKET)-AVN(PIONEER) & 14SPEAKER; AIR CONDITIONER-DUAL(AUTO)&REAR SEAT-SLIDEWALK-IN&5:5 DOUBLE FLAT POWER&AUDIO(FOROVERSEAS MARKET)-CD & 6SPEAKER; AIR CONDITIONER-DUAL(MANUAL)&REAR SEAT-SLIDEWALK-IN&5:5 DOUBLE FLAT MANUAL; PACKAGE TRAY TRIM & TONNEAU COVER-WITH&AIR CONDITIONER-DUAL(AUTO)&REAR SEAT-SLIDEWALK-IN&5:5 DOUBLE FLAT MANUAL; PACKAGE TRAY TRIM & TONNEAU COVER-WITH&AIR CONDITIONER-DUAL(AUTO)&REAR SEAT-SLIDEWALK-IN&5:5 DOUBLE FLAT POWER; PACKAGE TRAY TRIM & TONNEAU COVER-WITH&AIR CONDITIONER-DUAL(AUTO)&REAR SEAT-SLIDEWALK-IN&5:5 DOUBLE FLAT POWER&AUDIO(FOR OVERSEAS MARKET)-*DA & 6SPEAKER; PACKAGE TRAY TRIM & TONNEAU COVER-WITH&AIR CONDITIONER-DUAL(AUTO)&REAR SEAT-SLIDEWALK-IN&5:5 DOUBLE FLAT POWER&AUDIO(FOR OVERSEAS MARKET)-*DA & 9SPEAKER; PACKAGE TRAY TRIM & TONNEAU COVER-WITH&AIR CONDITIONER-DUAL(AUTO)&REAR SEAT-SLIDEWALK-IN&5:5 DOUBLE FLAT POWER&AUDIO(FOR OVERSEAS MARKET)-AVN(JBL) & 14SPEAKER; PACKAGE TRAY TRIM & TONNEAU COVER-WITH&AIR CONDITIONER-DUAL(AUTO)&REAR SEAT-SLIDEWALK-IN&5:5 DOUBLE FLAT POWER&AUDIO(FOR OVERSEAS MARKET)-AVN(PIONEER) & 14SPEAKER; PACKAGE TRAY TRIM & TONNEAU COVER-WITH&AIR CONDITIONER-DUAL(AUTO)&REAR SEAT-SLIDEWALK-IN&5:5 DOUBLE FLAT POWER&AUDIO(FOR OVERSEAS MARKET)-CD & 6SPEAKER; PACKAGE TRAY TRIM & TONNEAU COVER-WITH&AIR CONDITIONER-DUAL(MANUAL)&REAR SEAT-SLIDEWALK-IN&5:5 DOUBLE FLAT MANUAL; PACKAGE TRAY TRIM & TONNEAU COVER-WITH&REAR SEAT-SLIDEWALK-IN&5:5 DOUBLE FLAT MANUAL; PACKAGE TRAY TRIM & TONNEAU COVER-WITHOUT&AIR CONDITIONER-DUAL(AUTO)&REAR SEAT-SLIDEWALK-IN&5:5 DOUBLE FLAT POWER; PACKAGE TRAY TRIM & TONNEAU COVER-WITHOUT&REAR SEAT-SLIDEWALK-IN&5:5 DOUBLE FLAT MANUAL; REAR SEAT-SLIDEWALK-IN&5:5 DOUBLE FLAT MANUAL
61303REINFORCE SUB-ASSY, CENTER BODY PILLAR, UPPER RH
61307PILLAR SUB-ASSY, CENTER BODY, INNER RH
61311BPILLAR, CENTER BODY, OUTER RH
61401FREINFORCEMENT SUB-ASSY, ROCKER PANEL, RH
61611PANEL, QUARTER, RH
BLIND SPOT MONITOR-WITH; BLIND SPOT MONITOR-WITH & WITH(REAR CROSS TRAFFIC ALERT)
61619AREINFORCEMENT, QUARTER PANEL
61631APANEL, QUARTER WHEEL HOUSE, OUTER RH
61633APANEL, QUARTER WHEEL HOUSE, INNER RH
main61633-60912supersedes 61633-60913iGRJ150..ARL; KDJ150..5FC;GRJ150,KDJ150..6F..GEN;GRJ150,TRJ150..LHD..(4FC,5F,5FC); KDJ150;GRJ150,LJ150,TRJ150..GCC,GEN201308-201506
REAR SEAT-SLIDEWALK-IN&5:5 DOUBLE FLAT MANUAL; REAR SEAT-SLIDEWALK-IN&5:5 DOUBLE FLAT POWER&SRS AIR BAG-W(*DRP&KNEE&CURTAIN(RR NO.1&NO.2 SEAT))
main61633-60908supersedes 61633-60907iGRJ150,KDJ150,LJ150,TRJ150; GRJ150,KDJ150..ARL; GRJ150,KDJ150..GCC,GEN200908-201105
REAR SEAT-SLIDEWALK-IN&5:5 DOUBLE FLAT MANUAL; REAR SEAT-SLIDEWALK-IN&5:5 DOUBLE FLAT POWER; REAR SEAT-SLIDEWALK-IN&5:5 DOUBLE FLAT POWER&SRS AIR BAG-W(*DRP&KNEE&CURTAIN(RR NO.1&NO.2 SEAT))
REAR SEAT-DOUBLE FOLD&PARALLEL SEAT,9 PERSONS SEAT
REAR SEAT-DOUBLE FOLD&PARALLEL SEAT,10PERSONS SEAT; REAR SEAT-DOUBLE FOLD&PARALLEL SEAT,9 PERSONS SEAT
61645BGUSSET, QUARTER WHEEL HOUSE, REAR RH
61701BPANEL SUB-ASSY, ROOF SIDE, INNER UPPER RH
61707LPANEL SUB-ASSY, ROOF SIDE, INNER FRONT RH
61719CBRACKET, ROOF SIDE RAIL, RH
61723AREINFORCEMENT, QUARTER WINDOW OPENING, RH NO.1
61731BPANEL, ROOF SIDE, INNER RH
61737BPANEL, ROOF SIDE, INNER LOWER RH
61757BRETAINER, DECK SIDE TRIM, LOWER
main61757-60010iGRJ150..ARL; GRJ150..GCC;LJ150,TRJ150;KDJ150..ARL,GCC; KDJ150;GRJ150,TRJ150..LHD201308-201506
AIR CONDITIONER-DUAL(AUTO); AIR CONDITIONER-DUAL(MANUAL)
61768BREINFORCE, BELT ANCHOR TO ROOF SIDE, INNER REAR RH
61824CPAD, NOISE SHUTTER, NO.1
61825CPAD, NOISE SHUTTER, NO.2
65565PATCH, SIDE PANEL REAR END, RH
main65565-60010iKDJ150..GCC;KDJ150..RHD..5FC;KDJ150..RHD..6F..GEN;GRJ150..5FC..(ARL,GCC)201308-201506
BLIND SPOT MONITOR-WITH
9011906802
main90119-06802
9163160622
main91631-60622
91631J0612
main91631-J0612
91635A0616
main91635-A0616
36 parts on this diagram · 4 diagrams in section
