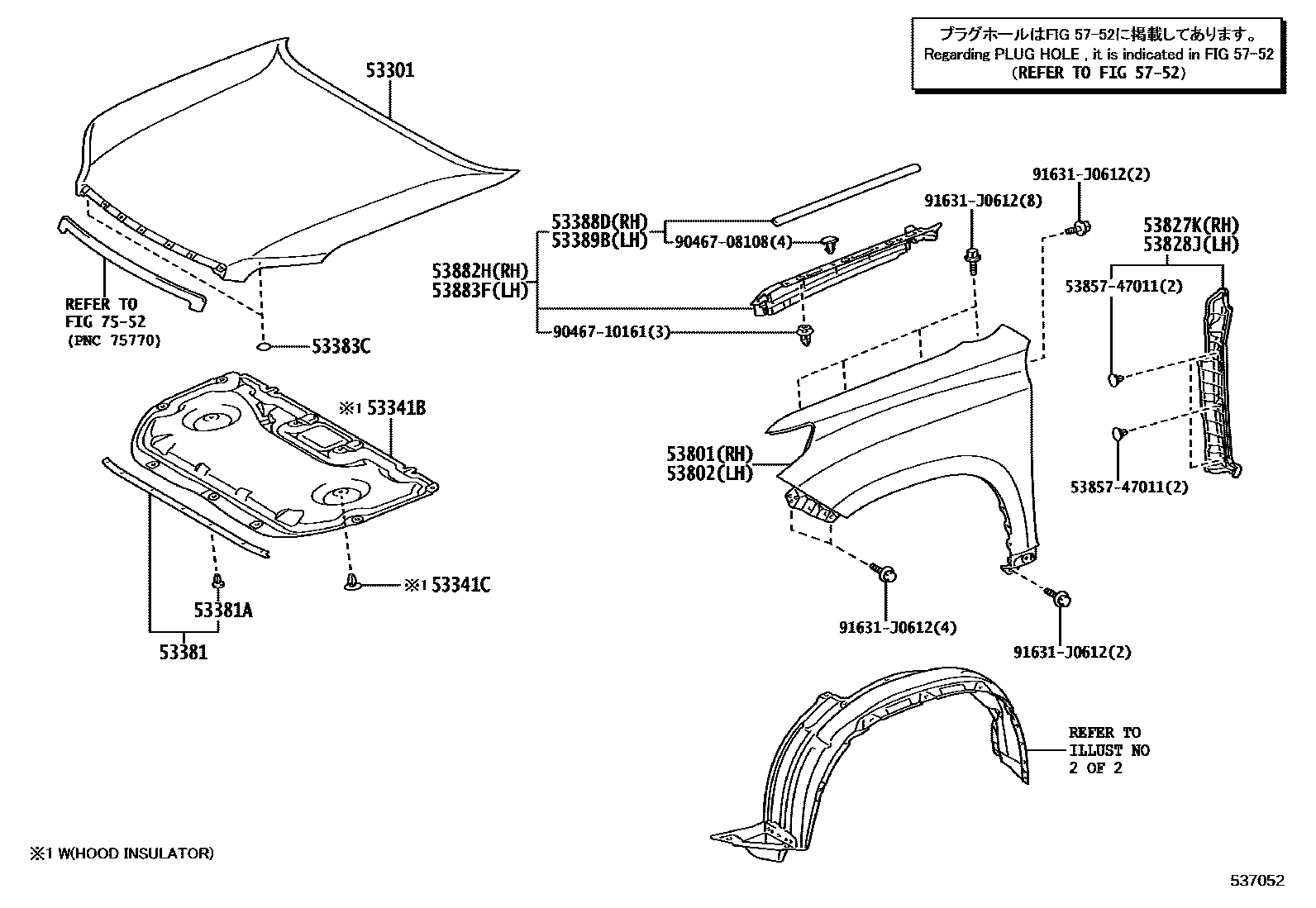

HOOD & FRONT FENDER
53301HOOD SUB-ASSY
53341BINSULATOR, HOOD
ENGINE-FOR EURO 2 CONFORMITY; ENGINE-FOR EURO 3 CONFORMITY; ENGINE-FOR EURO 4 CONFORMITY
main53341-60370iGRJ150..6F..GEN;GRJ150,TRJ150..LHD..(4FC,5F,5FC); GRJ150..ARL; GRJ150..LHD..5FC201308-201506
VX PACKAGE; VX-L PACKAGE
53341CCLIP(FOR HOOD INSULATOR)
main90467-09050×11iGRJ150..6F..GEN;GRJ150,TRJ150..LHD..(5F,6FC); GRJ150..LHD..6FC; KDJ150..GCC;GDJ150,GRJ150..ARL; KDJ150..GEN201506
ENGINE-FOR EURO 2 CONFORMITY; ENGINE-FOR EURO 3 CONFORMITY; ENGINE-FOR EURO 4 CONFORMITY; VX PACKAGE; VX-L PACKAGE
53381SEAL, HOOD TO RADIATOR SUPPORT
53381ACLIP(FOR HOOD TO RADIATOR SUPPORT SEAL)
53383CSEAL, HOOD TO COWL TOP
53388DSEAL, HOOD TO FRONT FENDER, RH
53389BSEAL, HOOD TO FRONT FENDER, LH
53801FENDER SUB-ASSY, FRONT RH
53802FENDER SUB-ASSY, FRONT LH
53827KPROTECTOR, FRONT FENDER SIDE PANEL, RH
53828JPROTECTOR, FRONT FENDER SIDE PANEL, LH
53882HSEAL, FRONT FENDER MAIN, RH
53883FSEAL, FRONT FENDER MAIN, LH
5752HOLE PLUG
7552MOULDING
5385747011RETAINER, FRONT WHEEL OPENING EXTENSION, RH
main53857-47011
9046708108
main90467-08108
9046710161
main90467-10161
91631J0612
main91631-J0612
20 parts on this diagram · 2 diagrams in section
