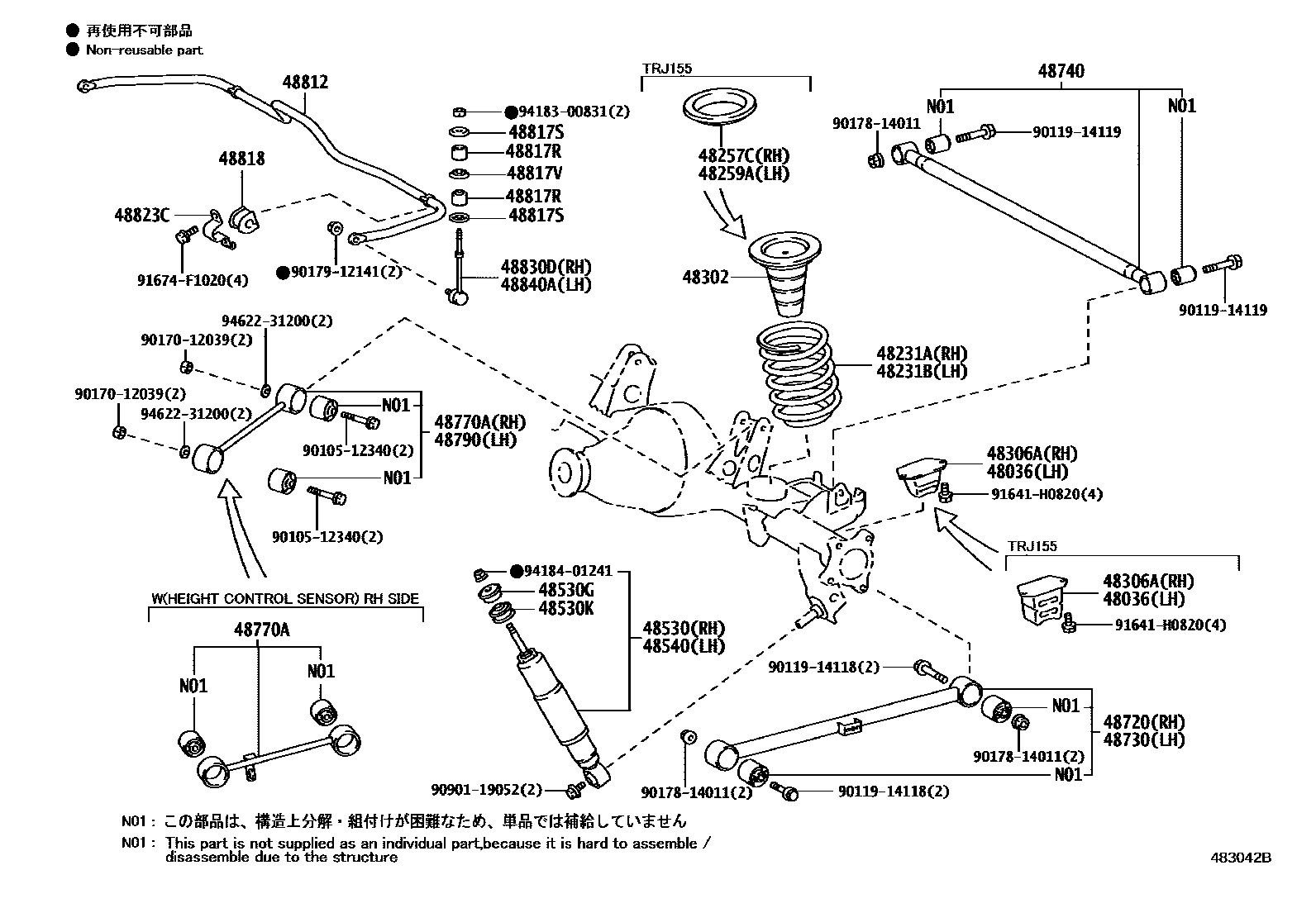

REAR SPRING & SHOCK ABSORBER
48036BUMPER SUB-ASSY, REAR SPRING, LH
48231ASPRING, COIL, REAR RH
VX-L PACKAGE&FUEL TANK-WITH(SUB TANK)&STABILIZER-WITH(KDSS)&AVS(TEMS)-WITH(W/REARAIR SUSPENSION)&REAR SEAT-SLIDEWALK-IN&5:5 DOUBLE FLAT POWER
VX-L PACKAGE&FUEL TANK-WITH(SUB TANK)&AVS(TEMS)-WITH(W/REAR AIR SUSPENSION)&REAR SEAT-SLIDEWALK-IN&5:5 DOUBLE FLAT POWER
VX-L PACKAGE&STABILIZER-WITH(KDSS)&AVS(TEMS)-WITH(W/REAR AIR SUSPENSION)&REAR SEAT-SLIDEWALK-IN&5:5 DOUBLE FLAT POWER
VX-L PACKAGE&AVS(TEMS)-WITH(W/REAR AIR SUSPENSION)&REAR SEAT-SLIDEWALK-IN&5:5 DOUBLE FLAT POWER
REAR SEAT-SLIDEWALK-IN&5:5 DOUBLE FLAT MANUAL
KAZAKHSTAN,GEORGIA,AZORES SPEC&TX-L PACKAGE&STABILIZER-WITH(KDSS)
VX PACKAGE
FUEL TANK-WITH(SUB TANK)
REAR SEAT-DOUBLE FOLD&PARALLEL SEAT,9 PERSONS SEAT
REAR SEAT-DOUBLE FOLD&PARALLEL SEAT,10PERSONS SEAT
VX-L PACKAGE&FUEL TANK-WITH(SUB TANK)&STABILIZER-WITH(KDSS)&AVS(TEMS)-WITH(W/REARAIR SUSPENSION)&REAR SEAT-SLIDEWALK-IN&5:5 DOUBLE FLAT POWER
VX-L PACKAGE&STABILIZER-WITH(KDSS)&AVS(TEMS)-WITH(W/REAR AIR SUSPENSION)&REAR SEAT-SLIDEWALK-IN&5:5 DOUBLE FLAT POWER
TX-L PACKAGE&STABILIZER-WITH(KDSS)
48231BSPRING, COIL, REAR LH
VX-L PACKAGE&FUEL TANK-WITH(SUB TANK)&STABILIZER-WITH(KDSS)&AVS(TEMS)-WITH(W/REARAIR SUSPENSION)&REAR SEAT-SLIDEWALK-IN&5:5 DOUBLE FLAT POWER
VX-L PACKAGE&AVS(TEMS)-WITH(W/REAR AIR SUSPENSION)&REAR SEAT-SLIDEWALK-IN&5:5 DOUBLE FLAT POWER
VX-L PACKAGE&STABILIZER-WITH(KDSS)&AVS(TEMS)-WITH(W/REAR AIR SUSPENSION)&REAR SEAT-SLIDEWALK-IN&5:5 DOUBLE FLAT POWER
VX-L PACKAGE&FUEL TANK-WITH(SUB TANK)&AVS(TEMS)-WITH(W/REAR AIR SUSPENSION)&REAR SEAT-SLIDEWALK-IN&5:5 DOUBLE FLAT POWER
VX-L PACKAGE&STABILIZER-WITH(KDSS)&AVS(TEMS)-WITH(W/REAR AIR SUSPENSION)&REAR SEAT-SLIDEWALK-IN&5:5 DOUBLE FLAT POWER
KAZAKHSTAN,GEORGIA,AZORES SPEC&TX-L PACKAGE&STABILIZER-WITH(KDSS)
VX PACKAGE
FUEL TANK-WITH(SUB TANK)
REAR SEAT-DOUBLE FOLD&PARALLEL SEAT,9 PERSONS SEAT
REAR SEAT-DOUBLE FOLD&PARALLEL SEAT,10PERSONS SEAT
REAR SEAT-SLIDEWALK-IN&5:5 DOUBLE FLAT MANUAL
VX-L PACKAGE&FUEL TANK-WITH(SUB TANK)&STABILIZER-WITH(KDSS)&AVS(TEMS)-WITH(W/REARAIR SUSPENSION)&REAR SEAT-SLIDEWALK-IN&5:5 DOUBLE FLAT POWER
TX-L PACKAGE&STABILIZER-WITH(KDSS)
48257CINSULATOR, REAR COIL SPRING, UPPER RH
48259AINSULATOR, REAR COIL SPRING, UPPER LH
48302SPRING SUB-ASSY, HOLLOW
48306ABUMPER SUB-ASSY, REAR SPRING, RH
48530ABSORBER ASSY, SHOCK, REAR RH
MARK 48530-60200
MARK 48530-60201
MARK 48530-60230
MARK 48530-60310
MARK 48530-60311
MARK 48530-60370
MARK 48530-60202
MARK 48530-60371
48530GCUSHION, REAR SHOCK ABSORBER, NO.1
48530KCUSHION, REAR SHOCK ABSORBER, NO.2
48540ABSORBER ASSY, SHOCK, REAR LH
MARK 48530-60200
MARK 48530-60201
MARK 48530-60230
MARK 48530-60310
MARK 48530-60311
MARK 48530-60370
MARK 48530-60202
MARK 48530-60371
48720ARM ASSY, LOWER CONTROL, RH
48730ARM ASSY, LOWER CONTROL, LH
48740ROD ASSY, REAR LATERAL CONTROL
48770AARM ASSY, UPPER CONTROL, REAR RH
48790ARM ASSY, UPPER CONTROL, REAR LH
48812BAR, STABILIZER, REAR
48817RCUSHION, STABILIZER(FOR REAR)
48817SRETAINER, CUSHION, NO.1(FOR STABILIZER REAR BAR)
48817VRETAINER, CUSHION, NO.2(FOR STABILIZER REAR BAR)
48818BUSH, STABILIZER, REAR
48823CCOVER, REAR STABILIZER BRACKET
48830DLINK ASSY, REAR STABILIZER, RH
48840ALINK ASSY, REAR STABILIZER, LH
9010512340
main90105-12340
9011914118
main90119-14118
9011914119
main90119-14119
9017012039
main90170-12039
9017814011
main90178-14011
9017912141
main90179-12141
9090119052
main90901-19052
91641H0820
main91641-H0820
91674F1020
main91674-F1020
9418300831
main94183-00831
9418401241
main94184-01241
9462231200
main94622-31200
37 parts on this diagram · 5 diagrams in section
