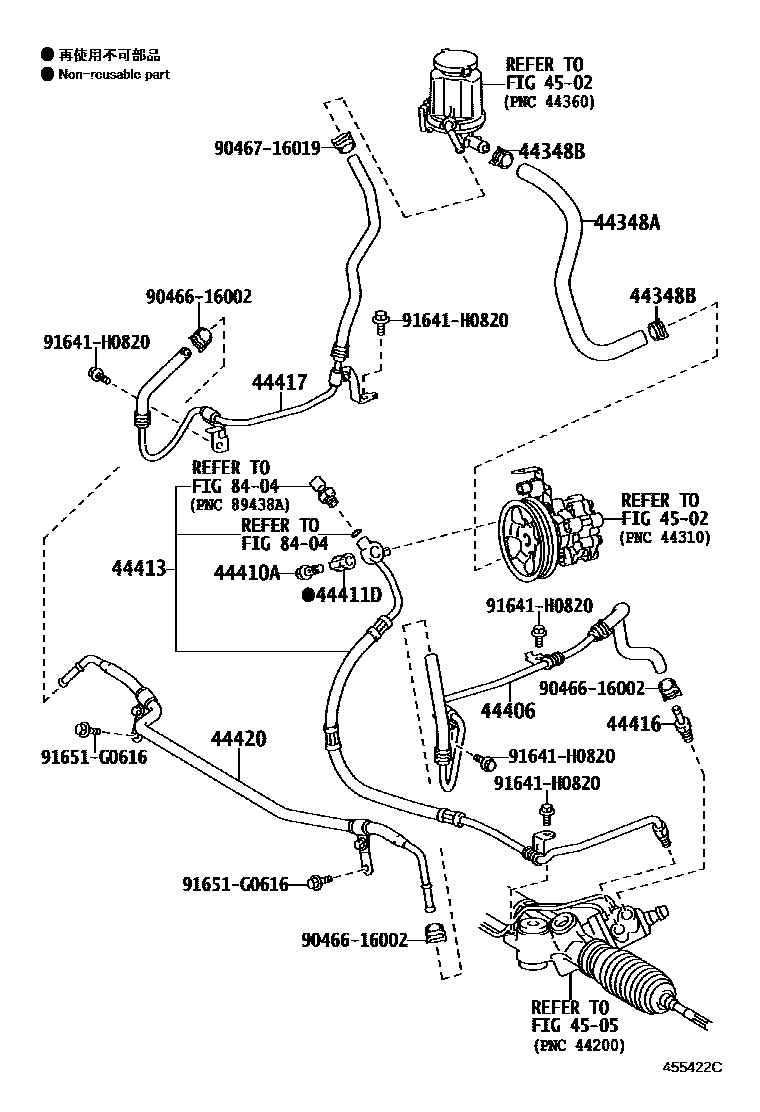

POWER STEERING TUBE

0001 1 0002 1KINETIC DYNAMIC SUSPENSION SY0003 1 0004 1 0005 1 0006 1 0007 1 0008 1 0009 1 0010 1

44348AHOSE, OIL RESERVOIR TO PUMP, NO.1

main44348-60430iGRJ150201506

main44348-60440iKDJ150201506

main44348-60450iLJ150201308-201506

main44348-60470iGDJ150201506

44348BCLAMP(FOR OIL RESERVOIR TO PUMP HOSE)

main90467-21010×2iKDJ150..6F..GCC200908-201110

44406TUBE SUB-ASSY, RETURN

main44406-60021iGRJ150..LHD201506

main44406-60040iGRJ150..ARL200908-201308

main44406-60030supersedes 44406-60021iGRJ150..6F..GEN;GRJ150..LHD..5FC; GRJ150..LHD200908-201110

VX PACKAGE; VX-L PACKAGE

44410TUBE ASSY, PRESSURE FEED

main44410-60760iKDJ150..RHD201506

main44410-60770iKDJ150..LHD201506

main44410-60780iTRJ150..RHD200908-201110

main44410-60790iTRJ15#201506

main44410-60800iLJ150..RHD201308-201506

main44410-60810iLJ150..LHD200908-201308

main44410-60A50iGDJ150201506

main44410-60A00iTRJ150201308-201506

W(ABS ONLY)

44410ABOLT, UNION(FOR PRESSURE FEED TUBE)

main90401-16034iTRJ150..RHD;KDJ150..6F..GCC200908-201110

44411DGASKET(FOR PRESSURE FEED HOSE)

main44327-30040iTRJ150..RHD;KDJ150..6F..GCC200908-201110

44413TUBE, PRESSURE FEED, NO.1

main44413-60110iGRJ150..LHD200908-201308

main44413-60120iGRJ150..ARL200908-201308

44416TUBE, RETURN(FOR STEERING GEAR OUTLET)

main44416-60450iTRJ150..RHD;KDJ150..6F..GCC200908-201110

44417TUBE, RETURN, NO.2

main44417-60010iGRJ150..LHD201506

44420COOLER ASSY, OIL

main44420-60501iGRJ150..LHD200908-201308

main44420-60510iGRJ150..ARL201308-201506

4502VANE PUMP & RESERVOIR (POWER STEERING)

→ Go to FIG 45-02

4505FRONT STEERING GEAR & LINK

→ Go to FIG 45-05

8404ELECTRONIC FUEL INJECTION SYSTEM

→ Go to FIG 84-04

9046616002

main90466-16002

9046716019

main90467-16019

91641H0820

main91641-H0820

91651G0616

main91651-G0616

17 parts on this diagram · 10 diagrams in section
