FUEL FILTER

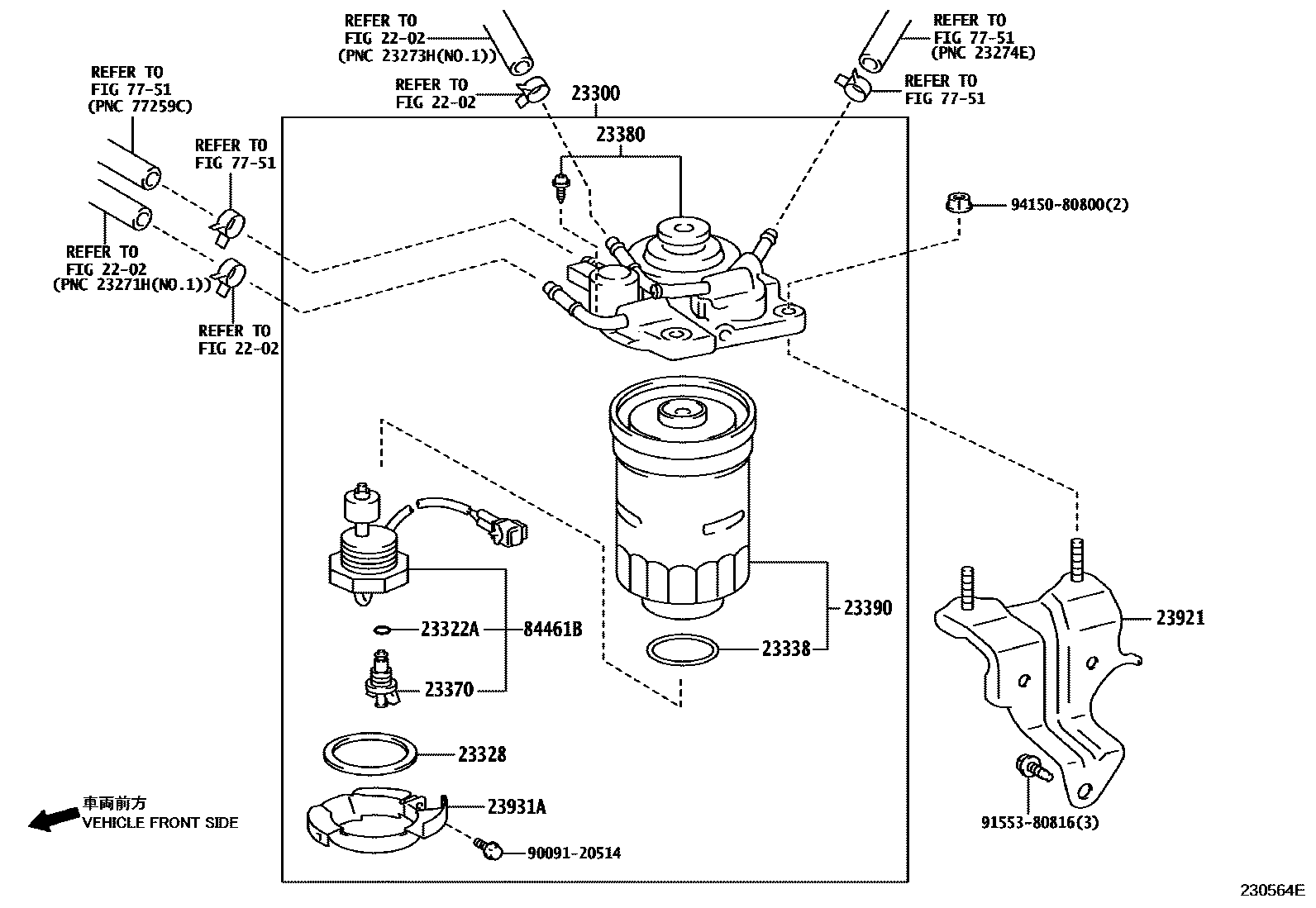

Parts diagram

2202INJECTION PUMP ASSEMBLY

→ Go to FIG 22-02

23300FILTER ASSY, FUEL

main23300-30420i201506-201708

23322PLUG, DRAIN(FOR FUEL FILTER)

main23388-64470i201308-201506

23322ARING, O(FOR DRAIN PLUG)

main23344-54010i200908-201308

23328GASKET(FOR FUEL FILTER)

main23385-30160i201308-201506

23338GASKET(FOR WARNING SWITCH)

main23344-64010i200908-201110

23370COCK ASSY, FUEL FILTER DRAIN

main23370-30010i200908-201308

23380CAP ASSY, FUEL FILTER

main23380-30161i201506

main23380-30301i200908-201110

main23380-30340i201506

main23380-30350i201506

SOUTH AFRICA SPEC; SOUTH AFRICA SPEC&FUEL TANK-WITH(SUB TANK)

23390ELEMENT ASSY, FUEL FILTER

main23390-30180i201506

main23390-30350i201301-201308

main23390-36760i201505-201506

23921SUPPORT, FUEL FILTER

main23921-30070i200908-201308

23931ACOVER, FUEL FILTER

main23931-26010i200908-201209

main23931-26031i201209-201308

7751FUEL TANK & TUBE

→ Go to FIG 77-51

84461BSWITCH, LEVEL WARNING

main84461-28040i200908-200909

main84461-60090i200908-201308

main84461-60100i200909-201202

main84461-60101i201308-201506

9009120514

main90091-20514

9155380816

main91553-80816

9415080800

main94150-80800

16 parts on this diagram · 4 diagrams in section
