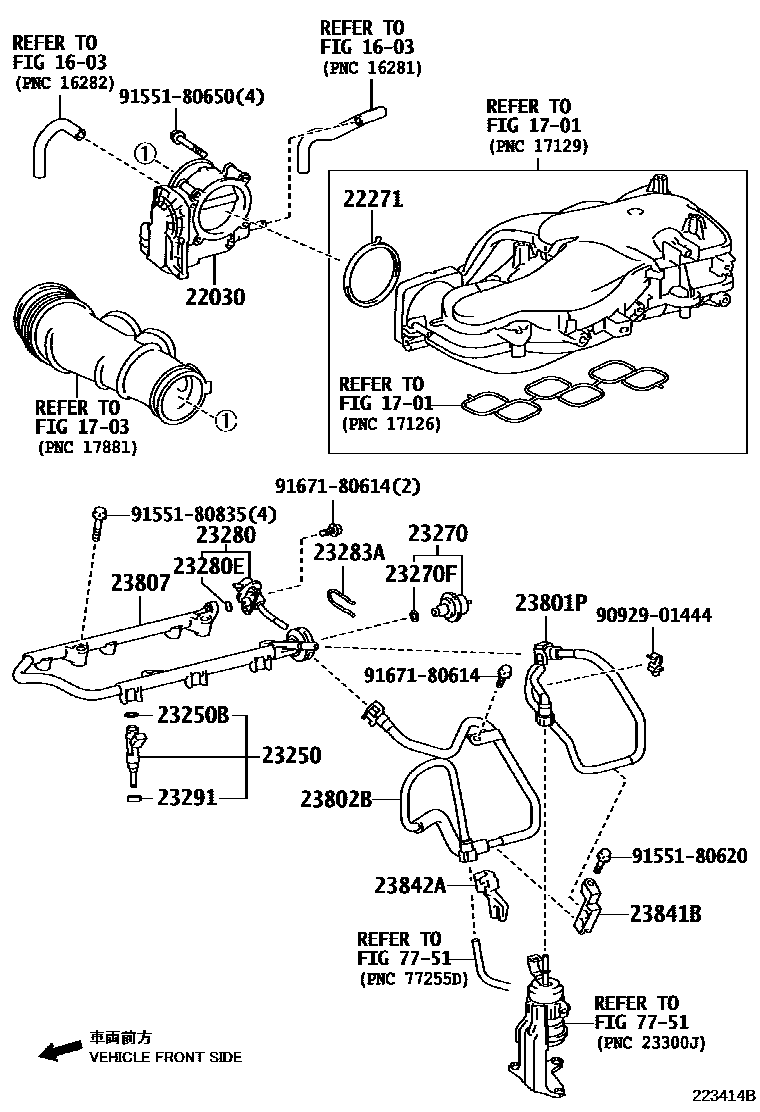

Toyota LAND CRUISER PRADO — FUEL INJECTION SYSTEM
1603RADIATOR & WATER OUTLET
1701MANIFOLD
1703AIR CLEANER
23250BRING, O(FOR FUEL INJECTOR)
23270DAMPER ASSY, FUEL PRESSURE PULSATION
23270FRING, O(FOR PULSATION DAMPER)
23280REGULATOR ASSY, FUEL PRESSURE
23280ERING, O(FOR FUEL PRESSURE REGULATOR)
23283AHOLDER, FUEL PRESSURE REGULATOR
23801PPIPE SUB-ASSY, FUEL, NO.1
23802BPIPE SUB-ASSY, FUEL, NO.2
23841BCLAMP, FUEL PIPE, NO.1(FOR EFI)
23842ACLAMP, FUEL PIPE, NO.2(FOR EFI)
7751FUEL TANK & TUBE
9092901444
9155180620
9155180650
9155180835
9167180614
24 parts on this diagram · 6 diagrams in section
FUEL INJECTION SYSTEM for Toyota LAND CRUISER PRADO
This section contains 42 genuine Toyota parts for the FUEL INJECTION SYSTEM system of the Toyota LAND CRUISER PRADO. Key components include: RADIATOR & WATER OUTLET, MANIFOLD, AIR CLEANER, BODY ASSY, THROTTLE W/THROTTLE POSITION SENSOR, GASKET, THROTTLE BODY.
