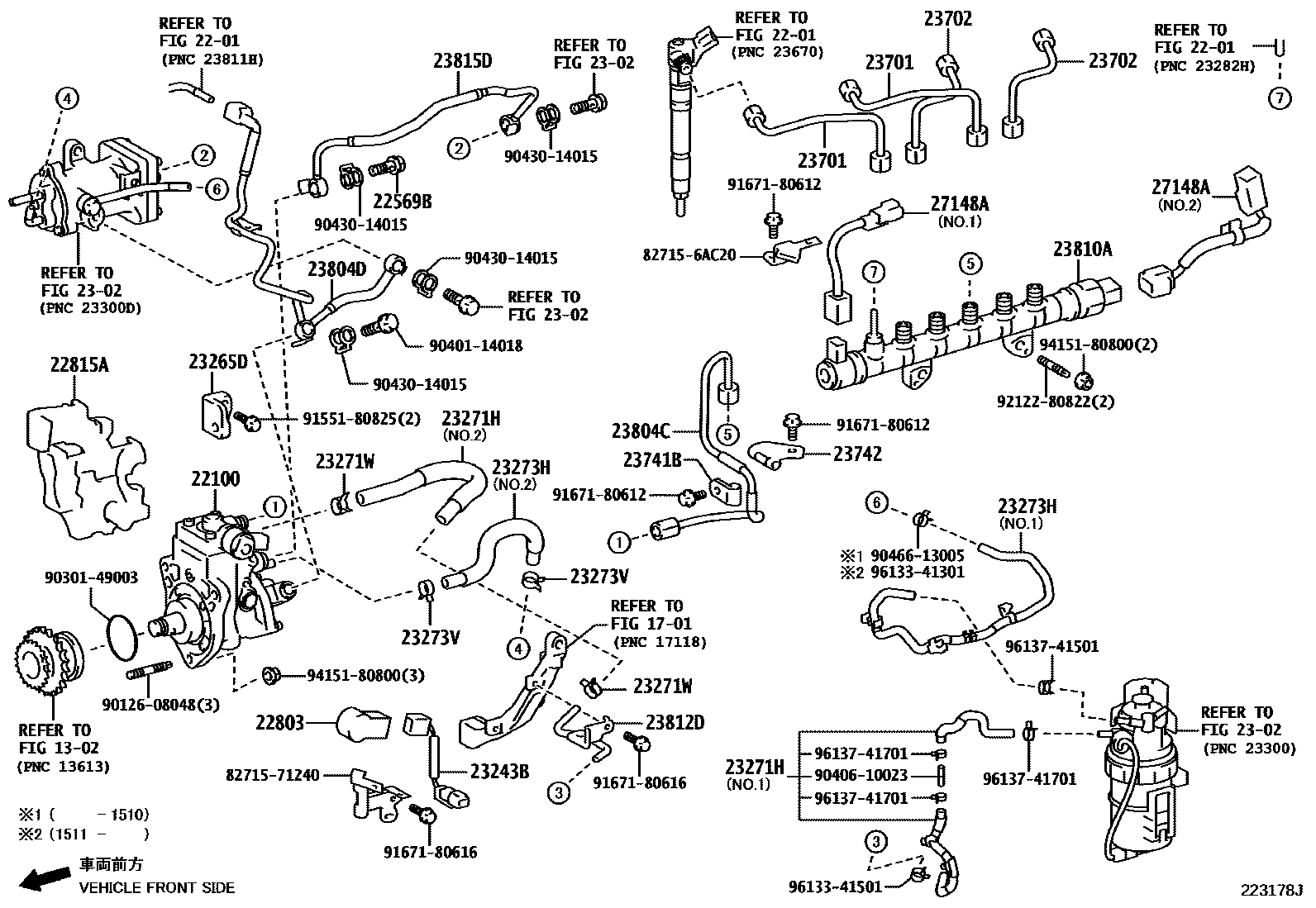

INJECTION PUMP ASSEMBLY

0001 1 0002 1 0003 1

1302

1701

2201

22100PUMP ASSY, INJECTION OR SUPPLY

main22100-11010i1GDFTV..GDJ150201506

main22100-30140i1KDFTV..KDJ150200908-201506

main22100-5D180i5LE..LJ150200908-201506

22569BSCREW, SUPPLY PUMP HOLLOW

main22569-11010i1GDFTV..GDJ150201506

22803COVER SUB-ASSY, FUEL INJECTION PUMP

main22803-11010i1GDFTV..GDJ150201506

22815AINSULATOR, INJECTION PUMP

main22815-11010i1GDFTV..GDJ150201506

sub22815-11011

main22815-30010i1KDFTV..KDJ150..6F..GCC200908-201506

2302

23243BWIRE, FUEL PUMP MOTOR

main23243-11010i1GDFTV..GDJ150201506

23265DBRACKET, FUEL PUMP, NO.1

main23265-11010i1GDFTV..GDJ150201506

23271HHOSE, FUEL, NO.1

main23271-11370i1GDFTV..GDJ150201506

NO.2

sub23271-11371

main23271-11380i1GDFTV..GDJ150201506

NO.1

sub23271-11381

23271WCLIP(FOR FUEL HOSE NO.1)

main96136-51801i1GDFTV..GDJ150201506-201708

23273HHOSE, FUEL, NO.2

main23273-11030i1GDFTV..GDJ150201506

NO.2

main23273-11050i1GDFTV..GDJ150201506

NO.1

23273VCLIP(FOR FUEL HOSE NO.2)

main96136-41501i1GDFTV..GDJ150201506-201708

23701PIPE SUB-ASSY, INJECTION, NO.1

main23701-0E010i1GDFTV..GDJ150201506

sub23701-0E011

main23701-30060i1KDFTV..KDJ150..ARL,GEN;1KDFTV..KDJ150..5FC..GCC200908-201506

main23701-54140i5LE..LJ150200908-201506

23702PIPE SUB-ASSY, INJECTION, NO.2

main23702-0E010i1GDFTV..GDJ150201506

sub23702-0E011

main23702-30060i1KDFTV..KDJ150..6F..GCC200908-201506

main23702-54140i5LE..LJ150200908-201506

23741CLAMP, INJECTION PIPE, NO.1

main23741-30010i1KDFTV..KDJ150..6F..GCC200908-201506

main23741-54030i5LE..LJ150200908-201506

23741BCLAMP, INJECTION PIPE

main23741-30010i1GDFTV..GDJ150201506

main23741-56010i5LE..LJ150200908-201506

23742CLAMP, INJECTION PIPE, NO.2

main23742-11010i1GDFTV..GDJ150201506

main23742-27010i1KDFTV..KDJ150..ARL,GEN;1KDFTV..KDJ150..5FC..GCC200908-201506

23804CPIPE SUB-ASSY, FUEL INLET

main23804-11010i1GDFTV..GDJ150201506

sub23804-11011

main23804-30060i1KDFTV..KDJ150..6F..GCC200908-201506

23804DPIPE SUB-ASSY, FUEL, NO.4

main23816-0E010i1GDFTV..GDJ150201506-201708

sub23816-0E012

23810ARAIL ASSY, COMMON

main23810-11030i1GDFTV..GDJ150201506

sub23810-11031

main23810-30100i1KDFTV..KDJ150..ARL,GEN;1KDFTV..KDJ150..5FC..GCC200908-201506

23812DPIPE, FUEL, NO.2

main23812-0E010i1GDFTV..GDJ150201506

sub23812-0E011

23815DPIPE, FUEL, NO.3

main23815-0E010i1GDFTV..GDJ150201506-201702

sub23815-0E014

sub23300-0E011

sub23816-0E014

sub23816-0E021

main23815-0E011i1GDFTV..GDJ150201702

sub23815-0E014

sub23300-0E011

sub23816-0E014

sub23816-0E021

27148AWIRE, CONNECTING

main27148-11020i1GDFTV..GDJ150201506-201708

NO.2

main27148-11030i1GDFTV..GDJ150201506-201708

NO.1

827156AC20BRACKET,WIRING HARNESS CLAMP

main82715-6AC20

8271571240BRACKET,WIRING HARNESS CLAMP

main82715-71240

9012608048

main90126-08048

9030149003

main90301-49003

9040114018

main90401-14018

9040610023

main90406-10023

9043014015

main90430-14015

9046613005

main90466-13005

9155180825

main91551-80825

9167180612

main91671-80612

9167180616

main91671-80616

9212280822

main92122-80822

9415180800

main94151-80800

9613341301

main96133-41301

9613341501

main96133-41501

9613741501

main96137-41501

9613741701

main96137-41701

42 parts on this diagram · 3 diagrams in section
