MANIFOLD

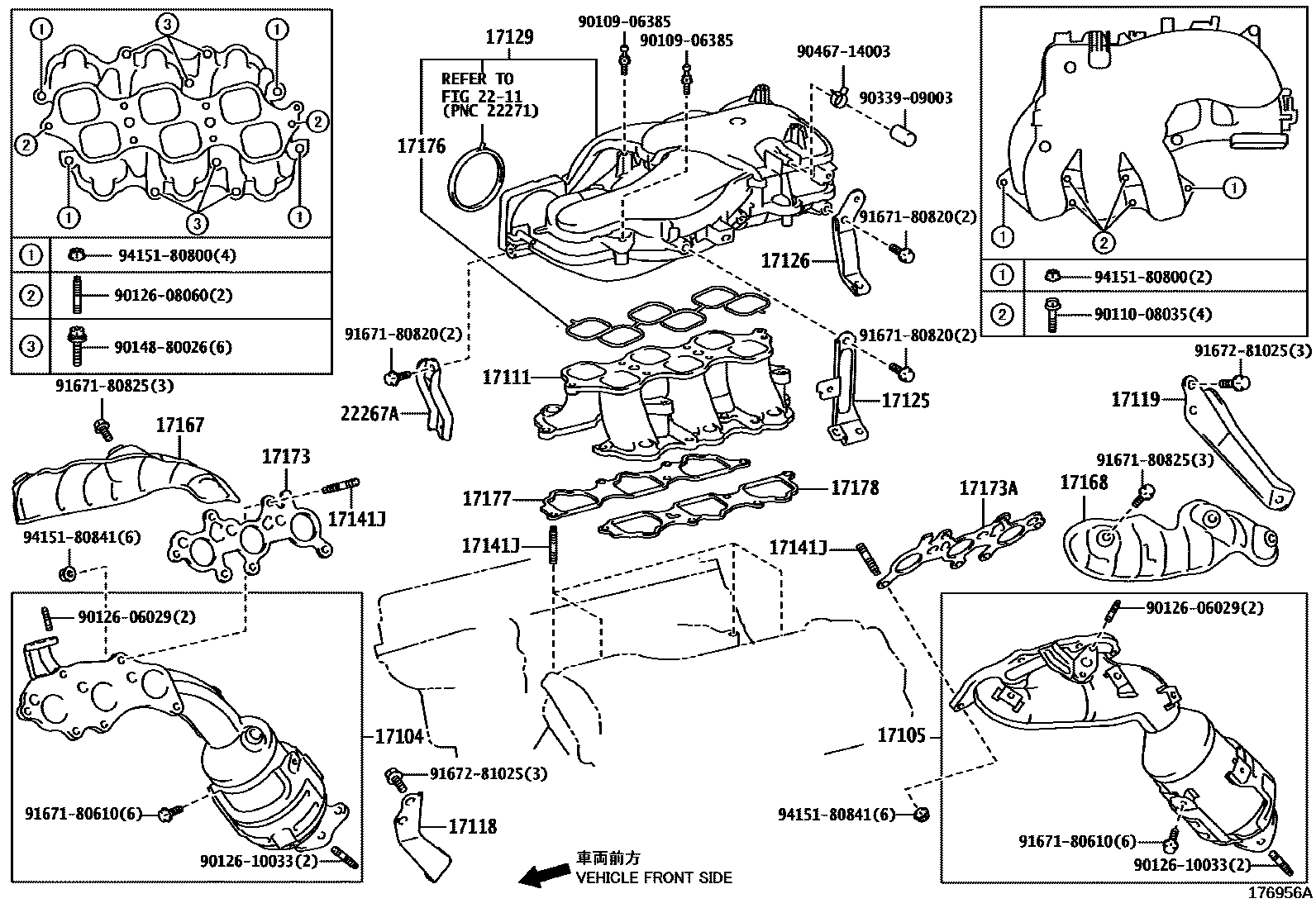

Parts diagram
17104MANIFOLD SUB-ASSY, EXHAUST, RH
main17140-31590i200908-201506
main17140-31590i201506
PAKISTAN SPEC&ENGINE-FOR EURO 3-1 CONFORMITY
main17140-31590i201506
SOUTH AMERICA SPEC(EURO 3 CONFORMITY)&ENGINE-FOR EURO 3-1 CONFORMITY
main17140-31590i201506
SOUTH AFRICA SPEC&ENGINE-FOR EURO 3-1 CONFORMITY
main17140-31600i201506
*114=*415
17105MANIFOLD SUB-ASSY, EXHAUST, LH
main17150-31590i201506
SOUTH AMERICA SPEC(EURO 3 CONFORMITY)&ENGINE-FOR EURO 3-1 CONFORMITY
main17150-31590i200908-201506
main17150-31590i201506
PAKISTAN SPEC&ENGINE-FOR EURO 3-1 CONFORMITY
main17150-31590i201506
SOUTH AFRICA SPEC&ENGINE-FOR EURO 3-1 CONFORMITY
main17150-31600i201506
*114=*414
17111MANIFOLD, INTAKE
main17101-11400i201506-201708
sub17101-11401
main17101-30090i200908-201506
main17111-31200i200908-201708
main17111-54113i200908-201506
main17120-0C020i200908-201506
main17120-75042i201506-201708
sub17120-75043
17118STAY, MANIFOLD
main17118-11390i201506
main17118-30140i200908-201506
main17118-31030i200908-201506
main17118-75060i200908-201506
main17568-11170i201506
NO.1
main17569-11140i201506
NO.2
17119STAY, MANIFOLD, NO.2
main17119-31040i200908-201506
17125STAY, SURGE TANK, NO.1
main17125-31070i200908-201506
17126STAY, SURGE TANK, NO.2
main17126-31060i200908-201108
sub17126-31061
main17126-31061i201109-201506
17129TANK, INTAKE AIR SURGE
main17109-31110i200908-201111
sub17109-31180
main17109-31112i201205-201209
sub17109-31181
main17109-31180i201112-201205
sub17109-31181
sub44750-0C082
main17109-31181i201210-201506
17141MANIFOLD, EXHAUST
main17141-11360i201506
main17141-30060i200908-201506
main17141-54151i200908-201506
main17141-75110i200908-201506
main17141-75160i201506-201708
17141JBOLT, STUD(FOR EXHAUST MANIFOLD, RH)
main90126-08052i200908-201506
main90126-10034i200908-201506
17167INSULATOR, EXHAUST MANIFOLD HEAT, NO.1
main17167-11340i201506
main17167-30020i200908-201506
main17167-31050i200908-201506
main17167-54110i200908-201506
main17167-75160i200908-201506
main17167-75190i201506
UKRAINE SPEC
main17167-75190i201506
RUSSIA SPEC
main17167-75190i201506
CHILE SPEC
17168INSULATOR, EXHAUST MANIFOLD HEAT, NO.2
main17168-11070i201506
main17168-31040i200908-201506
17173GASKET, EXHAUST MANIFOLD TO HEAD
main17173-11060i201506
main17173-30030i200908-201506
main17173-31050i200908-201506
main17173-54030i200908-201506
main17173-75040i200908-201708
17173AGASKET, EXHAUST MANIFOLD TO HEAD, LH
main17173-31050i200908-201506
17176GASKET, AIR SURGE TANK TO INTAKE MANIFOLD
main17176-31100i200908-201209
sub17176-31140
main17176-31140i201210-201506
17177GASKET, INTAKE MANIFOLD TO HEAD, NO.1
main17177-0C010i200908-201506
main17177-11080i201506
main17177-30011i200908-201506
main17177-31050i200908-201110
sub17177-31051
main17177-31051i201110-201506
main17177-54021i200908-201506
main17177-75070i201506-201708
17178GASKET, INTAKE MANIFOLD TO HEAD, NO.2
main17178-31040i200908-201110
sub17178-31041
main17178-31041i201110-201506
2211
22267ABRACKET, THROTTLE BODY
main22267-30030i200908-201506
main22267-31010i200908-201506
9010906385
main90109-06385
9011008035
main90110-08035
9012606029
main90126-06029
9012608060
main90126-08060
9012610033
main90126-10033
9014880026
main90148-80026
9033909003
main90339-09003
9046714003
main90467-14003
9167180610
main91671-80610
9167180820
main91671-80820
9167180825
main91671-80825
9167281025
main91672-81025
9415180800
main94151-80800
9415180841
main94151-80841

33 parts on this diagram · 11 diagrams in section
