STANDARD TOOL

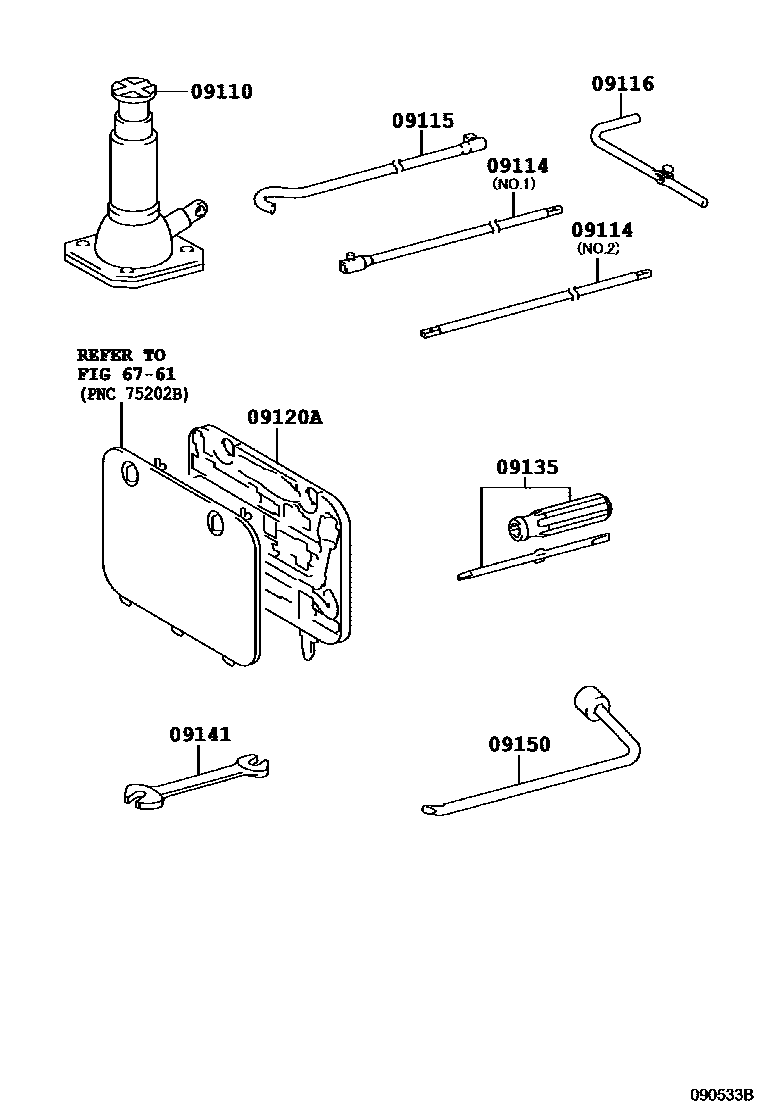

Parts diagram

09110JACK ASSY

main09111-60130i201106-201308

main09111-60131i201604

main09111-60140i200908-201105

09114EXTENSION SUB-ASSY, JACK HANDLE

main09114-35040i201308-201506

NO.2

main09114-35050i200908-201110

NO.1

09115ROD SUB-ASSY, JACK HANDLE

main09115-35110i200908-201308

09116LEVER, JACK HANDLE

main09116-35080i200908-201308

09120ACASE, TOOL

main09120-60220i200908-201308

09135DRIVER, SCREW

main09135-50060i201203-201308

main99915-10700i200908-201202

09141SPANNER

main99914-11214i200908-201110

12 X 14; 12 X 14,TOOL(PLANT INSTALL)-CASE,JACK HANDLE,DRIVER,SPANNER,WRENCH&SPARE TIRE-WITH(BACK DOOR)

09150WRENCH, HUB NUT BOX

main09150-60040i200908-201110

6761BACK DOOR PANEL & GLASS

→ Go to FIG 67-61

9 parts on this diagram · 1 diagram in section
