HEATING & AIR CONDITIONING - COMPRESSOR

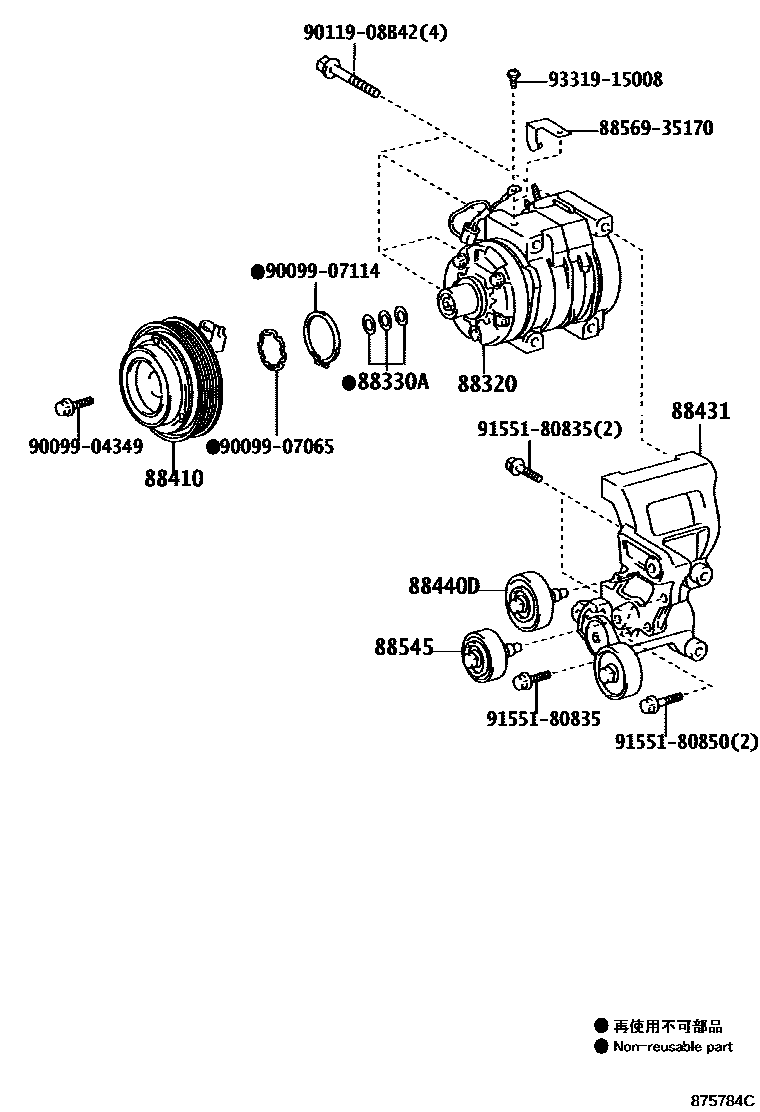

Parts diagram
88320COMPRESSOR ASSY, COOLER
main88320-35700i200301
AIR CONDITIONER-SINGLE AUTO
main88320-35710i200209
AIR CONDITIONER-SINGLE AUTO
main88320-35730i200608
AIR CONDITIONER-SINGLE AUTO
main88320-6A010i200309-200504
main88320-6A011i200504
main88320-6A020i200301-200310
main88320-6A090i200209-200503
main88320-6A091i200504
main88320-6A130i200310
main88320-35720i200209-200408
AIR CONDITIONER-SINGLE AUTO; AIR CONDITIONER-SINGLE MANUAL
main88320-6A030i200301-200310
AIR CONDITIONER-DUAL AUTO
main88320-6A040i200209-200503
AIR CONDITIONER-DUAL AUTO
main88320-6A041i200504
AIR CONDITIONER-DUAL AUTO
main88320-6A050i200209-200408
AIR CONDITIONER-DUAL AUTO; AIR CONDITIONER-DUAL MANUAL
main88320-6A060i200209-200408
AIR CONDITIONER-SINGLE AUTO; AIR CONDITIONER-SINGLE MANUAL
main88320-6A070i200209-200408
AIR CONDITIONER-DUAL AUTO; AIR CONDITIONER-DUAL MANUAL
main88320-6A081i200608
AIR CONDITIONER-DUAL AUTO
main88320-6A140i200310-200405
AIR CONDITIONER-DUAL AUTO
main88320-6A150i200408
AIR CONDITIONER-DUAL AUTO; AIR CONDITIONER-DUAL MANUAL
main88320-6A160i200408
AIR CONDITIONER-DUAL AUTO; AIR CONDITIONER-DUAL MANUAL
main88320-6A170i200408
AIR CONDITIONER-SINGLE AUTO; AIR CONDITIONER-SINGLE MANUAL
main88320-6A190i200408
AIR CONDITIONER-SINGLE AUTO; AIR CONDITIONER-SINGLE MANUAL
main88320-6A200i200405
AIR CONDITIONER-DUAL AUTO
88330AWASHER (FOR MAGNET CLUTCH)
main88335-14020i200209
AIR CONDITIONER-DUAL AUTO; AIR CONDITIONER-DUAL MANUAL; AIR CONDITIONER-SINGLE AUTO; AIR CONDITIONER-SINGLE MANUAL
88410CLUTCH ASSY, MAGNET
main88410-35400i200608
AIR CONDITIONER-DUAL AUTO; AIR CONDITIONER-SINGLE AUTO
main88410-35410i200209
AIR CONDITIONER-DUAL AUTO; AIR CONDITIONER-SINGLE AUTO
main88410-35430i200309
main88410-6A020i200310
main88410-2F010i200408
AIR CONDITIONER-DUAL AUTO; AIR CONDITIONER-DUAL MANUAL; AIR CONDITIONER-SINGLE AUTO; AIR CONDITIONER-SINGLE MANUAL
main88410-35390i200209-200408
AIR CONDITIONER-DUAL AUTO; AIR CONDITIONER-DUAL MANUAL; AIR CONDITIONER-SINGLE AUTO; AIR CONDITIONER-SINGLE MANUAL
88431BRACKET, COMPRESSOR MOUNTING, NO.1
main16620-30010i200608
main88431-22331i200209
main88431-26370i200209
AIR CONDITIONER-DUAL AUTO; AIR CONDITIONER-SINGLE AUTO; AIR CONDITIONER-SINGLE MANUAL AFTER SET
main88431-25290i200408
AIR CONDITIONER-DUAL AUTO; AIR CONDITIONER-DUAL MANUAL; AIR CONDITIONER-SINGLE AUTO; AIR CONDITIONER-SINGLE MANUAL
main88431-26390i200402-200408
AIR CONDITIONER-SINGLE MANUAL AFTER SET
88440DPULLEY ASSY, IDLE NO.2
main88440-35101i200608
AIR CONDITIONER-DUAL AUTO; AIR CONDITIONER-SINGLE AUTO
88545PULLEY ASSY, IDLE
main88440-22100i200209
NO.1
main88440-26070i200209
NO.2
main88440-35130i200608
AIR CONDITIONER-DUAL AUTO; AIR CONDITIONER-SINGLE AUTO; AIR CONDITIONER-SINGLE MANUAL AFTER SET,NO.1
main88440-60050i200209
AIR CONDITIONER-DUAL AUTO; AIR CONDITIONER-SINGLE AUTO; AIR CONDITIONER-SINGLE MANUAL AFTER SET
main88440-25070i200408
AIR CONDITIONER-DUAL AUTO; AIR CONDITIONER-DUAL MANUAL; AIR CONDITIONER-SINGLE AUTO; AIR CONDITIONER-SINGLE MANUAL
main88440-26100i200209-200408
AIR CONDITIONER-DUAL AUTO; AIR CONDITIONER-DUAL MANUAL; AIR CONDITIONER-SINGLE AUTO; AIR CONDITIONER-SINGLE MANUAL
main88440-35101i200608
AIR CONDITIONER-SINGLE MANUAL AFTER SET,NO.2
8856935170CLAMP (FOR COOLER RELAY)
main88569-35170
9009904349
main90099-04349
9009907065
main90099-07065
9009907114
main90099-07114
9011908B42
main90119-08B42
9155180835
main91551-80835
9155180850
main91551-80850
9331915008
main93319-15008

14 parts on this diagram · 7 diagrams in section
