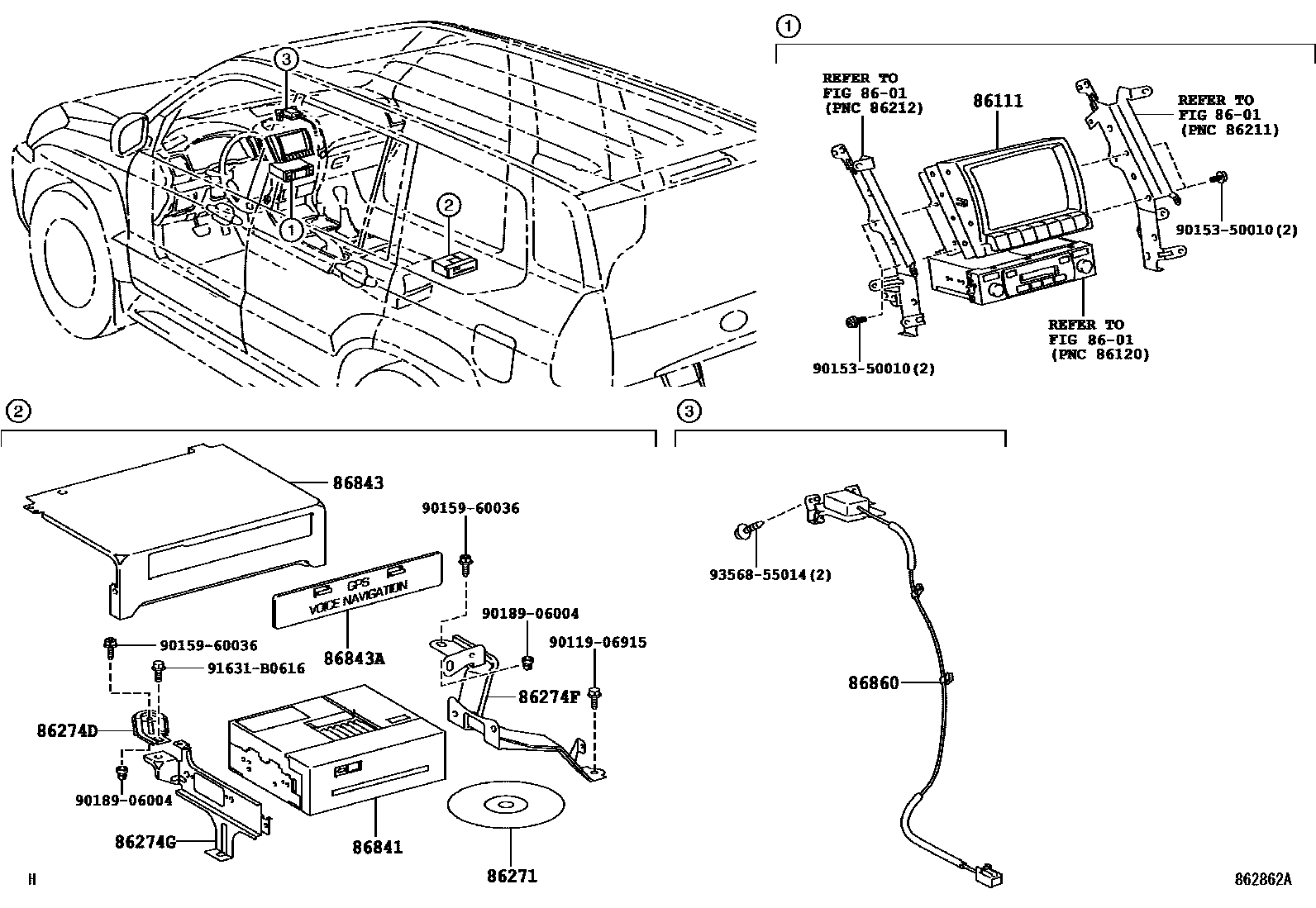

NAVIGATION & FRONT MONITOR DISPLAY

8601RADIO RECEIVER & AMPLIFIER & CONDENSER

→ Go to FIG 86-01

86111MULTI-DISPLAY

main86111-0G010iGRJ120..CHI200606-201003

DENSO,AUDIO(FOR OVERSEAS MARKET)-05EMV 9SP W(BLUETOOTH)

86271DISC, DISC PLAYER

main86271-0W021iGRJ120..CHI200606-200607

AUDIO(FOR OVERSEAS MARKET)-05EMV 9SP W(BLUETOOTH)

main86271-0W022iGRJ120..CHI200608-200707

AUDIO(FOR OVERSEAS MARKET)-05EMV 9SP W(BLUETOOTH)

main86807-0W023iGRJ120..CHI200708-200804

AUDIO(FOR OVERSEAS MARKET)-05EMV 9SP W(BLUETOOTH)

main86807-0W024iGRJ120..CHI200805-200905

AUDIO(FOR OVERSEAS MARKET)-05EMV 9SP W(BLUETOOTH)

main86807-0W025iGRJ120..CHI200906-200909

AUDIO(FOR OVERSEAS MARKET)-05EMV 9SP W(BLUETOOTH)

main86807-0W026iGRJ120..CHI200910

AUDIO(FOR OVERSEAS MARKET)-05EMV 9SP W(BLUETOOTH)

86274DBRACKET, DISC PLAYER

main86274-60190iGRJ120..CHI200606

AUDIO(FOR OVERSEAS MARKET)-05EMV 9SP W(BLUETOOTH)

86274FBRACKET, DISC PLAYER, NO.2

main86274-60270iGRJ120..CHI200606

AUDIO(FOR OVERSEAS MARKET)-05EMV 9SP W(BLUETOOTH)

86274GBRACKET, DISC PLAYER, NO.3

main86274-60280iGRJ120..CHI200606

AUDIO(FOR OVERSEAS MARKET)-05EMV 9SP W(BLUETOOTH)

86841COMPUTER, NAVIGATION

main86841-60020iGRJ120..CHI200606

AUDIO(FOR OVERSEAS MARKET)-05EMV 9SP W(BLUETOOTH)

86843COVER, NAVIGATION COMPUTER

main86804-60020iGRJ120..CHI200606

AUDIO(FOR OVERSEAS MARKET)-05EMV 9SP W(BLUETOOTH)

86843ACOVER, NAVIGATION COMPUTER

main86846-48010iGRJ120..CHI200606

AUDIO(FOR OVERSEAS MARKET)-05EMV 9SP W(BLUETOOTH)

86860ANTENNA ASSY, NAVIGATION

main86860-60100iGRJ120..CHI200606

AUDIO(FOR OVERSEAS MARKET)-05EMV 9SP W(BLUETOOTH)

9011906915

main90119-06915

9015350010

main90153-50010

9015960036

main90159-60036

9018906004

main90189-06004

91631B0616

main91631-B0616

9356855014

main93568-55014

16 parts on this diagram · 1 diagram in section
