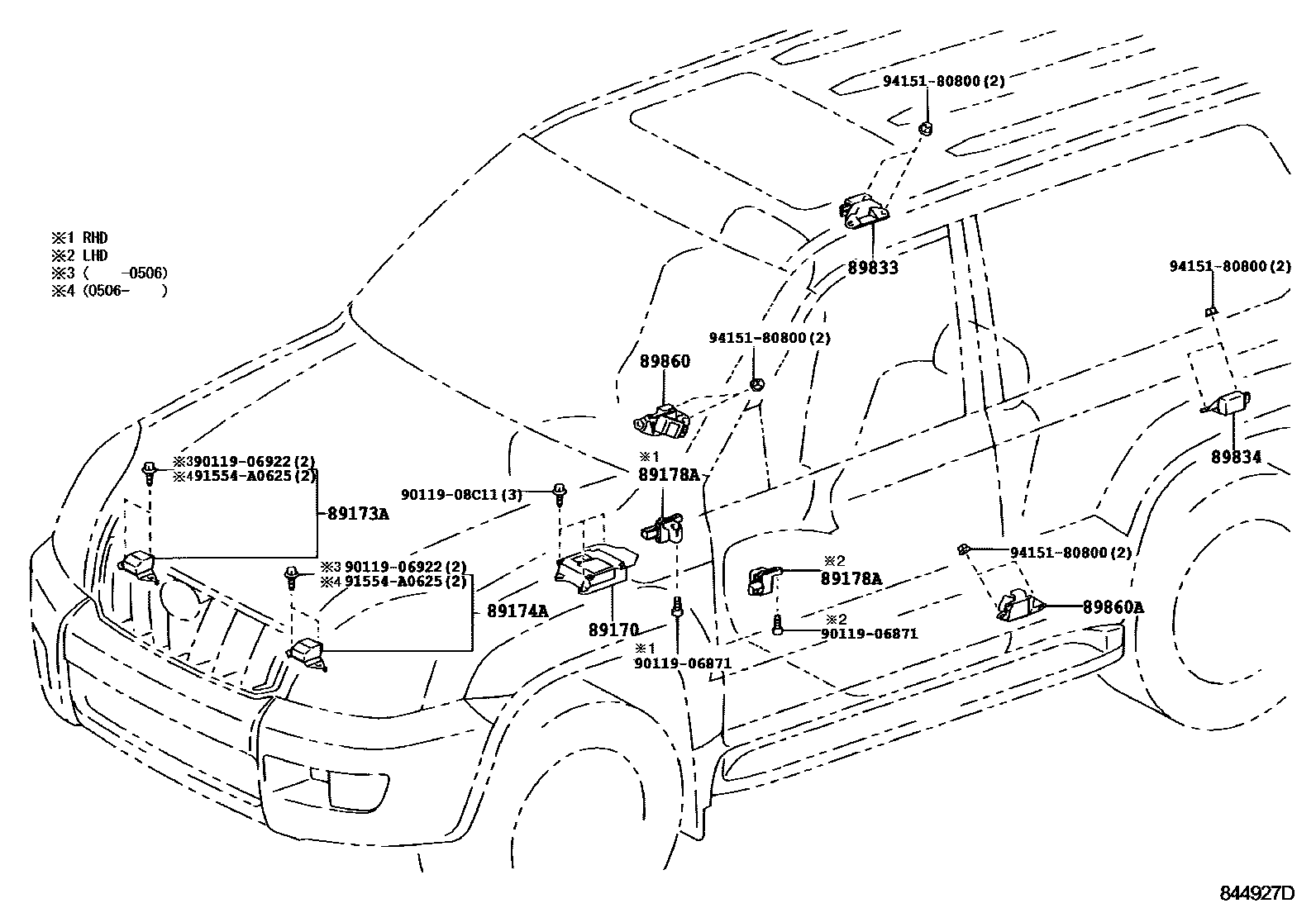

AIR BAG
89170SENSOR ASSY, AIRBAG
SRS AIR BAG-DRIVER & PASSENGER
ABS-W(ABS& VSC & ACTIVE TRACTION CONTROL)
89173ASENSOR, AIRBAG, FRONT RH
main89173-49405iGRJ12#,KZJ120,LJ12#,TRJ12#..GCC,GEN; GRJ120,KDJ120,KZJ120..ARL; TRJ120..GEN;GRJ12#,KZJ120,LJ12#,TRJ125..GCC,GEN200506-200908
MARK=89173-45050; SRS AIR BAG-DRIVER & PASSENGER & SIDE & CURTAIN,MARK=89173-45050; SRS AIR BAG-DRIVER & PASSENGER,MARK=89173-45050
89174ASENSOR, AIRBAG, FRONT LH
main89173-39335iGRJ12#,KZJ120,LJ12#,RZJ12#,TRJ12#..GCC,GEN; GRJ120,KZJ120,RZJ120..ARL; RZJ120,TRJ120..GEN;GRJ12#,KZJ120,LJ12#,RZJ125,TRJ125..GCC,GEN200209-200506
MARK=89173-35060; SRS AIR BAG-DRIVER & PASSENGER & SIDE & CURTAIN,MARK=89173-35060; SRS AIR BAG-DRIVER & PASSENGER,MARK=89173-35060
89178ASENSOR, SEAT POSITION AIRBAG
REAR SEAT-PARALLEL&SRS AIR BAG-DRIVER & PASSENGER; SRS AIR BAG-DRIVER & PASSENGER; SRS AIR BAG-DRIVER & PASSENGER & SIDE & CURTAIN
89833SENSOR, AIRBAG, REAR RH
SRS AIR BAG-DRIVER & PASSENGER & SIDE & CURTAIN
89834SENSOR, AIRBAG, REAR LH
SRS AIR BAG-DRIVER & PASSENGER & SIDE & CURTAIN
89860SENSOR ASSY, SIDE AIRBAG, RH
89860ASENSOR ASSY, SIDE AIRBAG, LH
9011906871
main90119-06871
9011906922
main90119-06922
9011908C11
main90119-08C11
91554A0625
main91554-A0625
9415180800
main94151-80800
13 parts on this diagram · 2 diagrams in section
