ELECTRONIC FUEL INJECTION SYSTEM

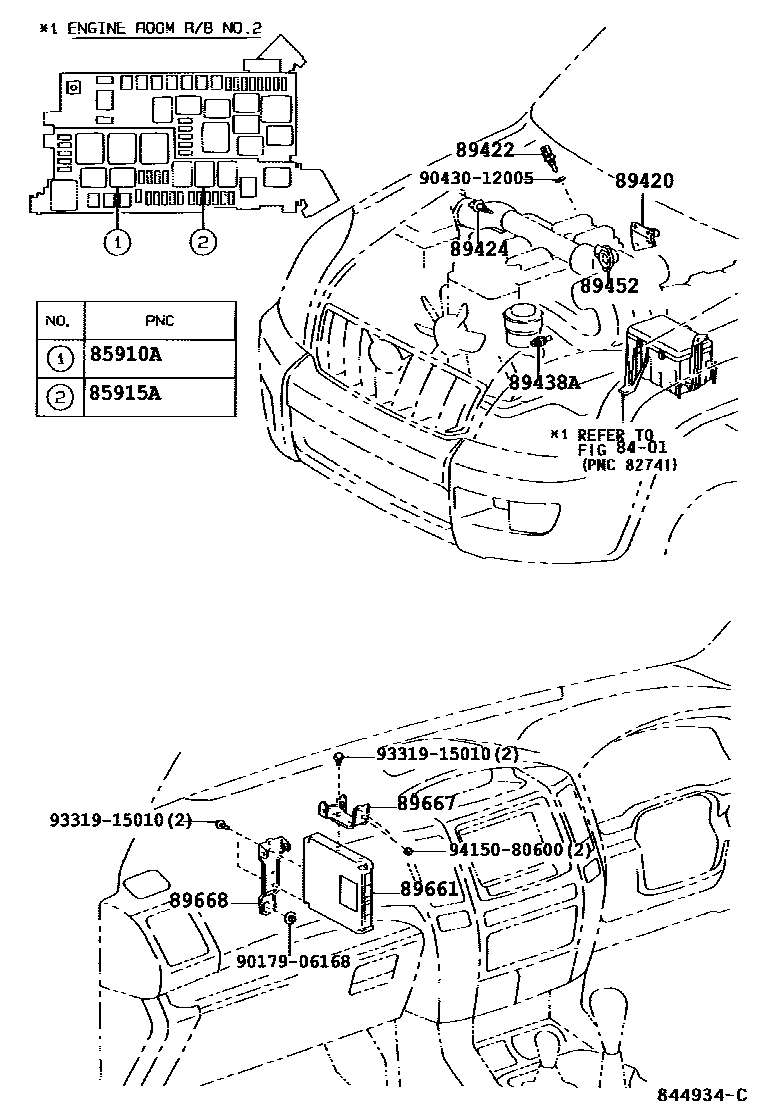

Parts diagram
8401SWITCH & RELAY & COMPUTER
→ Go to FIG 84-01
85910ARELAY ASSY, CIRCUIT OPENING (FOR EFI)
main90987-02022i200309-200409
main90987-02027i200408-200908
main90987-T2005supersedes 90987-02027i200412
MADE IN CHINA
85915ARELAY, MAIN
main90987-02022i200209-200408
main90987-02027i200408-200908
main90987-T2005supersedes 90987-02027i200412
MADE IN CHINA
89420SENSOR ASSY, VACUUM
main89420-60040i200209-200408
89422SENSOR, WATER TEMPERATURE (FOR E.F.I.)
main89422-33030i200309
main89422-35010i200209-200408
89424SENSOR, INLET AIR TEMPERATURE (FOR E.F.I.)
main89424-12010i200209-200408
89438ASWITCH, POWER STEERING OIL PRESSURE
main89438-33010i200209-200908
89452SENSOR, THROTTLE POSITION (FOR E.F.I.)
main89452-35020i200209-200408
OTHER CO IN S.AMERICA & NEW CALEDONIA; UNLEADED GASOLINE SPEC
89661COMPUTER, ENGINE CONTROL
main89661-60B50i200508-200908
main89661-60B60i200408-200503
main89661-60B61i200504-200908
main89661-60B71i200508-200608
MARK 89661-60B71
main89661-60B80i200408-200503
CHINA SPEC&06MODEL EMISSION REGULATION
main89661-60B81i200504-200508
main89661-60C00i200408-200908
OTHER CO IN S.AMERICA & NEW CALEDONIA; UNLEADED GASOLINE SPEC; VIETNAM SPEC
main89661-60C10supersedes 89661-60C30i200408-200908
OTHER CO IN S.AMERICA & NEW CALEDONIA; UNLEADED GASOLINE SPEC
main89661-60C20i200408-200908
main89661-60E20i200606
main89661-60F20i200608-200908
MARK 89661-60F20
main89661-6A150i200209-200408
OTHER CO IN S.AMERICA & NEW CALEDONIA&ANTI-THEFT SYSTEM-IMMOBILIZER; OTHER CO IN S.AMERICA & NEW CALEDONIA&ANTI-THEFT SYSTEM-IMMOBILIZER & ALARM; UNLEADED GASOLINE SPEC&ANTI-THEFT SYSTEM-IMMOBILIZER; UNLEADED GASOLINE SPEC&ANTI-THEFT SYSTEM-IMMOBILIZER & ALARM; VIETNAM SPEC&ANTI-THEFT SYSTEM-IMMOBILIZER; VIETNAM SPEC&ANTI-THEFT SYSTEM-IMMOBILIZER & ALARM
main89661-6A160i200209-200408
OTHER CO IN S.AMERICA & NEW CALEDONIA&ANTI-THEFT SYSTEM-IMMOBILIZER; OTHER CO IN S.AMERICA & NEW CALEDONIA&ANTI-THEFT SYSTEM-IMMOBILIZER & ALARM; UNLEADED GASOLINE SPEC&ANTI-THEFT SYSTEM-IMMOBILIZER; UNLEADED GASOLINE SPEC&ANTI-THEFT SYSTEM-IMMOBILIZER & ALARM
main89661-6A210i200309-200409
main89661-6A310i200301-200408
main89661-6A320i200301-200408
main89661-60D20i200812-200908
CHINA VEHICLE TYPE-NAME PLATE MARK:4&CHINA SPEC&W(EU REGULATION & CHINESE CAUTIONLABEL)
main89661-60D40i200606-200908
CHINA SPEC&EU RULES+CHAINESE COUTION
main89661-60D50i200606-200812
CHINA SPEC&EU RULES+CHAINESE COUTION
main89661-60E30i200606-200711
EXHAUST EMISSION CONTROL, PEKING SPEC.
main89661-60E50i200606-200711
CHINA SPEC&W(EU REGULATION & CHINESE CAUTION LABEL)
main89661-60E60i200606-200711
CHINA SPEC&W(EU REGULATION & CHINESE CAUTION LABEL)
main89661-60J60i200711
MYANMER SPEC
main89661-60J80i200711-200802
CHINA SPEC&W(EU REGULATION & CHINESE CAUTION LABEL)
main89661-60J90i200802-200812
CHINA VEHICLE TYPE-NAME PLATE MARK:4&CHINA SPEC&W(EU REGULATION & CHINESE CAUTIONLABEL)
main89661-60K50i200812-200908
CHINA SPEC&EU RULES+CHAINESE COUTION
main89661-6A100supersedes 89661-6A080i200209-200408
ANTI-THEFT SYSTEM-IMMOBILIZER; ANTI-THEFT SYSTEM-IMMOBILIZER & ALARM; ANTI-THEFT SYSTEM-IMMOBILIZER & ALARM&TRANSFER-PART TIME; ANTI-THEFT SYSTEM-IMMOBILIZER&TRANSFER-PART TIME
main89661-6A130supersedes 89661-6A120i200209-200408
ANTI-THEFT SYSTEM-IMMOBILIZER; ANTI-THEFT SYSTEM-IMMOBILIZER & ALARM
89667BRACKET, ENGINE CONTROL COMPUTER
main89667-60240i200309
89668BRACKET, ENGINE CONTROL COMPUTER, NO.2
main89668-60240i200209-200908
main89668-60250i200408-200908
9017906168
main90179-06168
9043012005
main90430-12005
9331915010
main93319-15010
9415080600
main94150-80600

15 parts on this diagram · 6 diagrams in section
