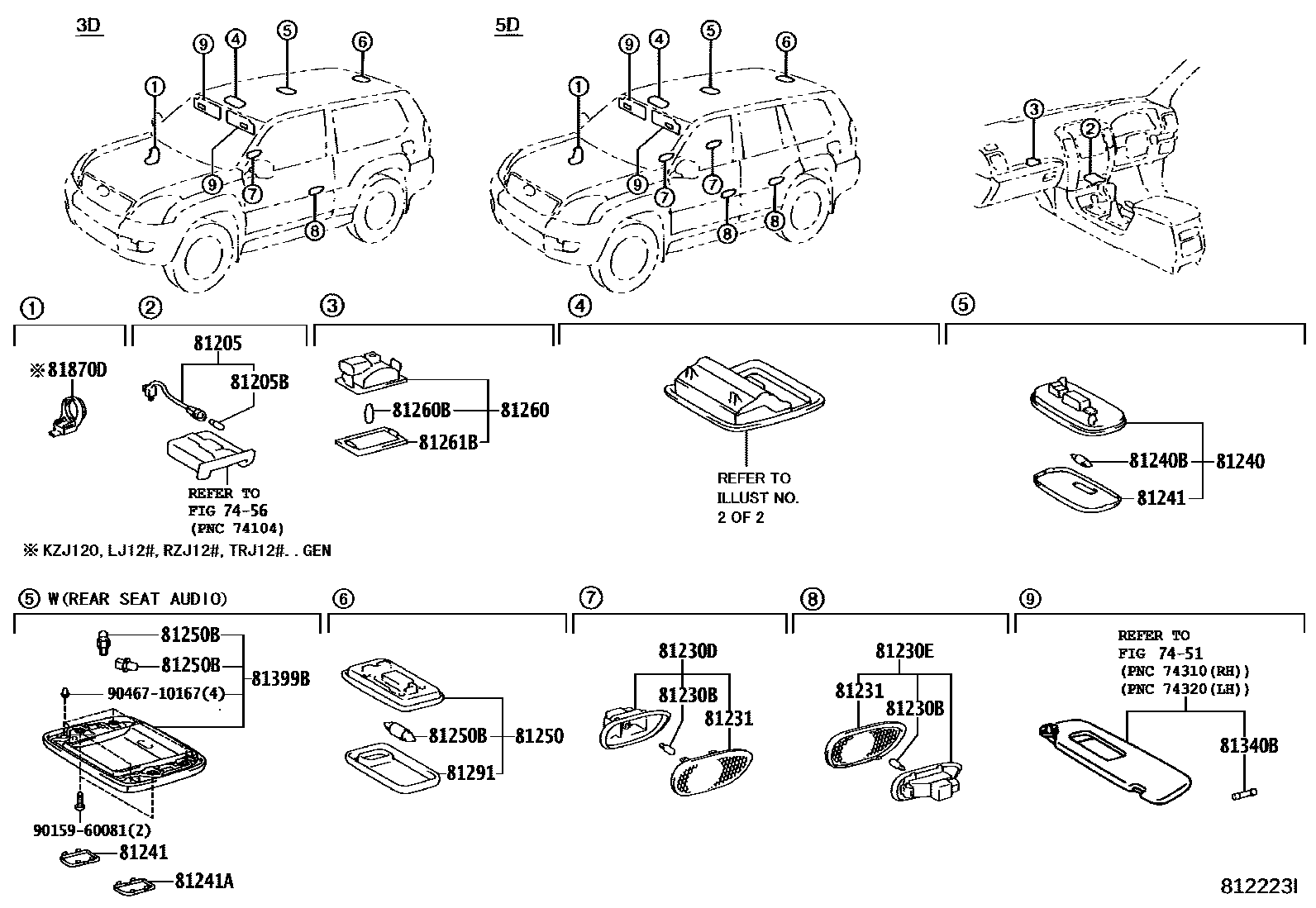

INTERIOR LAMP
7451ARMREST & VISOR
7456ASH RECEPTACLE
81205LAMP SUB-ASSY, ASH RECEPTACLE
81205BBULB, ASH RECEPTACLE LAMP
12V 1.2W W/O SOCKET
81230BBULB(FOR COURTESY LAMP)
main90981-11020×2iGRJ120,KDJ120,KZJ120,LJ120,RZJ120,TRJ120..ARL,GCC,GEN; GRJ125,LJ125,RZJ125,TRJ125200209
12V 3.8W
81230DLAMP ASSY, FRONT DOOR COURTESY, RH
main81230-33010×2iGRJ120,KDJ120,KZJ120,LJ120,RZJ120,TRJ120..ARL,GCC,GEN; GRJ125,LJ125,RZJ125,TRJ125200209
81230ELAMP ASSY, FRONT DOOR COURTESY, LH
main81310-33010×2iGRJ120,KDJ120,KZJ120,LJ120,RZJ120,TRJ120..ARL,GCC,GEN; GRJ125,LJ125,RZJ125,TRJ125200209
81231LENS, COURTESY LAMP
main81231-33010×2iGRJ120,KDJ120,KZJ120,LJ120,RZJ120,TRJ120..ARL,GCC,GEN; GRJ125,LJ125,RZJ125,TRJ125200209
RH
LH
81240LAMP ASSY, ROOM, NO.1
IVORY,TRIM0#
STONE,TRIM1#
81240BBULB, ROOM LAMP, NO.1
12V 8W
81241LENS, ROOM LAMP, NO.1
REAR AUDIO-05MODEL RR SEAT ENTERTAINMENT & DVD PYR
81241ALENS, ROOM LAMP, NO.2
REAR AUDIO-05MODEL RR SEAT ENTERTAINMENT & DVD PYR
81250LAMP ASSY, ROOM, NO.2
IVORY,TRIM0#
STONE,TRIM1#
81250BBULB, ROOM LAMP, NO.2
12V 8W
12V 8W,REAR AUDIO-05MODEL RR SEAT ENTERTAINMENT & DVD PYR
81260LAMP ASSY, GLOVE BOX
81260BBULB(FOR GLOVE BOX)
12V 1.2W W/O SOCKET
81261BLENS,GLOVE BOX LAMP
81291LENS, ROOM LAMP, NO.3(FOR REAR)
81340BBULB (FOR VANITY LAMP)
12V 2W
81399BCOVER, LENS
REAR AUDIO-05MODEL RR SEAT ENTERTAINMENT & DVD PYR,IVORY,TRIM0#
REAR AUDIO-05MODEL RR SEAT ENTERTAINMENT & DVD PYR,STONE,TRIM1#
81870DLAMP ASSY, KEY CYLINDER
9015960081
main90159-60081
9046710167
main90467-10167
23 parts on this diagram · 2 diagrams in section
