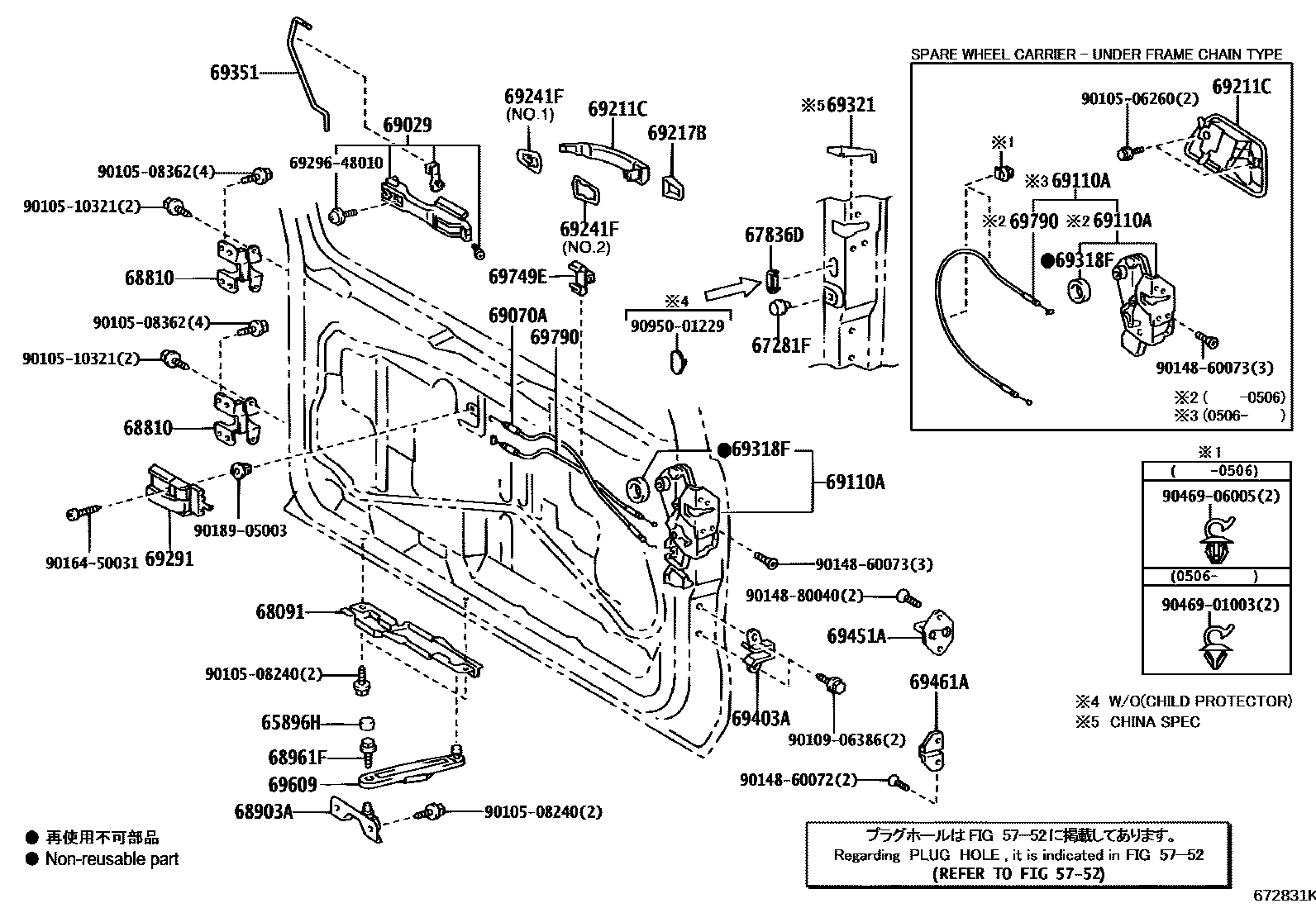

BACK DOOR LOCK & HINGE

5752

65896HCAP, COVER TOP SET BOLT, B

main65896-60020iGRJ120..CHI200209-200409

67281FSTOPPER, BACK DOOR, LOWER

main67282-46010iGRJ120..CHI200209-200605

main67282-60010iGRJ120..CHI200606

67836DCOVER, REAR DOOR LOCK CHILD PROTECTION

main67836-12040iLJ120;RZJ120,TRJ120..GCC;RZJ120,TRJ120..LHD..5F..GEN200209

W/WIRELESS DOOR LOCK&REAR SEAT-PARALLEL

main67836-12040iGRJ120,KDJ120,KZJ120,RZJ120..ARL200209

REAR SEAT-PARALLEL

68091RAIL SUB-ASSY, BACK DOOR STAY, RH

main68091-60010iGRJ12#,KDJ120,KZJ120,LJ12#,RZJ12#,TRJ12#..ARL,GCC,GEN200209-200409

68810HINGE ASSY, BACK DOOR, UPPER

main68801-60050iGRJ12#,KDJ120,KZJ120,LJ12#,RZJ12#,TRJ12#..ARL,GCC,GEN200209-200908

sub68801-60051

68903ABRACKET SUB-ASSY, BACK DOOR STAY, RH

main68903-60010iGRJ12#,KDJ120,KZJ120,LJ12#,RZJ12#,TRJ12#..ARL,GCC,GEN200209-200409

68961FBOLT, BACK DOOR STAY

main68961-60020iGRJ12#,KDJ120,KZJ120,LJ12#,RZJ12#,TRJ12#..ARL,GCC,GEN200209-200409

69029FRAME SUB-ASSY, BACK DOOR OUTSIDE HANDLE

main69029-60010iGRJ12#,KDJ120,KZJ120,LJ12#,RZJ12#,TRJ12#..ARL,GCC,GEN200209-200908

69070ACABLE ASSY, BACK DOOR LOCKING

main69070-60010iLJ120;GRJ120,RZJ120,TRJ120..GCC;RZJ120,TRJ120..LHD..5F..GEN200209

REAR SEAT-PARALLEL

main69070-60010iGRJ120,KDJ120,KZJ120,RZJ120..ARL200209

W/WIRELESS DOOR LOCK&REAR SEAT-PARALLEL

69110ALOCK ASSY, BACK DOOR W/MOTOR

main69110-60150iLJ12#,RZJ12#,TRJ12#..GCC,GEN200209-200507

sub69110-60151

main69110-60151iLJ12#,TRJ12#200508-200908

sub69110-60152

main69110-60160iLJ120;RZJ120,TRJ120..GCC;RZJ120,TRJ120..LHD..5F..GEN200209-200507

REAR SEAT-PARALLEL

sub69110-60161

main69110-60161iLJ120;TRJ120..GCC;TRJ120..LHD..5F..GEN200508-200908

REAR SEAT-PARALLEL

sub69110-60162

main69110-60170iGRJ12#,KZJ120..LHD..VX200209-200507

W/WIRELESS DOOR LOCK

sub69110-60171

main69110-60170iGRJ120..CHI200309-200507

sub69110-60171

main69110-60171iLJ12#,TRJ12#200508-200908

W/WIRELESS DOOR LOCK

sub69110-60172

main69110-60171iGRJ120..CHI200508-200912

sub69110-60172

main69110-60172iGRJ120201001

sub69110-60173

main69110-60180iGRJ120..GCC200301-200507

REAR SEAT-PARALLEL

sub69110-60181

main69110-60181iGRJ120..GCC200508-200908

REAR SEAT-PARALLEL

sub69110-60182

main69110-60181iGRJ120..GCC200508-200908

W/WIRELESS DOOR LOCK

sub69110-60182

main69110-60181iGRJ120..GCC200508-200908

W/WIRELESS DOOR LOCK&REAR SEAT-PARALLEL

sub69110-60182

69211CHANDLE, BACK DOOR OUTSIDE

main69211-28070-A2iGRJ120..CHI200409

WHITE,056 ,KL5

sub69211-28070

main69211-28070-A2iKZJ120,LJ12#,RZJ12#..GX200209-200908

WHITE,056

sub69211-28070

main69211-28070-A2iGRJ120..CHI200309-200409

WHITE,056 ,KL1 ,KL5

sub69211-28070

main69211-28070-A3iKZJ120,RZJ12#..ARL,GCC200209-200908

WHITE PEARL CS.,070

sub69211-28070

main69211-28070-B0iKZJ120,LJ12#,RZJ12#..GX200209-200908

SILVER ME.,1D4

sub69211-28070

main69211-28070-B4iKZJ120..GEN;GRJ12#,KDJ120,TRJ12#..ARL,GCC,GEN200209-200908

DK.GRAY M.M.,1E9

sub69211-28070

main69211-28070-C1iGRJ12#,KZJ120..VX..(4FC,5F)200209-200908

BLACK,202 ,3Q8 ,587 ,6Q7 ,8R4

sub69211-28070

main69211-28070-C1iLJ12#,TRJ12#..GEN200301-200908

BLACK,056 ,1D4 ,1E9 ,202 ,3Q8 ,4R4 ,587 ,6Q7 ,8R4 ,8S6

sub69211-28070

main69211-28070-C1iRZJ120..4FC..GCC;GRJ120,RZJ120..5F..ARL200301-200408

BLACK,056 ,070 ,1D4 ,1E9 ,202 ,3Q8 ,587 ,6Q7 ,8R4

sub69211-28070

main69211-28070-C1iRZJ120..4FC..GCC;GRJ120,RZJ120..5F..ARL200301-200408

BLACK,056 ,1D4 ,1E9 ,202 ,3Q8 ,587 ,6Q7 ,8R4

sub69211-28070

main69211-28070-C1iKZJ120,TRJ12#..ARL,GCC;GRJ120..GX..(5FC,6F)..ARL200301-200908

BLACK,056 ,070 ,1D4 ,1E9 ,202 ,3Q8 ,4R4 ,587 ,6Q7 ,8R4 ,8S6

sub69211-28070

main69211-28070-C1iGRJ12#,KDJ120..VX..(ARL,GCC,GEN)200408-200908

BLACK,202

sub69211-28070

main69211-28070-C1iKDJ120..GX200608-200908

BLACK,056 ,070 ,1D4 ,1E9 ,202 ,3Q8 ,4R4 ,6Q7 ,8S6

sub69211-28070

main69211-28070-D3iKZJ120,LJ12#,RZJ12#..GX200209-200908

DARK RED MC.,3Q8

sub69211-28070

main69211-28070-E1iGRJ12#,KDJ120,KZJ120,LJ12#,TRJ12#..ARL,GCC,GEN200508-200908

BEIGE ME.,4R4

sub69211-28070

main69211-28070-F2iKZJ120,LJ12#,RZJ12#..GX200209-200908

CHAMPAGNE M.M.,587

sub69211-28070

main69211-28070-G1iKZJ120..GEN;GRJ12#,KDJ120,TRJ12#..ARL,GCC,GEN200209-200908

DK.GREEN MC.,6Q7

sub69211-28070

main69211-28070-G1iGRJ120..CHI200309

DK.GREEN MC.,6Q7 ,KL2

sub69211-28070

main69211-28070-J3iGRJ125,KZJ120..VX..(4FC,5F);GRJ120..(4FC,5F)..(ARL,GCC,GEN)200209-200908

DARK BLUE M.M.,8R4

sub69211-28070

main69211-28070-J3iGRJ120..CHI200309-200606

DARK BLUE M.M.,KL3

sub69211-28070

main69211-28070-R9iGRJ12#,KDJ120,KZJ120,LJ12#,TRJ12#..ARL,GCC,GEN200508-200908

DK.BLUE MC.,8S6

sub69211-28070

main69211-60060iKZJ120,LJ12#,RZJ12#..GX200212-200301

69217BCOVER, BACK DOOR OUTSIDE HANDLE

main69217-28010-A2iKZJ120,LJ12#,RZJ12#..GX200209-200908

WHITE,056

sub69217-28010

main69217-28010-A3iKZJ120,RZJ12#..ARL,GCC200209-200908

WHITE PEARL CS.,070

sub69217-28010

main69217-28010-B0iKZJ120,LJ12#,RZJ12#..GX200209-200908

SILVER ME.,1D4

sub69217-28010

main69217-28010-B4iKZJ120,LJ12#,RZJ12#..GX200209-200908

DK.GRAY M.M.,1E9

sub69217-28010

main69217-28010-C1iRZJ125;RZJ120..5F..(GCC,GEN);GRJ120,RZJ120..GX..4FC..(ARL,GEN)200301-200408

BLACK,056 ,1D4 ,1E9 ,202 ,3Q8 ,587 ,6Q7 ,8R4

sub69217-28010

main69217-28010-C1iRZJ120..4FC..GCC;GRJ120,RZJ120..5F..ARL200301-200408

BLACK,056 ,070 ,1D4 ,1E9 ,202 ,3Q8 ,587 ,6Q7 ,8R4

sub69217-28010

main69217-28010-C1iKDJ120..GX200608-200908

BLACK,056 ,070 ,1D4 ,1E9 ,202 ,3Q8 ,4R4 ,6Q7 ,8S6

sub69217-28010

main69217-28010-C1iLJ12#,TRJ12#..GEN200301-200908

BLACK,056 ,1D4 ,1E9 ,202 ,3Q8 ,4R4 ,587 ,6Q7 ,8R4 ,8S6

sub69217-28010

main69217-28010-C1iLJ12#,TRJ12#..GEN200301-200908

BLACK,056 ,070 ,1D4 ,1E9 ,202 ,3Q8 ,4R4 ,587 ,6Q7 ,8R4 ,8S6

sub69217-28010

main69217-28010-C1iKZJ120,LJ12#,RZJ12#..GX200209-200212

BLACK,202 ,3Q8 ,587 ,6Q7 ,8R4

sub69217-28010

main69217-28010-D3iKZJ120,LJ12#,RZJ12#..GX200209-200908

DARK RED MC.,3Q8

sub69217-28010

main69217-28010-E1iGRJ120,KDJ120,KZJ120,LJ12#,TRJ12#..GX..(ARL,GCC,GEN)200508-200908

BEIGE ME.,4R4

sub69217-28010

main69217-28010-F2iTRJ12#;GRJ120..GX..(5FC,6F)..ARL200209-200908

CHAMPAGNE M.M.,587

sub69217-28010

main69217-28010-G1iKZJ120,LJ12#,RZJ12#..GX200209-200908

DK.GREEN MC.,6Q7

sub69217-28010

main69217-28010-J3iGRJ120..GX..(4FC,5F)..ARL200209-200908

DARK BLUE M.M.,8R4

sub69217-28010

main69217-28010-R9iGRJ120,KDJ120,KZJ120,LJ12#,TRJ12#..GX..(ARL,GCC,GEN)200508-200908

DK.BLUE MC.,8S6

sub69217-28010

main69217-60020-A0iGRJ120,KDJ120,TRJ12#..GX..(ARL,GCC,GEN)200209-200908

WHITE,056

sub69217-60020

main69217-60020-A0iGRJ120,KDJ120,TRJ12#..GX..(ARL,GCC,GEN)200209-200908

W/WIRELESS DOOR LOCK,WHITE,056

sub69217-60020

main69217-60020-A0iGRJ120..CHI200309-200409

WHITE,056 ,KL1 ,KL5

sub69217-60020

main69217-60020-A0iGRJ120..CHI200409

WHITE,056 ,KL5

sub69217-60020

main69217-60020-A1iGRJ12#,KDJ120..VX..(ARL,GCC)200301-200908

W/WIRELESS DOOR LOCK,WHITE PEARL CS.,070

sub69217-60020

main69217-60020-A1iGRJ12#,KDJ120..VX..(ARL,GCC)200301-200908

WHITE PEARL CS.,070

sub69217-60020

main69217-60020-B0iGRJ12#,KDJ120,KZJ120..VX..(ARL,GCC,GEN)200209-200908

SILVER ME.,1D4

sub69217-60020

main69217-60020-B0iGRJ120,KDJ120,TRJ12#..GX..(ARL,GCC,GEN)200209-200908

W/WIRELESS DOOR LOCK,SILVER ME.,1D4

sub69217-60020

main69217-60020-B1iGRJ120,KDJ120,TRJ12#..GX..(ARL,GCC,GEN)200209-200908

W/WIRELESS DOOR LOCK,DK.GRAY M.M.,1E9

sub69217-60020

main69217-60020-B1iGRJ12#,KDJ120,KZJ120..VX..(ARL,GCC,GEN)200209-200908

DK.GRAY M.M.,1E9

sub69217-60020

main69217-60020-C0iGRJ12#,KDJ120..VX..(ARL,GCC,GEN)200408-200908

BLACK,202

sub69217-60020

main69217-60020-C0iGRJ12#,KZJ120..VX..(4FC,5F)200209-200908

BLACK,202 ,3Q8 ,587 ,6Q7 ,8R4

sub69217-60020

main69217-60020-D1iGRJ120,KDJ120,TRJ12#..GX..(ARL,GCC,GEN)200209-200908

W/WIRELESS DOOR LOCK,DARK RED MC.,3Q8

sub69217-60020

main69217-60020-D1iGRJ12#,KDJ120,KZJ120..VX..(ARL,GCC,GEN)200209-200908

DARK RED MC.,3Q8

sub69217-60020

main69217-60020-E1iGRJ12#,KDJ120,KZJ120..VX..(ARL,GCC,GEN)200508-200908

W/WIRELESS DOOR LOCK,BEIGE ME.,4R4

sub69217-60020

main69217-60020-E1iGRJ120,KDJ120,KZJ120,LJ12#,TRJ12#..GX..(ARL,GCC,GEN)200508-200908

BEIGE ME.,4R4

sub69217-60020

main69217-60020-F0iGRJ12#..VX..(5FC,6F)200209-200908

W/WIRELESS DOOR LOCK,CHAMPAGNE M.M.,587

sub69217-60020

main69217-60020-F0iTRJ12#;GRJ120..GX..(5FC,6F)..ARL200209-200908

CHAMPAGNE M.M.,587

sub69217-60020

main69217-60020-G0iGRJ12#,KDJ120,KZJ120..VX..(ARL,GCC,GEN)200209-200908

DK.GREEN MC.,6Q7

sub69217-60020

main69217-60020-G0iGRJ120..CHI200309

DK.GREEN MC.,6Q7 ,KL2

sub69217-60020

main69217-60020-G0iGRJ12#,KDJ120,KZJ120..VX..(ARL,GCC,GEN)200209-200908

W/WIRELESS DOOR LOCK,DK.GREEN MC.,6Q7

sub69217-60020

main69217-60020-J2iTRJ12#;GRJ120..GX..(5FC,6F)..ARL200209-200908

W/WIRELESS DOOR LOCK,DARK BLUE M.M.,8R4

sub69217-60020

main69217-60020-J2iGRJ12#,KZJ120..VX..(4FC,5F)200209-200908

DARK BLUE M.M.,8R4

sub69217-60020

main69217-60020-J2iGRJ120..CHI200309-200606

DARK BLUE M.M.,KL3

sub69217-60020

main69217-60020-R5iGRJ12#,KDJ120,KZJ120..VX..(ARL,GCC,GEN)200508-200908

DK.BLUE MC.,8S6

sub69217-60020

main69217-60020-R5iGRJ12#,KDJ120,KZJ120..VX..(ARL,GCC,GEN)200508-200908

W/WIRELESS DOOR LOCK,DK.BLUE MC.,8S6

sub69217-60020

main69217-60030iKZJ120,LJ12#,RZJ12#..GX200212-200301

69241FPAD, DOOR OUTSIDE HANDLE

main69241-28060iGRJ120..CHI200209-200908

NO.1

main69242-33030iGRJ12#,KDJ120,KZJ120,LJ12#,TRJ12#..ARL,GCC,GEN200705-200908

NO.2

main69242-60030iGRJ12#,KDJ120,KZJ120,LJ12#,RZJ12#,TRJ12#..ARL,GCC,GEN200209-200705

NO.2

69291HANDLE ASSY, BACK DOOR INSIDE

main69205-12200-A0iGRJ120,KDJ120,KZJ120,RZJ120..ARL200209-200908

IVORY,TRIM0#

sub69205-12200

sub69205-0D070

main69205-12200-A0iGRJ120,KDJ120,KZJ120,RZJ120..ARL200209-200908

SPARE WHEEL CARRIER-UNDER FLOOR CHAIN TYPE,IVORY,TRIM0#

sub69205-12200

sub69205-0D070

main69205-12200-A0iGRJ120,KDJ120,KZJ120,RZJ120..ARL200209-200908

REAR SEAT-PARALLEL,IVORY,TRIM0#

sub69205-12200

sub69205-0D070

main69205-12200-B4iGRJ120,KDJ120,KZJ120,RZJ120..ARL200209-200908

MD.GRAY,TRIM1#

sub69205-12200

sub69205-0D070

main69205-12200-B4iGRJ120,KDJ120,KZJ120,RZJ120..ARL200209-200908

SPARE WHEEL CARRIER-UNDER FLOOR CHAIN TYPE,MD.GRAY,TRIM1#

sub69205-12200

sub69205-0D070

main69205-12200-B4iGRJ120,KDJ120,KZJ120,RZJ120..ARL200209-200908

REAR SEAT-PARALLEL,MD.GRAY,TRIM1#

sub69205-12200

sub69205-0D070

69318FSEAL, DOOR LOCK WIRING HARNESS

main69318-51010iGRJ12#,KDJ120,KZJ120,LJ12#,RZJ12#,TRJ12#..ARL,GCC,GEN200209

69321COVER, BACK DOOR LOCK

main69321-60020iTRJ120..GCC200907

CHINA SPEC

69351ROD, BACK DOOR LOCK CONTROL, UPPER

main69378-60030iGRJ12#,KDJ120,KZJ120,LJ12#,RZJ12#,TRJ12#..ARL,GCC,GEN200209-200409

69403ASTOPPER SUB-ASSY, BACK DOOR SIDE FEMALE, RH

main69403-60011iGRJ12#,KDJ120,KZJ120,LJ12#,RZJ12#,TRJ12#..ARL,GCC,GEN200209

69451APLATE, DOOR LOCK STRIKER

main69410-60010iGRJ12#,KDJ120,KZJ120,LJ12#,RZJ12#,TRJ12#..ARL,GCC,GEN200209

69461ASTOPPER, BACK DOOR SIDE MALE

main69461-60010iGRJ12#,KDJ120,KZJ120,LJ12#,RZJ12#,TRJ12#..ARL,GCC,GEN200209

69609LINK SUB-ASSY, BACK DOOR, LOWER

main69609-60010iGRJ12#,KDJ120,KZJ120,LJ12#,RZJ12#,TRJ12#..ARL,GCC,GEN200209-200409

69749ECLAMP, BACK DOOR LOCK LINK

main69749-32040iGRJ120,KDJ120,KZJ120,RZJ120..ARL200209

REAR SEAT-PARALLEL

main69749-32040iGRJ120,KDJ120,KZJ120,RZJ120..ARL200209

W/WIRELESS DOOR LOCK&REAR SEAT-PARALLEL

69790CONTROL ASSY, BACK DOOR LOCK

main69790-60090iGRJ120,KDJ120,KZJ120,RZJ120..ARL200209

REAR SEAT-PARALLEL

main69790-60090iGRJ120,KDJ120,KZJ120,RZJ120..ARL200209

W/WIRELESS DOOR LOCK&REAR SEAT-PARALLEL

6929648010SCREW, DOOR INSIDE HANDLE

main69296-48010

9010506260

main90105-06260

9010508240

main90105-08240

9010508362

main90105-08362

9010510321

main90105-10321

9010906386

main90109-06386

9014860072

main90148-60072

9014860073

main90148-60073

9014880040

main90148-80040

9016450031

main90164-50031

9018905003

main90189-05003

9046901003

main90469-01003

9046906005

main90469-06005

9095001229

main90950-01229

38 parts on this diagram · 1 diagram in section
