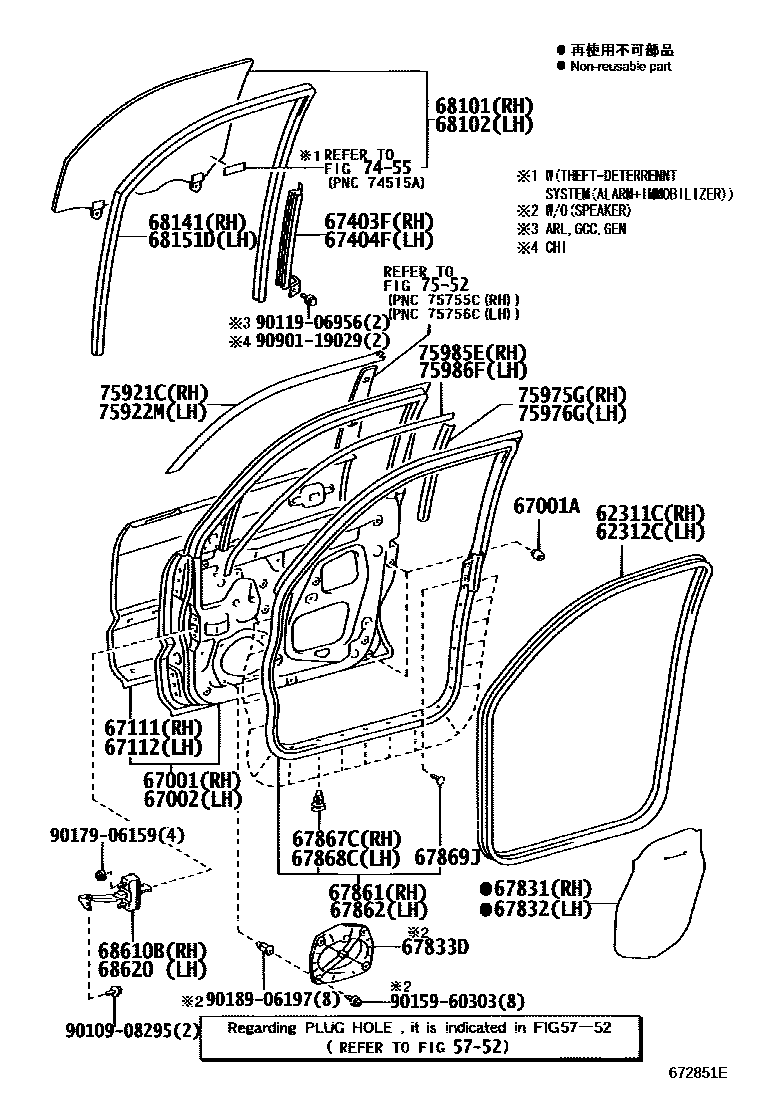

FRONT DOOR PANEL & GLASS
5752HOLE PLUG
62311CWEATHERSTRIP, FRONT DOOR OPENING TRIM, RH
IVORY,TRIM0#
MD.GRAY,TRIM1#
62312CWEATHERSTRIP, FRONT DOOR OPENING TRIM, LH
IVORY,TRIM0#
MD.GRAY,TRIM1#
67001PANEL SUB-ASSY, FRONT DOOR, RH
67001ACUSHION, FRONT DOOR PANEL
67002PANEL SUB-ASSY, FRONT DOOR, LH
67111PANEL, FRONT DOOR, OUTER RH
67112PANEL, FRONT DOOR, OUTER LH
67403FFRAME SUB-ASSY, FRONT DOOR, REAR LOWER RH
67404FFRAME SUB-ASSY, FRONT DOOR, REAR LOWER LH
67831COVER, FRONT DOOR SERVICE HOLE, RH
67832COVER, FRONT DOOR SERVICE HOLE, LH
67833DCOVER, FRONT DOOR SERVICE HOLE, NO.2 RH
67861WEATHERSTRIP, FRONT DOOR, RH
(L)
(J)
67862WEATHERSTRIP, FRONT DOOR, LH
(L)
(J)
67867CRETAINER, FRONT DOOR WEATHERSTRIP, RH
67868CRETAINER, FRONT DOOR WEATHERSTRIP, LH
67869JCLIP, FRONT DOOR WEATHERSTRIP
68101GLASS SUB-ASSY, FRONT DOOR, RH
*TT,T=5.0,GREEN
*TT,T=5.0,GREEN
*UVCTT,T=5.0,GREEN
*UVCTT,T=5.0,GREEN
*UVCTT,T=5.0,GREEN
68102GLASS SUB-ASSY, FRONT DOOR, LH
*TT,T=5.0,GREEN
*TT,T=5.0,GREEN
*UVCTT,T=5.0,GREEN
*UVCTT,T=5.0,GREEN
*UVCTT,T=5.0,GREEN
68141RUN, FRONT DOOR GLASS
68151DRUN, FRONT DOOR GLASS, LH
68610BCHECK ASSY, FRONT DOOR, RH
68620CHECK ASSY, FRONT DOOR, LH
7455CAUTION PLATE
7552MOULDING
75921CTAPE, BLACK OUT, NO.1 RH
(L)
(J)
75922MTAPE, BLACK OUT, NO.1 LH
(L)
(J)
75975GSTRIPE, FRONT DOOR, NO.2 RH
(L)
(J)
75976GSTRIPE, FRONT DOOR, NO.2 LH
(L)
(J)
75985ESTRIPE, FRONT DOOR OUTSIDE, RH
(L)
(J)
75986FSTRIPE, FRONT DOOR OUTSIDE, LH
(L)
(J)
9010908295
main90109-08295
9011906956
main90119-06956
9015960303
main90159-60303
9017906159
main90179-06159
9018906197
main90189-06197
9090119029
main90901-19029
38 parts on this diagram · 2 diagrams in section
