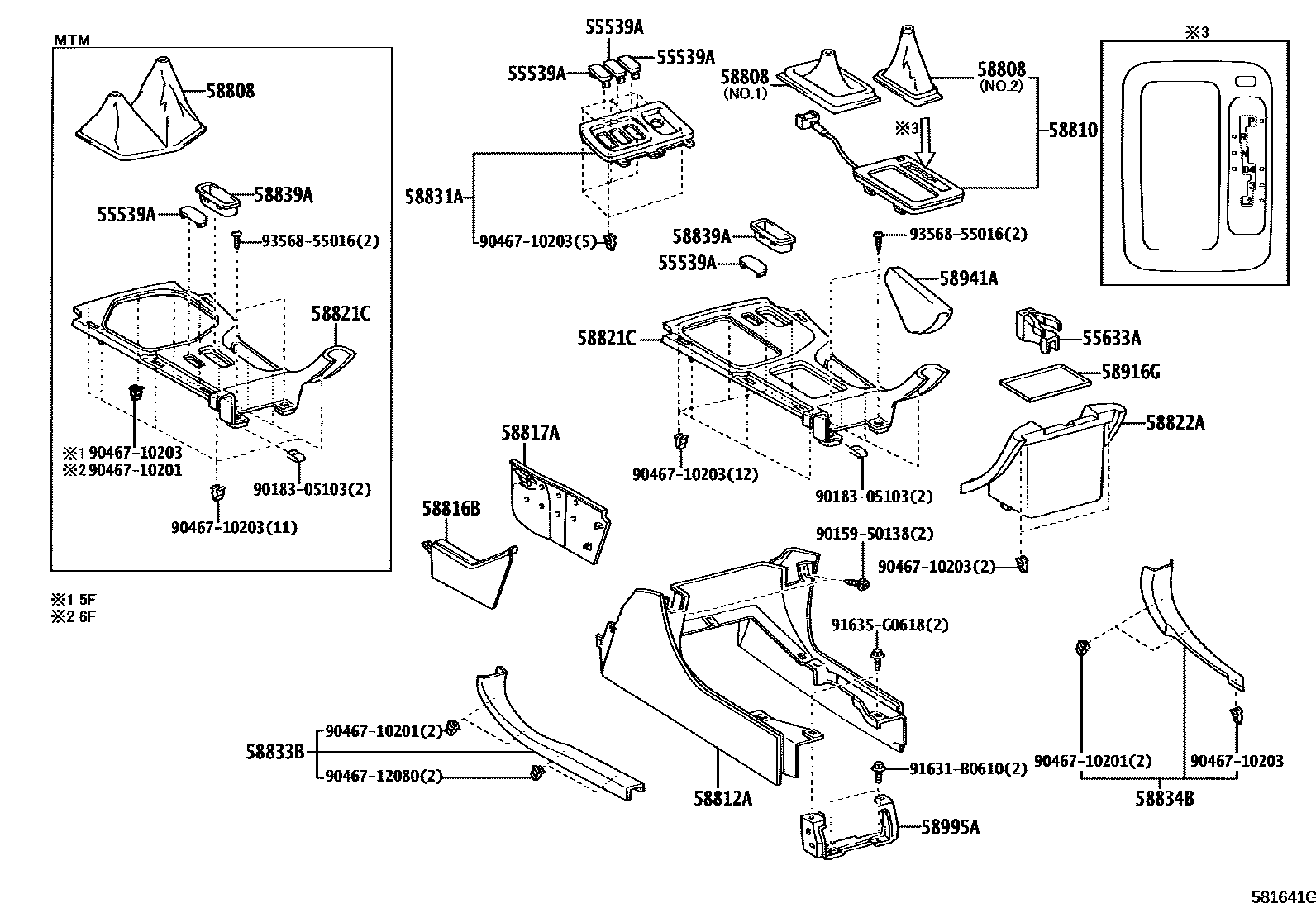

CONSOLE BOX & BRACKET
55539ACOVER, SPARE SWITCH HOLE
main55539-51020-C0iGRJ12#,KDJ120,KZJ120,LJ12#,RZJ12#,TRJ12#..ARL,GCC,GEN; GRJ12#,KZJ120..GCC,GEN; KZJ120..5F..ARL; KZJ120..ARL;GRJ120..VX..6F;GRJ12#,KDJ120..(4FC,5F,5FC)..(ARL,GCC,GEN); KZJ120..GEN;GRJ12#..(5FC,6F)..(GCC,GEN); TRJ120..LHD..5F;LJ120,RZJ120..5F..(GCC,GEN)200209-200908
ABS-W(ABS& VSC & ACTIVE TRACTION CONTROL)&AUDIO(FOR OVERSEAS MARKET)-6SP ONLY(AUDIO LESS),BLACK,TRIM0#,1#; ABS-W(ABS& VSC & ACTIVE TRACTION CONTROL)&AUDIO(FOR OVERSEAS MARKET)-AM/FM/CASETTE/CDCHANGER 6SP,BLACK,TRIM0#,1#; ABS-W(ABS& VSC & ACTIVE TRACTION CONTROL),BLACK,TRIM0#,1#; BLACK,TRIM0#,1#; LEATHER & BLACK WOOD STEERING PACKAGE,BLACK,TRIM0#,1#; REAR SEAT-PARALLEL,BLACK,TRIM0#,1#; W(*LEP1) & LEATHER SEAT PACKAGE,BLACK,TRIM0#,1#
55633ASUPPORT, INSTRUMENT PANEL CUP HOLDER, NO.1
58808COVER SUB-ASSY, SHIFTING HOLE
NO.1
REAR SEAT-PARALLEL; W(*LEP1)&REAR SEAT-PARALLEL
REAR SEAT-PARALLEL; W(*LEP1)&REAR SEAT-PARALLEL
BLACK,TRIM0#,1#,NO.2
REAR SEAT-PARALLEL; W(*LEP1)&REAR SEAT-PARALLEL
REAR SEAT-PARALLEL; W(*LEP1)&REAR SEAT-PARALLEL
58810CONSOLE ASSY
BLACK,TRIM0#,1#
BLACK,TRIM0#,1#
BLACK,TRIM0#,1#
BLACK,TRIM0#,1#
58812ABOX, CONSOLE, LOWER
BLACK,TRIM1#
SANDAL WOOD,TRIM0#
BLACK,TRIM1#
SANDAL WOOD,TRIM0#
58816BINSERT, CONSOLE BOX
BLACK,TRIM1#
SANDAL WOOD,TRIM0#
BLACK,TRIM1#
SANDAL WOOD,TRIM0#
58817AINSERT, CONSOLE BOX, FRONT NO.2
BLACK,TRIM1#
SANDAL WOOD,TRIM0#
BLACK,TRIM1#
SANDAL WOOD,TRIM0#
58821CPANEL, CONSOLE, UPPER
REAR SEAT-PARALLEL
REAR SEAT-PARALLEL
REAR SEAT-PARALLEL
REAR SEAT-PARALLEL
58822APANEL, CONSOLE, UPPER REAR
REAR SEAT-PARALLEL
58831AGARNISH, CONSOLE UPPER PANEL, FRONT
58833BGARNISH, CONSOLE UPPER PANEL, NO.1
REAR SEAT-PARALLEL; W(*LEP1)&REAR SEAT-PARALLEL
main58833-60040iGRJ120,KDJ120,KZJ120,LJ120,RZJ120,TRJ120..RHD..GX; LJ120,RZJ120..RHD..GEN200209-200908
REAR SEAT-PARALLEL; W(*LEP1)&REAR SEAT-PARALLEL
58834BGARNISH, CONSOLE UPPER PANEL, NO.2
REAR SEAT-PARALLEL; W(*LEP1)&REAR SEAT-PARALLEL
main58834-60030iGRJ120,KDJ120,KZJ120,LJ120,RZJ120,TRJ120..RHD..GX; LJ120,RZJ120..RHD..GEN200209-200908
REAR SEAT-PARALLEL; W(*LEP1)&REAR SEAT-PARALLEL
58839ACOVER, CONSOLE BOX HOLE
REAR SEAT-PARALLEL; TEMS
main58839-60040iGRJ12#,KDJ120,KZJ120,LJ12#,RZJ12#,TRJ12#..ARL,GCC,GEN; GRJ120,KZJ120..(4FC,5F)..(ARL,GCC,GEN); TRJ120..LHD..5F;LJ120,RZJ120..5F..(GCC,GEN)200302
REAR SEAT-PARALLEL; TEMS
58916GMAT, BOX BOTTOM, NO.2
main58916-60030iGRJ12#,KDJ120,KZJ120,LJ12#,RZJ12#,TRJ12#..ARL,GCC,GEN; TRJ120..LHD..5F;LJ120,RZJ120..5F..(GCC,GEN)200209
REAR SEAT-PARALLEL
58941ACOVER, PARKING BRAKE HOLE
main58809-60040iGRJ12#,KZJ120,LJ12#,RZJ12#,TRJ12#..LHD..(GCC,GEN); LJ120,RZJ120,TRJ120..LHD..5F200209-200908
REAR SEAT-PARALLEL; W(*LEP1)&REAR SEAT-PARALLEL
REAR SEAT-PARALLEL; W(*LEP1)&REAR SEAT-PARALLEL
58995ABRACKET, CONSOLE BOX MOUNTING, NO.1
9015950138
main90159-50138
9018305103
main90183-05103
9046710201
main90467-10201
9046710203
main90467-10203
9046712080
main90467-12080
91631B0610
main91631-B0610
91635G0618
main91635-G0618
9356855016
main93568-55016
24 parts on this diagram · 3 diagrams in section
