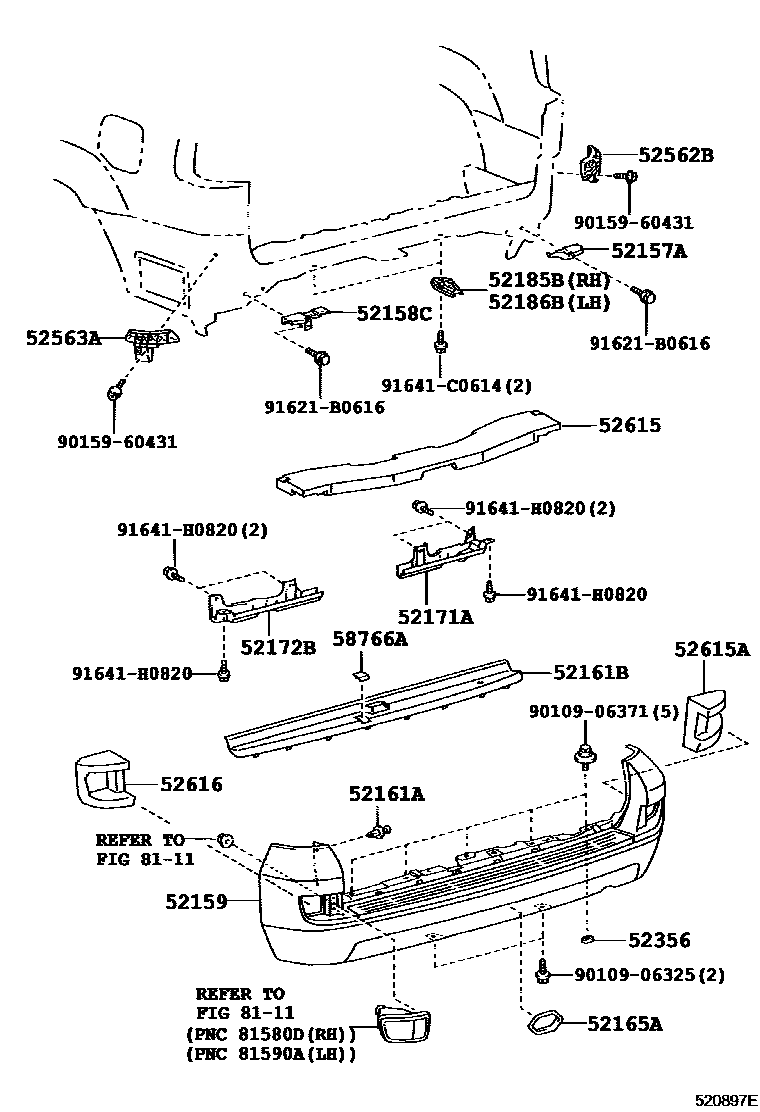

REAR BUMPER & BUMPER STAY

0001 1 0002 1

52157ASUPPORT, REAR BUMPER SIDE, NO.2 RH

main52157-60010iGRJ12#,KDJ120,KZJ120,LJ12#,RZJ12#,TRJ12#..ARL,GCC,GEN200209-200908

52158CSUPPORT, REAR BUMPER SIDE, NO.2 LH

main52158-60030iGRJ120..5FC..CHI200309

52159COVER, REAR BUMPER

main52159-60912supersedes 52159-60914iGRJ120..CHI200309-201003

PAINT REQ.

52161APIECE, REAR BUMPER, RH

main52161-16010iGRJ120..5FC..CHI200309

52161BPIECE, REAR BUMPER

main52161-60030iGRJ12#,KDJ120,KZJ120,LJ12#,RZJ12#,TRJ12#..ARL,GCC,GEN200209-200908

52165ACOVER, REAR BUMPER, UPR RH

main52165-60070×2iRZJ120,TRJ120..GEN;GRJ12#,KZJ120,LJ12#,RZJ125,TRJ125..GCC,GEN200209-200908

NO PAINT REQ.,TOWING HITCH-WITH(PINTLE HOOK)

52171AREINFORCEMENT, REAR BUMPER, NO.1

main52171-60050iGRJ12#,KDJ120,KZJ120,LJ12#,RZJ12#,TRJ12#..ARL,GCC,GEN200209-200908

52172BREINFORCEMENT, REAR BUMPER, NO.2

main52172-60030iGRJ12#,KDJ120,KZJ120,LJ12#,RZJ12#,TRJ12#..ARL,GCC,GEN200209-200908

52185BBRACKET, REAR BUMPER SIDE MOUNTING, RH

main52185-60090iGRJ12#,KDJ120,KZJ120,LJ12#,RZJ12#,TRJ12#..ARL,GCC,GEN200209-200908

52186BBRACKET, REAR BUMPER SIDE MOUNTING, LH

main52185-60090iGRJ12#,KDJ120,KZJ120,LJ12#,RZJ12#,TRJ12#..ARL,GCC,GEN200209-200908

52356CUSHION, REAR BUMPER STEP

main52356-60050×5iGRJ12#,KDJ120,KZJ120,LJ12#,RZJ12#,TRJ12#..ARL,GCC,GEN200209-200908

52562BRETAINER, REAR BUMPER, UPPER RH

main52562-60020iGRJ120..CHI200309-200806

main52562-60021iGRJ120..CHI200807

52563ARETAINER, REAR BUMPER, UPPER LH

main52563-60020iGRJ12#,KDJ120,KZJ120,LJ12#,RZJ12#,TRJ12#..ARL,GCC,GEN200209-200806

main52563-60021iGRJ120..CHI200807

52615ABSORBER, REAR BUMPER ENERGY

main52615-60010iGRJ120..5FC..CHI200309

52615AABSORBER, REAR BUMPER ENERGY, RH

main52615-60040iGRJ120..CHI200804

52616ABSORBER, REAR BUMPER ENERGY, LH

main52616-60010iGRJ120..CHI200804

58766ACOVER, JACK BOX HOLE

main58766-60010iGRJ12#,KDJ120,KZJ120,LJ12#,RZJ12#,TRJ12#..ARL,GCC,GEN200209-200908

8111REAR COMBINATION LAMP

→ Go to FIG 81-11

9010906325

main90109-06325

9010906371

main90109-06371

9015960431

main90159-60431

91621B0616

main91621-B0616

91641C0614

main91641-C0614

91641H0820

main91641-H0820
