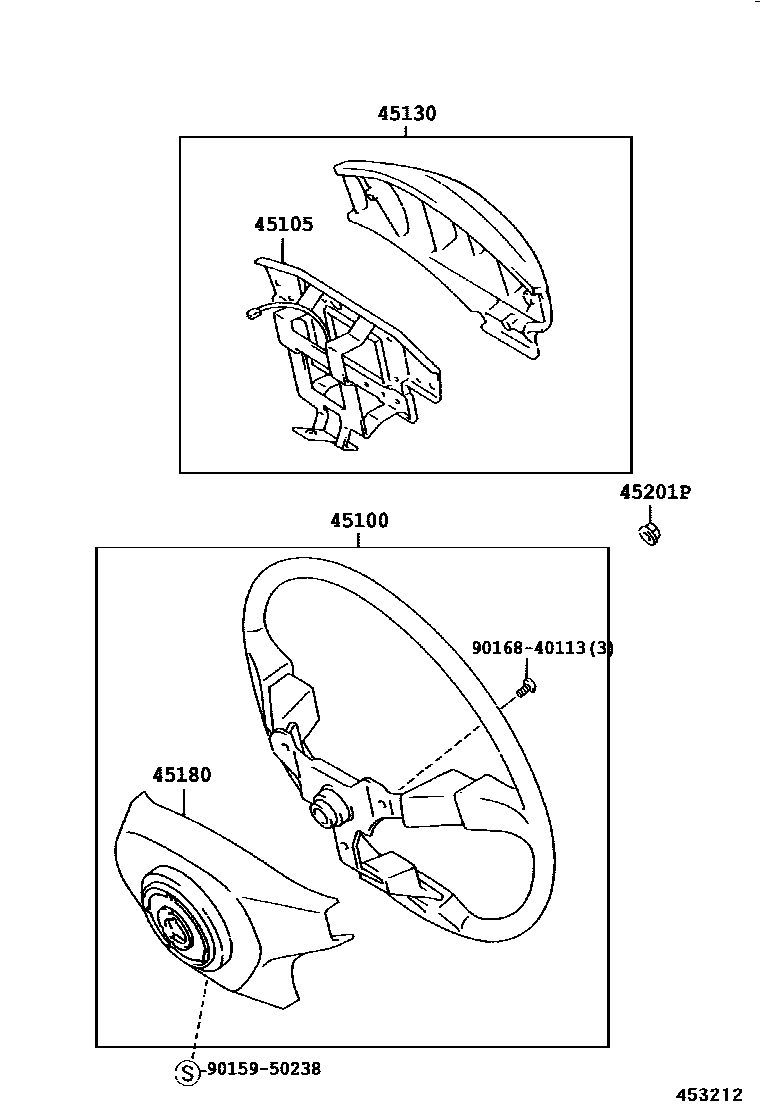

STEERING WHEEL
45100WHEEL ASSY, STEERING
4-SPOKE,LEATHER,BLACK,TRIM1#
4-SPOKE,LEATHER,SANDAL WOOD,TRIM0#
3-SPOKE,URETHANE,BLACK,TRIM1#
3-SPOKE,URETHANE,SANDAL WOOD,TRIM0#
4-SPOKE,LEATHER,BLACK,TRIM1#
4-SPOKE,LEATHER,SANDAL WOOD,TRIM0#
main45100-58010-C0iGRJ120,KZJ120,RZJ120..GX..(4FC,5F)..ARL; LJ12#,RZJ12#,TRJ12#..GCC,GEN; RZJ125,TRJ125;LJ12#,RZJ120,TRJ120..GEN200209-200908
4-SPOKE,URETHANE,BLACK,TRIM1#; 4-SPOKE,URETHANE,SRS AIR BAG-DRIVER & PASSENGER & SIDE & CURTAIN,BLACK,TRIM1#; 4-SPOKE,URETHANE,SRS AIR BAG-DRIVER & PASSENGER,BLACK,TRIM1#
main45100-58010-E1iGRJ120,KZJ120,RZJ120..GX..(4FC,5F)..ARL; LJ12#,RZJ12#,TRJ12#..GCC,GEN; RZJ125,TRJ125;LJ12#,RZJ120,TRJ120..GEN200209-200908
4-SPOKE,URETHANE,SANDAL WOOD,TRIM0#; 4-SPOKE,URETHANE,SRS AIR BAG-DRIVER & PASSENGER & SIDE & CURTAIN,SANDAL WOOD,TRIM0#; 4-SPOKE,URETHANE,SRS AIR BAG-DRIVER & PASSENGER,SANDAL WOOD,TRIM0#
4-SPOKE,WOOD&LEATHER,LEATHER & BLACK WOOD STEERING PACKAGE&CRUISE CONTROL-WITH,BLACK,TRIM1#; 4-SPOKE,WOOD&LEATHER,LEATHER & BLACK WOOD STEERING PACKAGE&SRS AIR BAG-DRIVER & PASSENGER & SIDE & CURTAIN,BLACK,TRIM1#; 4-SPOKE,WOOD&LEATHER,LEATHER & BLACK WOOD STEERING PACKAGE&SRS AIR BAG-DRIVER & PASSENGER,BLACK,TRIM1#
4-SPOKE,WOOD&LEATHER,LEATHER & BLACK WOOD STEERING PACKAGE&CRUISE CONTROL-WITH,SANDAL WOOD,TRIM0#; 4-SPOKE,WOOD&LEATHER,LEATHER & BLACK WOOD STEERING PACKAGE&SRS AIR BAG-DRIVER & PASSENGER & SIDE & CURTAIN,SANDAL WOOD,TRIM0#; 4-SPOKE,WOOD&LEATHER,LEATHER & BLACK WOOD STEERING PACKAGE&SRS AIR BAG-DRIVER & PASSENGER,SANDAL WOOD,TRIM0#
45105PLATE SUB-ASSY, HORN BUTTON CONTACT, NO.1
45130BUTTON ASSY, HORN
main45130-35420-C0supersedes 45130-43010-C0iGRJ12#,KZJ120,LJ12#,RZJ12#,TRJ12#..GCC,GEN; GRJ120,KZJ120,RZJ120..ARL; RZJ120,TRJ120..GEN;GRJ12#,KZJ120,LJ12#,RZJ125,TRJ125..GCC,GEN200209-200504
BLACK,TRIM1#; SRS AIR BAG-DRIVER & PASSENGER & SIDE & CURTAIN,BLACK,TRIM1#; SRS AIR BAG-DRIVER & PASSENGER,BLACK,TRIM1#
main45130-35420-E0supersedes 45130-43010-E1iGRJ12#,KZJ120,LJ12#,RZJ12#,TRJ12#..GCC,GEN; GRJ120,KZJ120,RZJ120..ARL; RZJ120,TRJ120..GEN;GRJ12#,KZJ120,LJ12#,RZJ125,TRJ125..GCC,GEN200209-200504
SANDAL WOOD,TRIM0#; SRS AIR BAG-DRIVER & PASSENGER & SIDE & CURTAIN,SANDAL WOOD,TRIM0#; SRS AIR BAG-DRIVER & PASSENGER,SANDAL WOOD,TRIM0#
main45130-35421-C0iGRJ12#,KZJ120,LJ12#,TRJ12#..GCC,GEN; KZJ120..ARL; TRJ120..GEN;GRJ12#,KZJ120,LJ12#,TRJ125..GCC,GEN200505-200908
BLACK,TRIM1#; SRS AIR BAG-DRIVER & PASSENGER & SIDE & CURTAIN,BLACK,TRIM1#; SRS AIR BAG-DRIVER & PASSENGER,BLACK,TRIM1#
SANDAL WOOD,TRIM0#
main45130-35431-C0iGRJ12#,KZJ120..GCC,GEN; GRJ120,KDJ120..ARL; GRJ120,KZJ120..GEN; KZJ120..4FC..ARL; KZJ120..ARL200707-200908
BLACK,TRIM1#; SRS AIR BAG-DRIVER & PASSENGER & SIDE & CURTAIN&AUDIO(FOR OVERSEAS MARKET)-AM/FM/MW/CDCHANGER 6SP,BLACK,TRIM1#; SRS AIR BAG-DRIVER & PASSENGER & SIDE & CURTAIN&AUDIO(FOR OVERSEAS MARKET)-AM/FM/SW1/SW2/CDCHANGER 6SP,BLACK,TRIM1#; SRS AIR BAG-DRIVER & PASSENGER&AUDIO(FOR OVERSEAS MARKET)-AM/FM/MW/CDCHANGER 6SP,BLACK,TRIM1#; SRS AIR BAG-DRIVER & PASSENGER&AUDIO(FOR OVERSEAS MARKET)-AM/FM/SW1/SW2/CDCHANGER6SP,BLACK,TRIM1#; W(*LEP1) & LEATHER SEAT PACKAGE&AUDIO(FOR OVERSEAS MARKET)-AM/FM/CASETTE/CDCHANGER6SP,BLACK,TRIM1#; W(*LEP1)&AUDIO(FOR OVERSEAS MARKET)-AM/FM/CASETTE/CDCHANGER 6SP,BLACK,TRIM1#; W(*LEP2)&AUDIO(FOR OVERSEAS MARKET)-AM/FM/CASETTE/CDCHANGER 6SP,BLACK,TRIM1#
main45130-35431-E0iGRJ12#,KZJ120..GCC,GEN; GRJ120,KDJ120..ARL; GRJ120,KZJ120..GEN; KZJ120..4FC..ARL; KZJ120..ARL200707-200908
SANDAL WOOD,TRIM0#; SRS AIR BAG-DRIVER & PASSENGER & SIDE & CURTAIN&AUDIO(FOR OVERSEAS MARKET)-AM/FM/MW/CDCHANGER 6SP,SANDAL WOOD,TRIM0#; SRS AIR BAG-DRIVER & PASSENGER & SIDE & CURTAIN&AUDIO(FOR OVERSEAS MARKET)-AM/FM/SW1/SW2/CDCHANGER 6SP,SANDAL WOOD,TRIM0#; SRS AIR BAG-DRIVER & PASSENGER&AUDIO(FOR OVERSEAS MARKET)-AM/FM/MW/CDCHANGER 6SP,SANDAL WOOD,TRIM0#; SRS AIR BAG-DRIVER & PASSENGER&AUDIO(FOR OVERSEAS MARKET)-AM/FM/SW1/SW2/CDCHANGER6SP,SANDAL WOOD,TRIM0#; W(*LEP1) & LEATHER SEAT PACKAGE&AUDIO(FOR OVERSEAS MARKET)-AM/FM/CASETTE/CDCHANGER6SP,SANDAL WOOD,TRIM0#; W(*LEP1)&AUDIO(FOR OVERSEAS MARKET)-AM/FM/CASETTE/CDCHANGER 6SP,SANDAL WOOD,TRIM0#; W(*LEP2)&AUDIO(FOR OVERSEAS MARKET)-AM/FM/CASETTE/CDCHANGER 6SP,SANDAL WOOD,TRIM0#
AUDIO(FOR OVERSEAS MARKET)-05EMV 9SP W(BLUETOOTH),BLACK,TRIM1#
AUDIO(FOR OVERSEAS MARKET)-05EMV 9SP W(BLUETOOTH),SANDAL WOOD,TRIM0#
45180COVER SUB-ASSY, STEERING WHEEL
BLACK,TRIM1#
SANDAL WOOD,TRIM0#
45201PNUT, STEERING WHEEL SET
9015950238
main90159-50238
9016840113
main90168-40113
7 parts on this diagram · 2 diagrams in section
