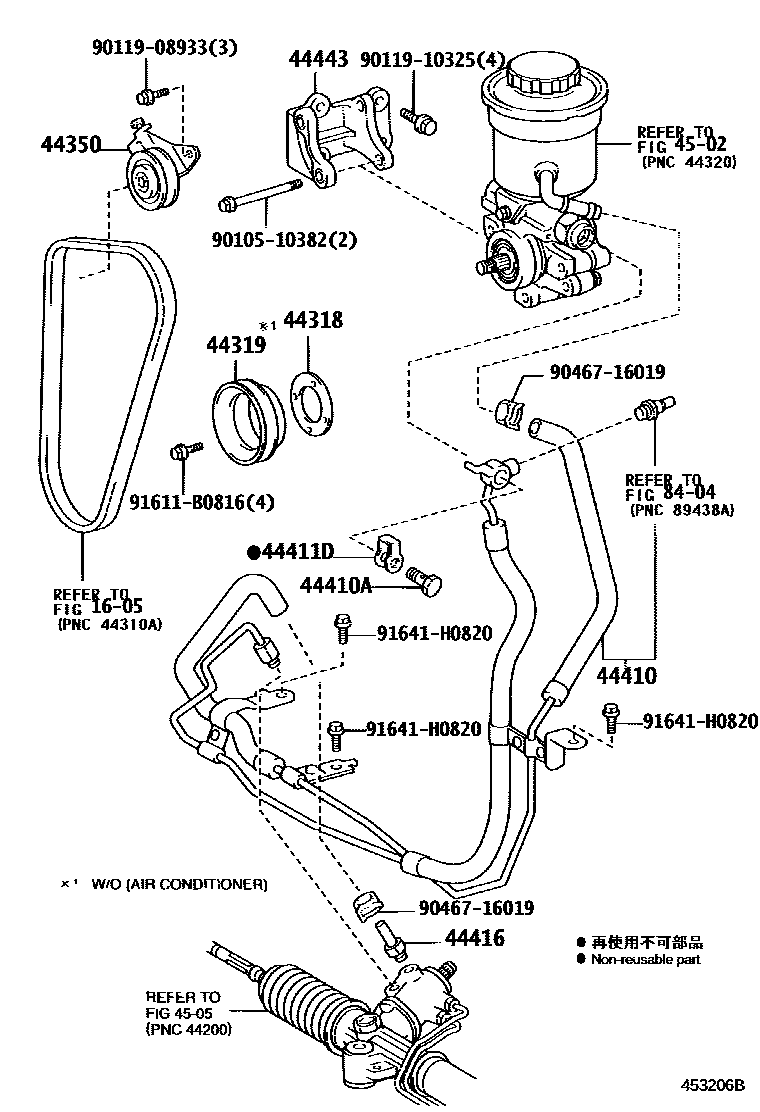

POWER STEERING TUBE

0001 1 0002 1 0003 1 0004 1 0005 1 0006 1 0007 1 0008 1 0009 1 0010 1

1605V-BELT

→ Go to FIG 16-05

44318SPACER, VANE PUMP DRIVE PULLEY

main44318-26010iLJ12#200209-200301

main44318-26020iRZJ12#..GCC,GEN200209-200408

44319PULLEY, VANE PUMP DRIVE

main44319-22010iLJ12#200209

main44319-34010iRZJ12#200209-200408

44350PULLEY ASSY, POWER STEERING IDLE

main44350-34010iRZJ12#200209-200408

44410TUBE ASSY, PRESSURE FEED

main44410-35690iGRJ12#..LHD..VX200301-200507

main44410-35691iGRJ12#..GCC,GEN200508-200908

main44410-35710iRZJ120..RHD200209-200408

main44410-35720iKZJ120..ARL200209-200507

main44410-35721iKDJ120,KZJ120..ARL200508-200908

main44410-35730iKZJ120..GEN200209-200507

main44410-35731iKZJ120..GEN200508-200908

main44410-35750iTRJ120..RHD200408-200507

main44410-35751iTRJ120..RHD200508-200908

main44410-60550iGRJ120..ARL200301-200507

main44410-60551iGRJ120..ARL200508-200908

main44410-60560iRZJ12#..LHD200209-200408

main44410-60570iLJ120..RHD200209-200507

main44410-60571iLJ120..RHD200508-200908

main44410-60580iLJ12#..LHD200209-200507

main44410-60581iLJ12#..LHD200508-200908

main44410-60610iTRJ12#..LHD200408-200507

main44410-60611iTRJ12#..LHD200508-200908

main44410-0G011supersedes 44410-35691iGRJ120..CHI200507

MADE IN CHINA

44410ABOLT, UNION(FOR PRESSURE FEED TUBE)

main90401-16034iGRJ12#,KDJ120,KZJ120,LJ12#,RZJ12#,TRJ12#..ARL,GCC,GEN200209-200908

44411DGASKET(FOR PRESSURE FEED HOSE)

main44327-30040iGRJ12#,KDJ120,KZJ120,LJ12#,RZJ12#,TRJ12#..ARL,GCC,GEN200209-200908

44416TUBE, RETURN(FOR STEERING GEAR OUTLET)

main44416-26080iGRJ12#,KZJ120,LJ12#,RZJ12#,TRJ12#..ARL,GCC,GEN200209-200507

main44416-60370iGRJ12#,KDJ120,KZJ120,LJ12#,TRJ12#..ARL,GCC,GEN200508-200908

44443BRACKET, PUMP

main44443-34010iRZJ12#200209-200408

main44443-60110iLJ12#200209

4502VANE PUMP & RESERVOIR (POWER STEERING)

→ Go to FIG 45-02

8404ELECTRONIC FUEL INJECTION SYSTEM

→ Go to FIG 84-04

9010510382

main90105-10382

9011908933

main90119-08933

9011910325

main90119-10325

9046716019

main90467-16019

91611B0816

main91611-B0816

91641H0820

main91641-H0820

17 parts on this diagram · 10 diagrams in section
