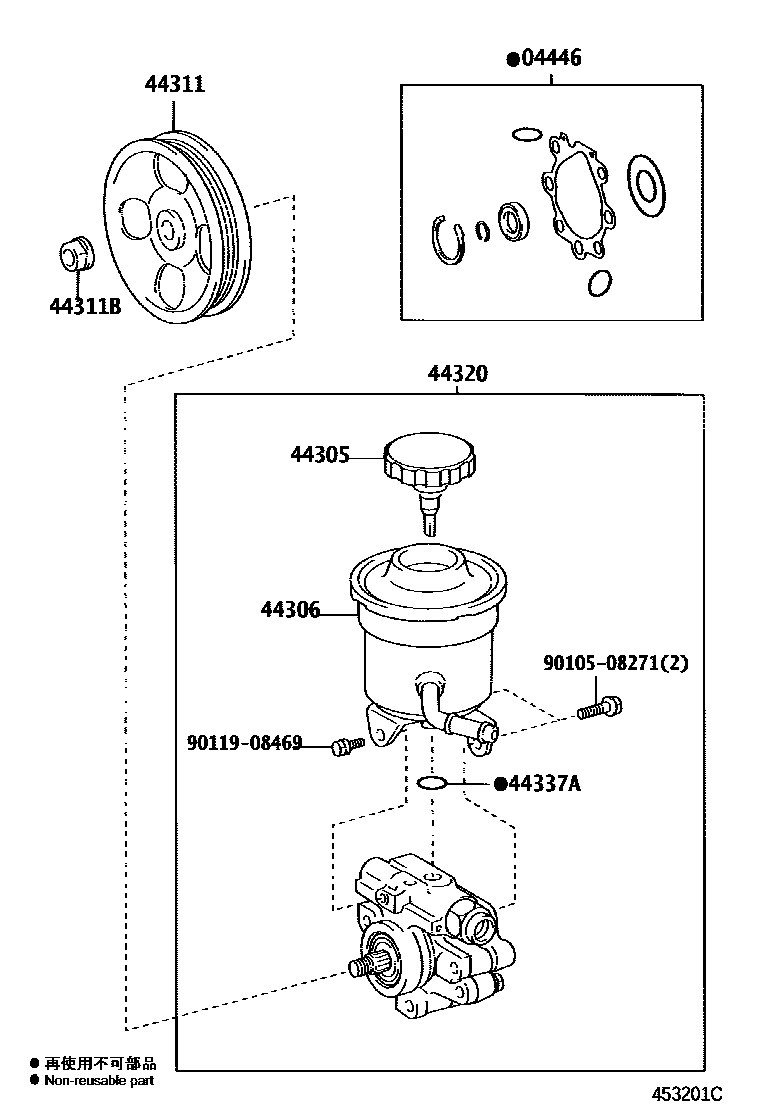

VANE PUMP & RESERVOIR (POWER STEERING)

0001 1 0002 1 0003 1 0004 1 0005 1

04446GASKET KIT, POWER STEERING PUMP

main04446-30120iRZJ12#200209-200408

main04446-32050iGRJ120..CHI200309

main04446-35070iKDJ120,KZJ120200209

main04446-53030iLJ12#200209

44305CAP SUB-ASSY, VANE PUMP OIL RESERVOIR

main44305-22040iRZJ12#,TRJ12#200209-200801

main44305-22060iTRJ12#200802

main44305-24030iKDJ120,KZJ120200209-200709

main44305-24050iKDJ120,KZJ120200710

main44305-28030iGRJ120..CHI200309-200801

main44305-28060iGRJ12#,LJ12#..ARL,GCC,GEN; GRJ120..CHI200802

44306RESERVOIR SUB-ASSY, VANE PUMP OIL

main44306-25060iTRJ12#200408

main44306-35250iRZJ12#200209-200408

44311PULLEY, VANE PUMP

main44311-26060iLJ12#200209

main44311-35070iRZJ12#200209-200408

44311BNUT(FOR VANE PUMP PULLEY)

main90178-12003iRZJ12#200209-200408

44320PUMP ASSY, VANE

main44310-35660iGRJ120..CHI200309-200409

main44310-35690iKDJ120,KZJ120200209

main44310-35710iTRJ12#200408

main44320-35630iRZJ12#200209-200408

main44320-60360iLJ12#200209

main44310-0G010supersedes 44310-35660iGRJ120..CHI200507

MADE IN CHINA

44337UNION, POWER STEERING SUCTION PORT

main44337-32110iGRJ120..5FC..CHI200309

main44337-35070iLJ12#200209

main44337-42010iKDJ120,KZJ120200209

44337ARING, O(FOR POWER STEERING SUCTION PORT)

main90301-11016iLJ12#,RZJ12#200209

main90301-11020iGRJ12#,KDJ120,KZJ120,TRJ12#..ARL,GCC,GEN200209

9010508271

main90105-08271

9011908469

main90119-08469

10 parts on this diagram · 5 diagrams in section
