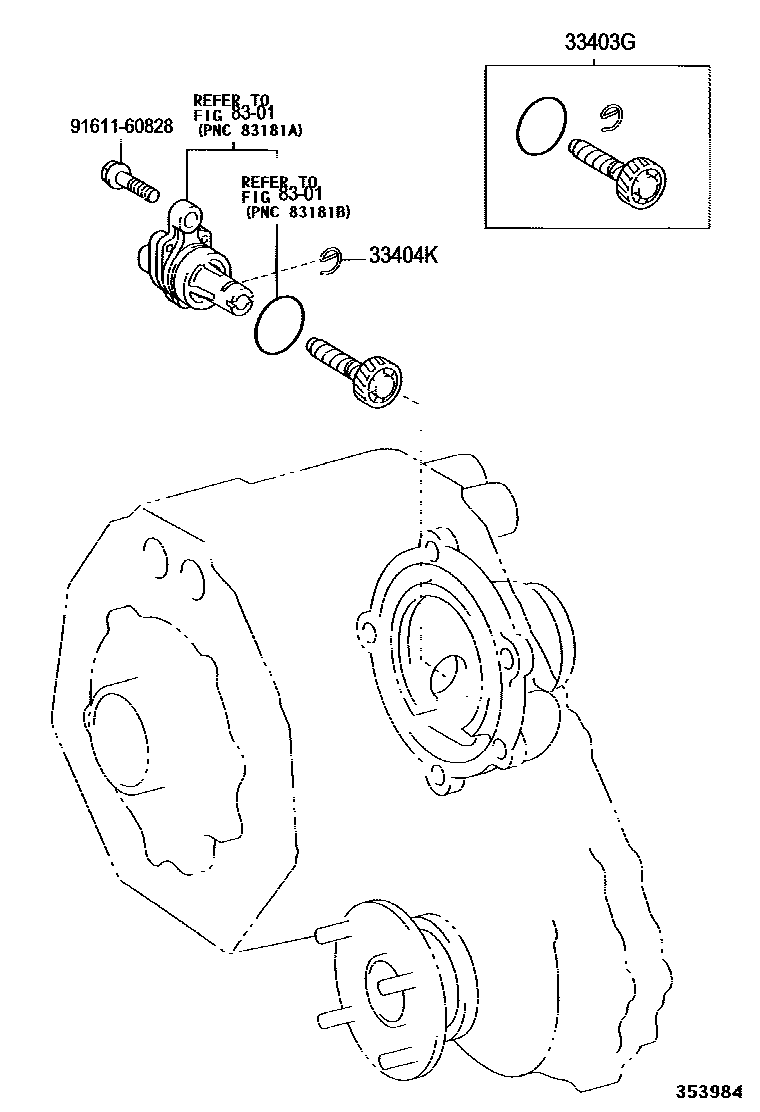

SPEEDOMETER DRIVEN GEAR (ATM)
33403GGEAR SUB-ASSY, SPEEDOMETER DRIVEN (ATM)
N=31,MARK 31:10
N=30,MARK 30:11
N=29,MARK 29:11
N=28,MARK 28:11
33404KCLIP (FOR ATM SPEEDOMETER SHAFT SLEEVE)
main90468-12005iGRJ12#,KDJ120,KZJ120,RZJ12#,TRJ12#..ATM..(ARL,GCC,GEN); KZJ120..4FC..ARL; KZJ120..4FC..ARL;GRJ12#,KDJ120..ATM..(ARL,GCC,GEN)200209
ABS-W(ABS& VSC & ACTIVE TRACTION CONTROL); ABS-W(ABS& VSC & ACTIVE TRACTION CONTROL)&TIRE & DISC WHEEL-265/65R17 ALMUI; ABS-W(ABS& VSC & ACTIVE TRACTION CONTROL)&TIRE & DISC WHEEL-265/65R17 STEEL
8301METER
9161160828
main91611-60828
4 parts on this diagram · 1 diagram in section
