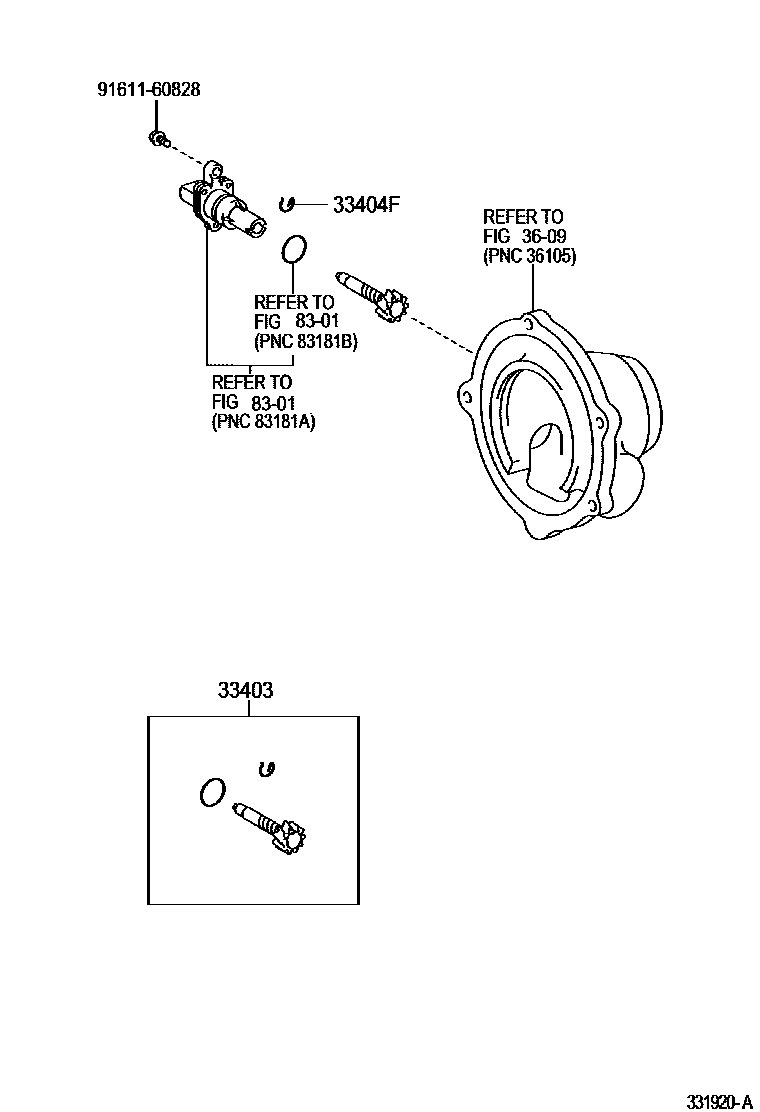

SPEEDOMETER DRIVEN GEAR (MTM)

33403GEAR SUB-ASSY, SPEEDOMETER DRIVEN (MTM)

main33403-39355iLJ12#,RZJ12#,TRJ12#..5F200209

N=31,MARK 31:10

main33403-39365iGRJ120,KZJ120..5F200209

N=30,MARK 30:11

main33403-39515iKDJ120..6F200608

N=29,MARK 29:11

main33403-39585iGRJ120..6F200408

N=28,MARK 28:11

33404FCLIP (FOR MTM SPEEDOMETER SHAFT SLEEVE)

main90468-12005iGRJ120,KDJ120,KZJ120,LJ12#,RZJ12#,TRJ12#..MTM200209

3609TRANSFER CASE & EXTENSION HOUSING

→ Go to FIG 36-09

8301METER

→ Go to FIG 83-01

9161160828

main91611-60828

5 parts on this diagram · 1 diagram in section
