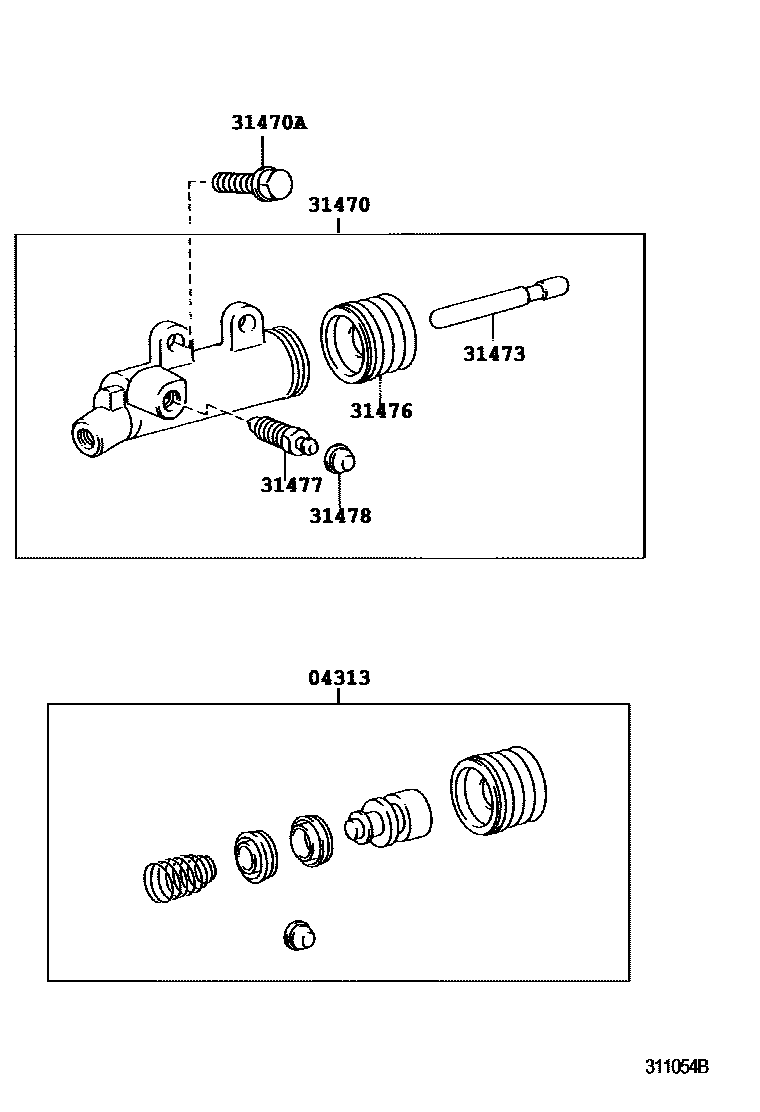

CLUTCH RELEASE CYLINDER

0001 1 0002 1 0003 1 0004 1 0005 1 0006 1

04313CYLINDER KIT, CLUTCH RELEASE

main04313-53040iKDJ120..6F200608

main04313-60150iGRJ120..5F200301-200408

main04313-60170iKZJ120..5F200209-200801

main04313-60180iGRJ120..6F200408

31470CYLINDER ASSY, CLUTCH RELEASE

main31470-35190iTRJ12#..5F200408

main31470-60300iKZJ120..5F200209

main31470-60310iRZJ12#..5F200209-200408

main31470-60320iLJ12#200209

main31470-60330iGRJ120..5F200301-200408

main31470-60340iKDJ120..6F200608

main31470-60360iGRJ120..6F200408

31470ABOLT(FOR CLUTCH RELEASE CYLINDER SETTING)

main91611-B0825×2iGRJ120,KDJ120,KZJ120,LJ12#,RZJ12#,TRJ12#..MTM200209

*8-1.25PX25-25

31473ROD, CLUTCH RELEASE CYLINDER PUSH, NO.1

main31473-14030iKDJ120..6F200608

main31473-20031iKZJ120,LJ12#..5F200209

main31473-22010iRZJ12#..5F200209-200408

main31473-22030iTRJ12#..5F200408

main31473-60160iGRJ120..MTM200301

31476BOOT, CLUTCH RELEASE CYLINDER

main31476-22010iKDJ120,KZJ120,LJ12#,RZJ12#,TRJ12#..MTM200209

main31476-36010iGRJ120..MTM200301

31477PLUG, BLEEDER(FOR RELEASE CYLINDER)

main47547-12010iGRJ120,KDJ120,KZJ120,LJ12#,RZJ12#,TRJ12#..MTM200209

31478CAP, BLEEDER PLUG(FOR RELEASE CYLINDER)

main31478-30010iGRJ120,KDJ120,KZJ120,LJ12#,RZJ12#,TRJ12#..MTM200209

7 parts on this diagram · 6 diagrams in section
