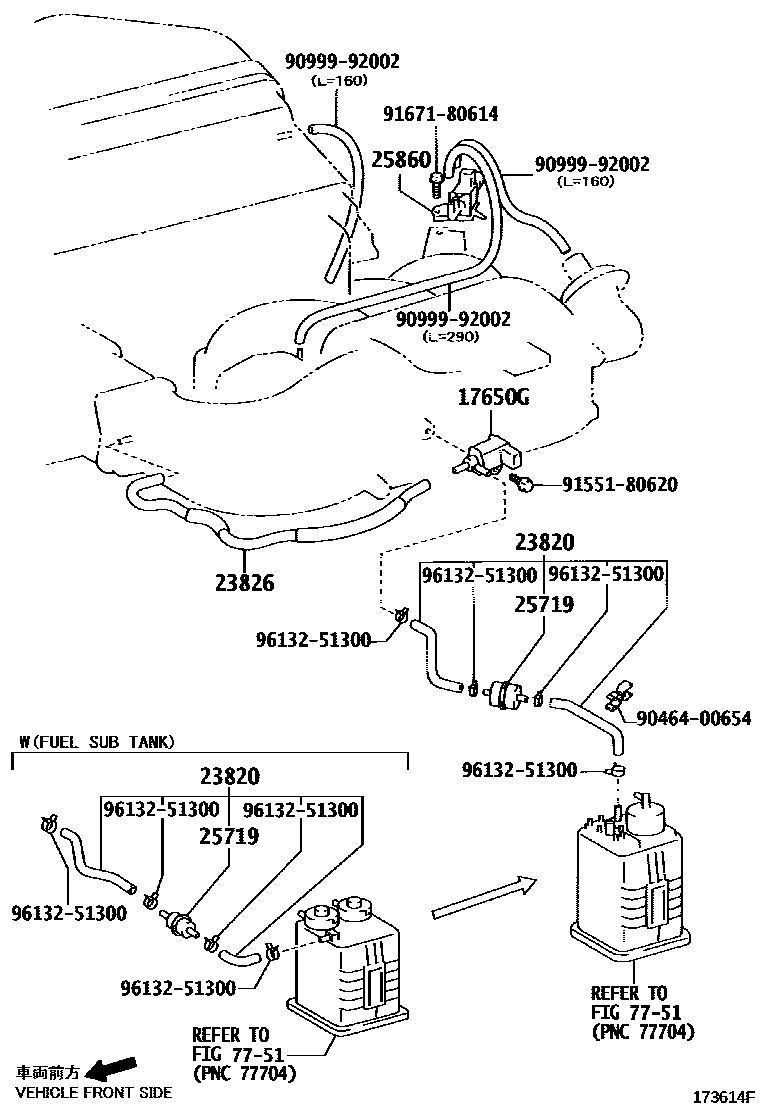

VACUUM PIPING
17650GVALVE, DUTY VACUUM SWITCHING
23820HOSE ASSY, FUEL VAPOR FEED
main23820-75090i3RZFE..RZJ12#..ARL,GCC; 3RZFE..RZJ12#..LHD..5F..GEN; 3RZFE..RZJ12#..LHD..GEN200209-200408
OTHER CO IN S.AMERICA & NEW CALEDONIA; UNLEADED GASOLINE SPEC; VIETNAM SPEC
main23820-75091i2TRFE..TRJ12#..GCC; 2TRFE..TRJ12#..LHD..5F..GEN; 2TRFE..TRJ12#..LHD..GEN200408-200908
OTHER CO IN S.AMERICA & NEW CALEDONIA; UNLEADED GASOLINE SPEC; VIETNAM SPEC
FUEL TANK-W(FUEL SUB TANK) 180L
23826HOSE, FUEL VAPOR FEED, NO.1
25719TANK, VACUUM SURGE
main25719-50040i3RZFE..RZJ12#..ARL,GCC; 3RZFE..RZJ12#..LHD..5F..GEN; 3RZFE..RZJ12#..LHD..GEN200209-200408
OTHER CO IN S.AMERICA & NEW CALEDONIA; UNLEADED GASOLINE SPEC; VIETNAM SPEC
25860VALVE ASSY, VACUUM SWITCHING, NO.1
OTHER CO IN S.AMERICA & NEW CALEDONIA; UNLEADED GASOLINE SPEC; VIETNAM SPEC
7751FUEL TANK & TUBE
9046400654
main90464-00654
9099992002
main90999-92002
9155180620
main91551-80620
9167180614
main91671-80614
9613251300
main96132-51300
11 parts on this diagram · 6 diagrams in section
