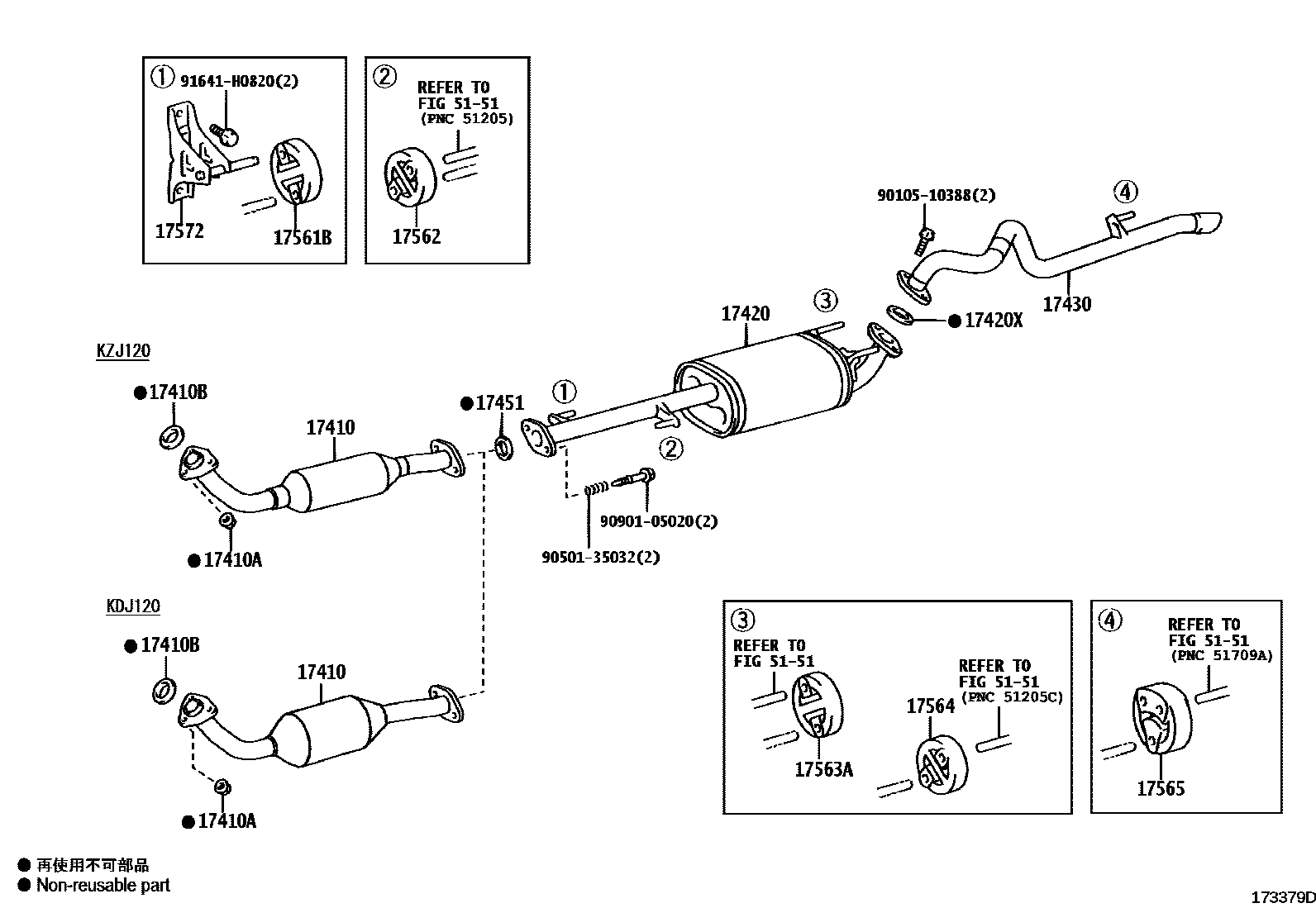

EXHAUST PIPE
17410PIPE ASSY, EXHAUST, FRONT
*114=TOYOTA/AG3/Y
*114=TOYOTA/T97/Y
main17410-75360i3RZFE..RZJ12#..GCC; 3RZFE..RZJ12#..LHD..5F..GEN; 3RZFE..RZJ12#..LHD..GEN200209-200408
OTHER CO IN S.AMERICA & NEW CALEDONIA; UNLEADED GASOLINE SPEC; VIETNAM SPEC
main17410-75500i2TRFE..TRJ12#..GCC; 2TRFE..TRJ12#..LHD..5F..GEN; 2TRFE..TRJ12#..LHD..GEN200408-200908
OTHER CO IN S.AMERICA & NEW CALEDONIA,TYPE B:REFER ILLUST.; TYPE B:REFER ILLUST.; UNLEADED GASOLINE SPEC,TYPE B:REFER ILLUST.; VIETNAM SPEC,TYPE B:REFER ILLUST.
TYPE A:REFER ILLUST.
*114=TOYOTA/T37/Y,CATALYTIC CONVERTER-MARK(PNC17410=T27,17450B=T26),EURO4 SPEC,(L)
*114=TOYOTA/T37/Y,CATALYTIC CONVERTER-MARK(PNC17410=T27,17450B=T26),EURO4 SPEC,(J)
CHINA SPEC&EU RULES+CHAINESE COUTION
17410ANUT, EXHAUST PIPE SET STUD BOLT
17410BGASKET, EXHAUST PIPE
17420PIPE ASSY, EXHAUST, CENTER
(L)
CHINA SPEC
17420XGASKET, EXHAUST PIPE, CENTER
17430PIPE ASSY, EXHAUST, TAIL
(L)
17451GASKET, EXHAUST PIPE
17561BSUPPORT, EXHAUST PIPE, NO.1
(L)
(L)
17562SUPPORT, EXHAUST PIPE, NO.2
(L)
(L)
(J)
(J)
17563ASUPPORT, EXHAUST PIPE, NO.3
(L)
(L)
(J)
17564SUPPORT,EXHAUST PIPE, NO.4
(L)
(L)
(J)
17565SUPPORT, EXHAUST PIPE, NO.5
(L)
(J)
17572BRACKET, EXHAUST PIPE NO.1 SUPPORT
5151FRAME
9010510388
main90105-10388
9050135032
main90501-35032
9090105020
main90901-05020
91641H0820
main91641-H0820
18 parts on this diagram · 7 diagrams in section
