V-BELT

Parts diagram

1106TIMING GEAR COVER & REAR END PLATE

→ Go to FIG 11-06

1601WATER PUMP

→ Go to FIG 16-01

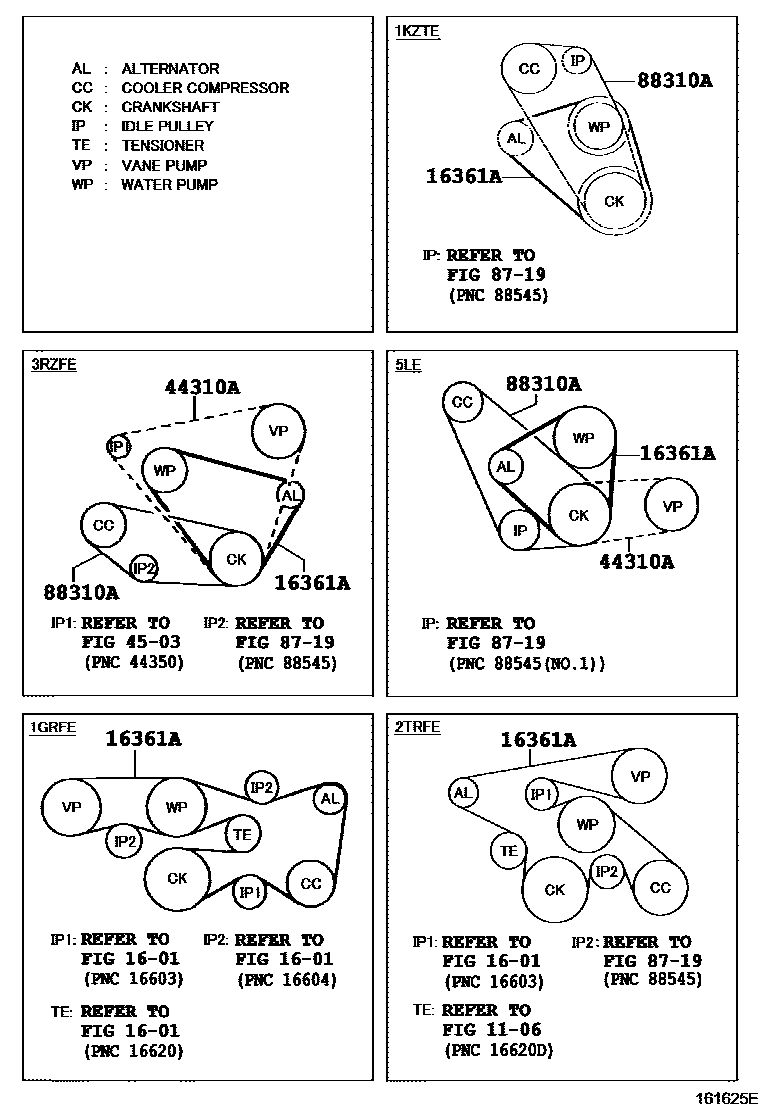

16361ABELT, V(FOR FAN & ALTERNATOR)

main90080-92016i200209-200908

(L),MITSUBOSHI

main90080-92017i200209-200908

(L),BANDO

main90916-02211i200209-200908

(J)

main90916-02336i200209-200408

main90916-02385i200209-200908

main90916-02511supersedes 90916-02510i200608-200908

AIR CONDITIONER-DUAL AUTO; AIR CONDITIONER-SINGLE AUTO; AIR CONDITIONER-SINGLE MANUAL AFTER SET

main90916-02571i200309

main99367-D2120i200301-200309

main90916-02640i200408-200908

AIR CONDITIONER-DUAL AUTO; AIR CONDITIONER-DUAL MANUAL; AIR CONDITIONER-SINGLE AUTO; AIR CONDITIONER-SINGLE MANUAL

44310ABELT, V(FOR VANE PUMP)

main99332-00825i200209

L=825

main99364-31110i200209-200408

L=1110

4503POWER STEERING TUBE

→ Go to FIG 45-03

8719HEATING & AIR CONDITIONING - COMPRESSOR

→ Go to FIG 87-19

88310ABELT, V (COOLER COMPRESSOR TO CRANKSHAFT PULLEY), NO.1

main90916-02390i200209-200908

L=1165; L=1165,AIR CONDITIONER-DUAL AUTO; L=1165,AIR CONDITIONER-SINGLE AUTO; L=1165,AIR CONDITIONER-SINGLE MANUAL AFTER SET

main99332-11210i200209-200908

L=1210

main99364-30940i200209-200408

L=940,AIR CONDITIONER-DUAL AUTO; L=940,AIR CONDITIONER-DUAL MANUAL; L=940,AIR CONDITIONER-SINGLE AUTO; L=940,AIR CONDITIONER-SINGLE MANUAL; L=940,AIR CONDITIONER-SINGLE MANUAL AFTER SET

7 parts on this diagram · 2 diagrams in section
